Main switchgear

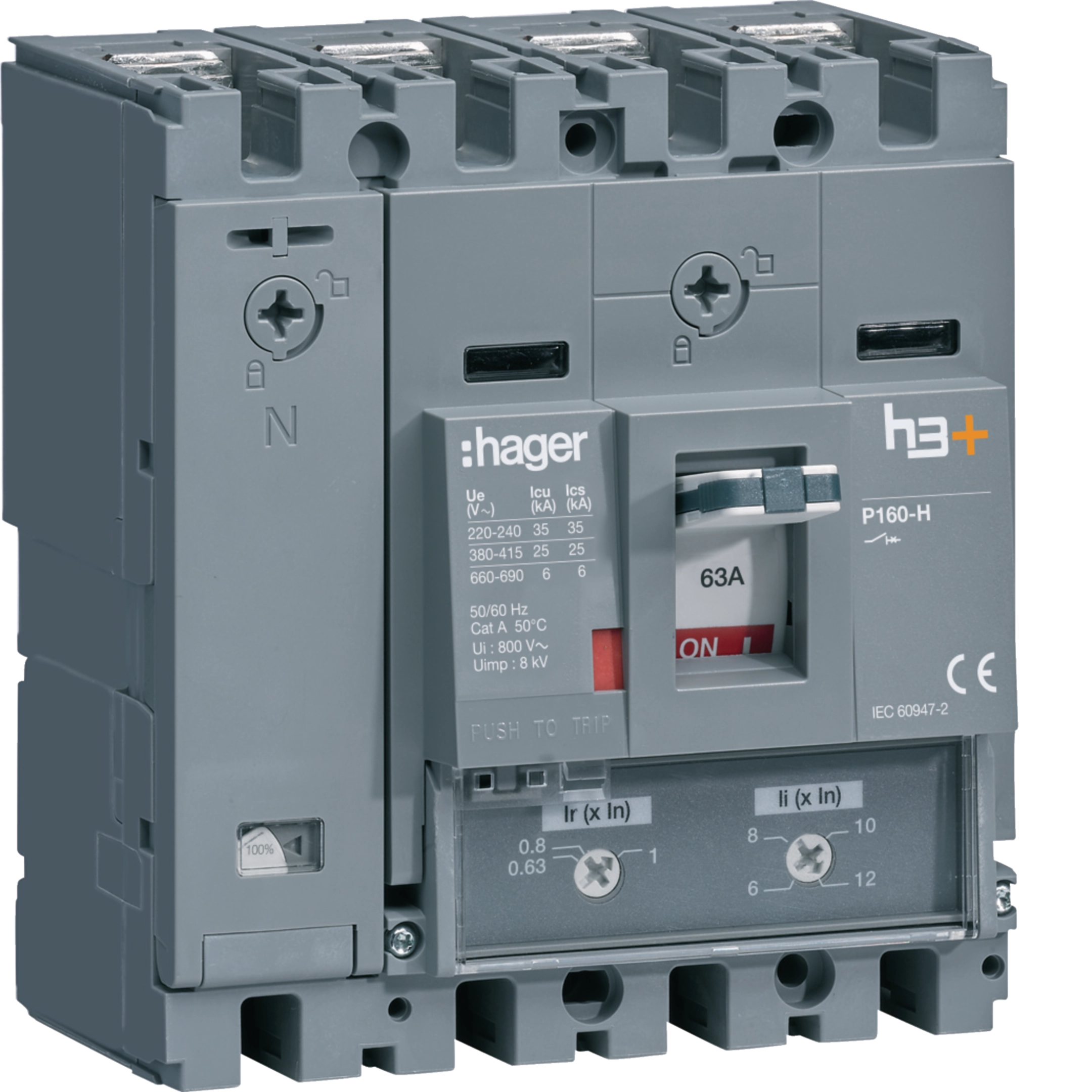

Moulded Case Circuit Breaker h3+ P160 TM ADJ 4P4D N0-100% 63A 25kA FTC HHS064DR

Name: HHS064DR
Brand: Hager
SKU: HHS064DR11

EAN-Nr.

3250613187552

Packaging

1 piece

Accessories
Technical characteristics
Environmental value
Documentations
More products

Complete your system

Auxiliaries contact block 4 products available
Shunt release 5 products available
Under voltage coil 8 products available
Handle with interlock for power breaker 1 products available
Chassis power breaker 2 products available
Terminal cover 5 products available

Technical characteristics

Rated current

63 A
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

25 kA
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-2

35 kA
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-2

35 kA
Rated service breaking capacity Ics under 400 V AC according to IEC 60947-2

25 kA
Rated current 10°C according to IEC 60947

87,10 A
Rated current 15°C according to IEC 60947

84,50 A
Rated current 20°C according to IEC 60947

81,70 A
Rated current 25°C according to IEC 60947

78,90 A
Rated current 30°C according to IEC 60947

76 A
Rated current at 35°C according to IEC 60947

73 A
Rated current at 40°C according to IEC 60947

69,80 A
Rated current 45°C according to IEC 60947

66,50 A
Rated current 50°C according to IEC 60947

63 A
Rated current 55°C according to IEC 60947

59,30 A
Rated current at 60°C according to IEC 60947

55,40 A
Rated current 65°C according to IEC 60947

51,10 A
Rated current 70°C according to IEC 60947

46,50 A

Number of poles

4
Control/operation element

Toggle
Device construction type

Fixed built-in
Neutral position

Left

Frequency

50 - 60 Hz

Rated impulse withstand voltage Uimp

8000 V
Rated insulation voltage Ui

800 V
Rated operational voltage Ue

220 - 690 V

Trip unit

TM A/A

Total power loss under IN

10,50 W

Electric endurance in number of cycles

10000
Number of mechanical operations

40000

Ingress Protection (IP) class

IP4X

Cross-section flexible conductor

6 - 70 mm²
Cross-section rigid conductor

6 - 95 mm²

Interlockable

Yes

Thermal protection knob setting xIN

0.63, 0.8, 1

Cable material

Copper, Aluminium

Compatible with RDC AOB

No
Suitable for DIN Rail

No
Suitable for distribution board

Yes

Height

130 mm
Width

120 mm
Depth

97 mm

Instantaneous protection (li): dial setting coefficient

6, 8, 10, 12

Mounting-/Connection Position

Front
Nominal tightening torque

6 - 6 Nm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
