Surge Protection Device 1P T2 TNC Uc 320V In 40kA Imax 100kA remote contact SPB100R
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Accessories/spare parts for surge protection power supply systems 2 products available
Technical properties
Architecture
-
Type of pole1P
Capacity
-
Number of modules1
Voltage
-
Rated operational voltage Ue240 - 415 V
-
Continuous operating voltage Uc according to IEC 61643-1320 V
-
Voltage protection level Up according to IEC 61643-12 kV
-
Voltage protection level Up L-PE/N-PE according to IEC 61643-111,70 kV
-
Voltage protection level Up N-PE IEC 61643-111700 V
-
Voltage level Up L-N/PEN IEC 61643-112 kV
-
Overvoltage category according to IEC 60947-13
Electric current
-
Nominal discharge current In 8 - 20 µs L-N(PEN)/N-PE IEC 6164340 kA
-
Short-circuit current rating (Isccr)25 kA
-
Max. overcurrent protection device, parallel connection (fuse)250 A
-
Max. overcurrent protection device, series connection (fuse)80 A
-
Max. discharge (Imax) L-N(PEN)/ N-PE20 kA
Dimensions
-
Height96,8 mm
-
Width17,6 mm
-
Depth77,5 mm
-
Stripping length16 mm
Use conditions
-
Operating temperature-40 - 80 °C
-
Air humidity protection5 - 95%
-
Storage/transport temperature-40 - 80 °C
-
Degree of pollution according to IEC 60664 / IEC 60947-22
-
Max. altitude2000 m
Network configuration
-
Network typeTN-C, TT
-
Network TNNo
-
Network TN-CYes
-
Network TN-C-SNo
-
Network TN-SNo
-
Network TTYes
-
Network ITNo
-
Network DCNo
Equipment
-
With remote signalling contactYes
-
Nominal load current IL80 A
Connection
-
Cross-section of input and output with screws, for flexible conductors1,5 - 25,0 mm²
-
Cross-section of input and output with screws, for massive conductors1,5 - 35,0 mm²
-
Cross-section signal contact0,14 - 1,5 mm²
-
Number of conductors without earthing1
-
Cross-section flexible conductor1.5 - 25 mm²
-
Cross-section rigid conductor1.5 - 35 mm²
-
Connector/plug typeClamp
Standards
-
Requirement class IEC 61643T2
Frequency
-
Frequency50 - 60 Hz
Installation, mounting
-
Nominal tightening torque3 - 3 Nm
Configuration
-
With integrated protection fuseNo
Connectivity
-
Mounting typeDIN rail
-
Type of connectionScrew connection
Controls and indicators
-
With indicator lampYes
Functions
-
Suitable for additional system configurationNo
Fuse
-
Fuse characteristicsgG
Internal use only
-
Number of half modules of 17,5 mm2
Specific identificaton attributes for Protection
-
Filter Type productSPD
Materials
-
Product colourLight grey
-
RAL code7035
-
MaterialPolyamide (PA), Thermoplastic
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

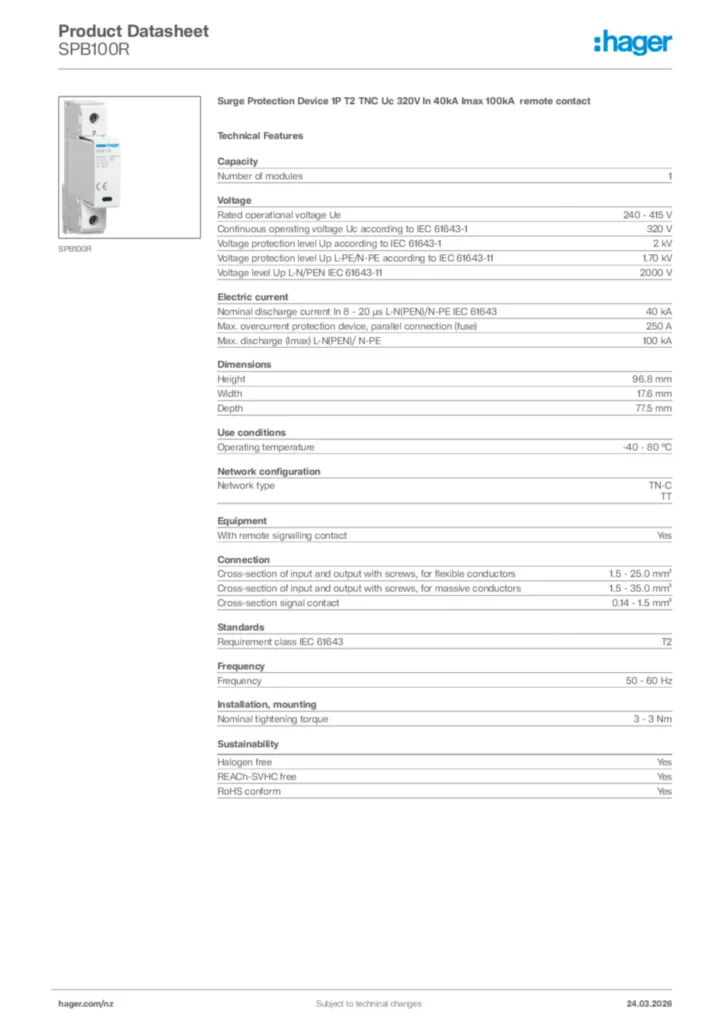

Hager Product data sheet SPB100R
