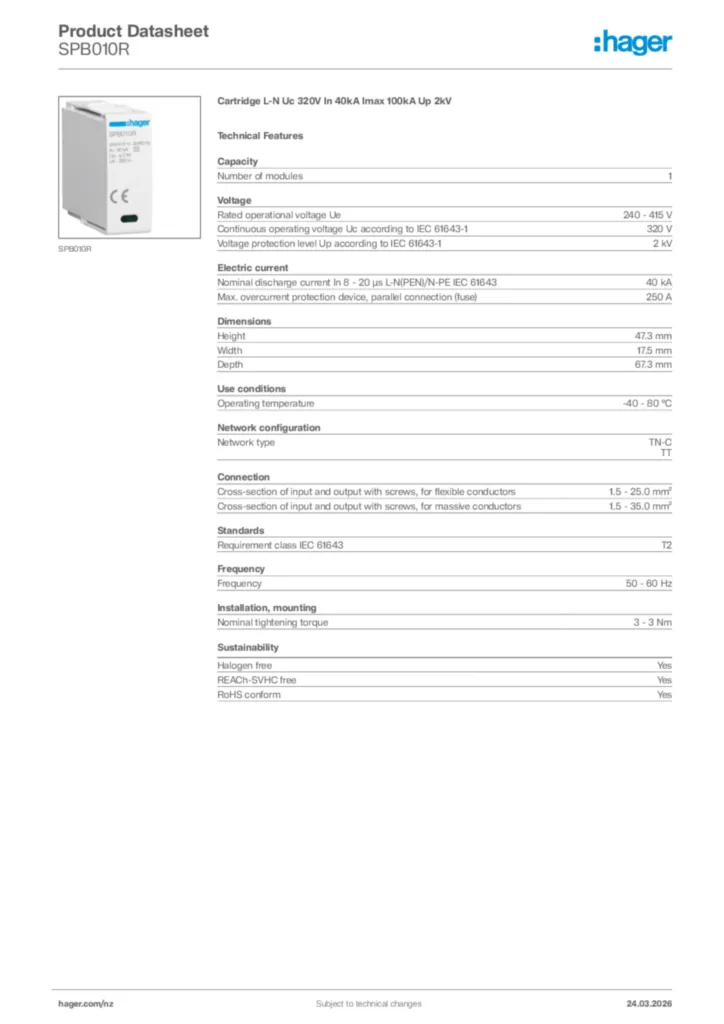

Cartridge L-N Uc 320V In 40kA Imax 100kA Up 2kV SPB010R
EAN
3250615515322
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Capacity
-
Number of modules1
Voltage
-
Rated operational voltage Ue240 - 415 V
-
Continuous operating voltage Uc according to IEC 61643-1320 V
-
Voltage protection level Up according to IEC 61643-12 kV
Electric current
-
Nominal discharge current In 8 - 20 µs L-N(PEN)/N-PE IEC 6164340 kA
-
Max. overcurrent protection device, parallel connection (fuse)250 A
Dimensions
-
Height47,3 mm
-
Width17,5 mm
-
Depth67,3 mm
Use conditions
-
Operating temperature-40 - 80 °C
Network configuration
-
Network typeTN-C, TT
Connection
-
Cross-section of input and output with screws, for flexible conductors1,5 - 25,0 mm²
-
Cross-section of input and output with screws, for massive conductors1,5 - 35,0 mm²
Standards
-
Requirement class IEC 61643T2
Frequency
-
Frequency50 - 60 Hz
Installation, mounting
-
Nominal tightening torque3 - 3 Nm
