SPB240R - Surge Protection Device 2P T2 TNS/TT Uc 275V In 20kA Imax 40kA remote contact
SPB240R - Surge Protection Device 2P T2 TNS/TT Uc 275V In 20kA Imax 40kA remote contact

Surge Protection Device 2P T2 TNS/TT Uc 275V In 20kA Imax 40kA remote contact SPB240R

EAN
3250615515483
Packaging
1 Piece

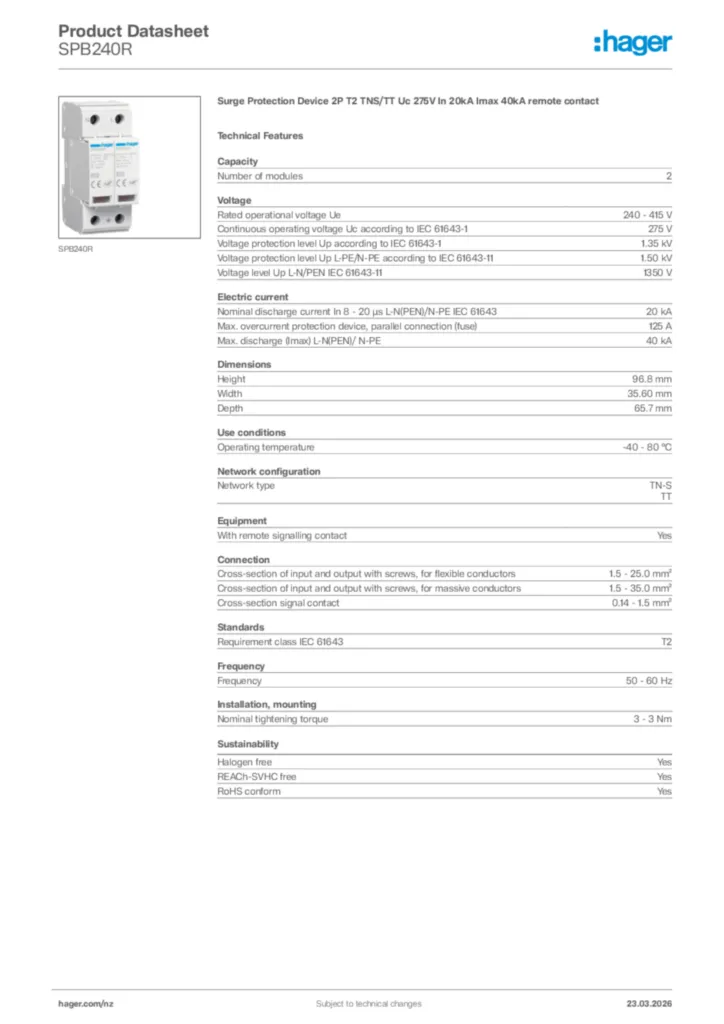

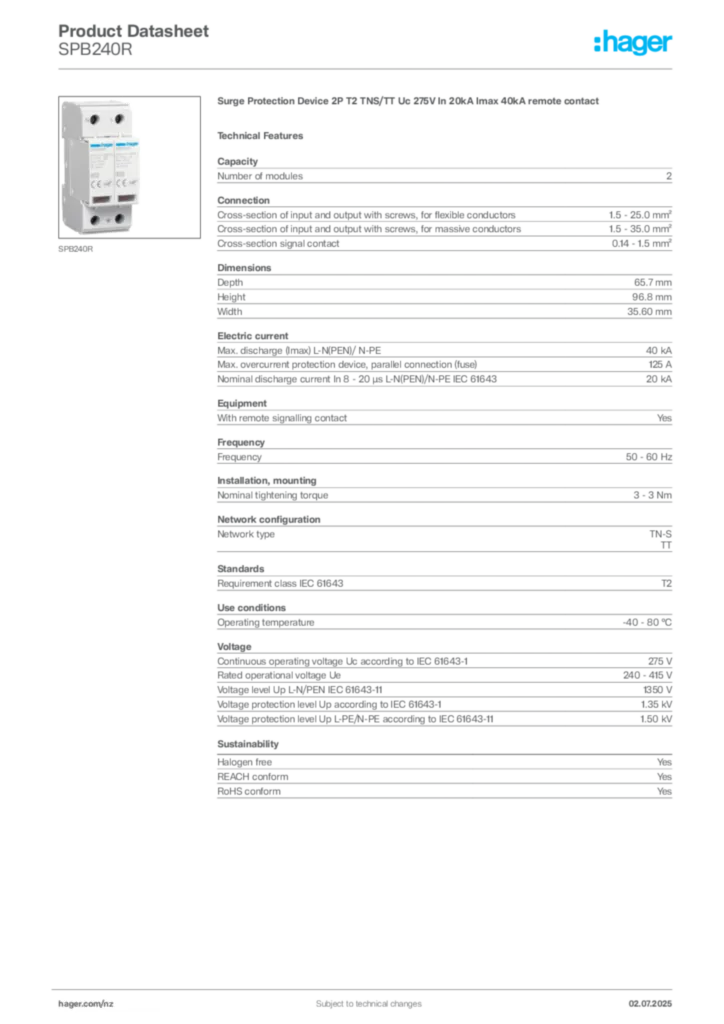

Technical properties

Configuration
  • Number of modules
    2
Controls and indicators
  • Indicator lamp
    Optic
Main electrical features
  • Rated operational voltage Ue
    240 / 415 V
  • Frequency
    50/60 Hz
  • Nominal discharge current (In) 8/20µs, IEC 61643)L-N(PEN)/ N-PE
    20 kA
Voltage
  • Maximum continuous operating voltage Uc
    275 V
  • Voltage protection level Up according to IEC61643-1
    1.35 kV
  • Voltage protection level Up L-PE/N-PE according to IEC61643-11
    1.5 kV
  • Voltage level Up L-N/PEN IEC61643-11
    1.35 kV
Electric current
  • Calibration of the protection upstream
    125 A
  • Max discharge (Imax) L-N(PEN)/ N-PE
    40 kA
Dimensions
  • Depth of installed product
    58.2 mm
  • Height of installed product
    89.8 mm
  • Width of installed product
    35.6 mm
Electrical specifications
  • Short-circuit breaking capacity (Isccr)
    25 kA
  • Signal contact Cross-sections
    0.14 / 1.5 mm²
  • Signal contact Current carrying capacity AC/DC
    3 / 1 A
  • Signal contact Voltage rating AC/DC
    250 / 30 V
Network configuration
  • Network type
    TT/TN-S
Installation, mounting
  • Tightening torque
    3
Connection
  • Connection cross-section of input and output with screws, for massive conductors
    1.5 / 35 mm²
  • Connection cross section of access and exit with screws, for flexible conductor
    1.5 / 25 mm²
Standards
  • Approvals
    KEMA, NF
  • Test class IEC61643-11 / VDE0675-6-11
    T2
  • European directive WEEE
    concerned
Safety
  • REACH conform
    Yes
  • RoHS conform
    Yes
  • Halogen free
    Yes
Use conditions
  • Operating temperature
    -40…80 °C
