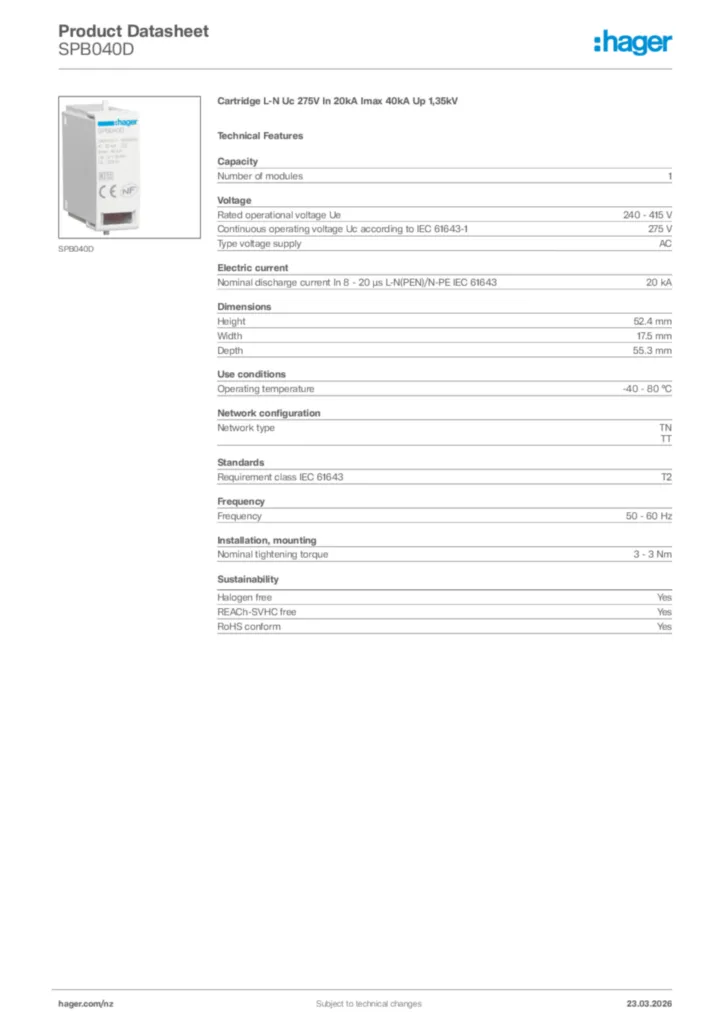

Cartridge L-N Uc 275V In 20kA Imax 40kA Up 1,35kV SPB040D
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Capacity
-
Number of modules1
Voltage
-
Rated operational voltage Ue240 - 415 V
-
Continuous operating voltage Uc according to IEC 61643-1275 V
-
Voltage protection level Up according to IEC 61643-11,35 kV
-
Type voltage supplyAC
Electric current
-
Nominal discharge current In 8 - 20 µs L-N(PEN)/N-PE IEC 6164320 kA
-
Max. overcurrent protection device, parallel connection (fuse)125 A
Dimensions
-
Height52,4 mm
-
Width17,5 mm
-
Depth55,3 mm
Use conditions
-
Operating temperature-40 - 80 °C
Network configuration
-
Network typeTN, TT
Equipment
-
With remote signalling contactNo
Standards
-
Requirement class IEC 61643T2
Frequency
-
Frequency50 - 60 Hz
Installation, mounting
-
Nominal tightening torque3 - 3 Nm
