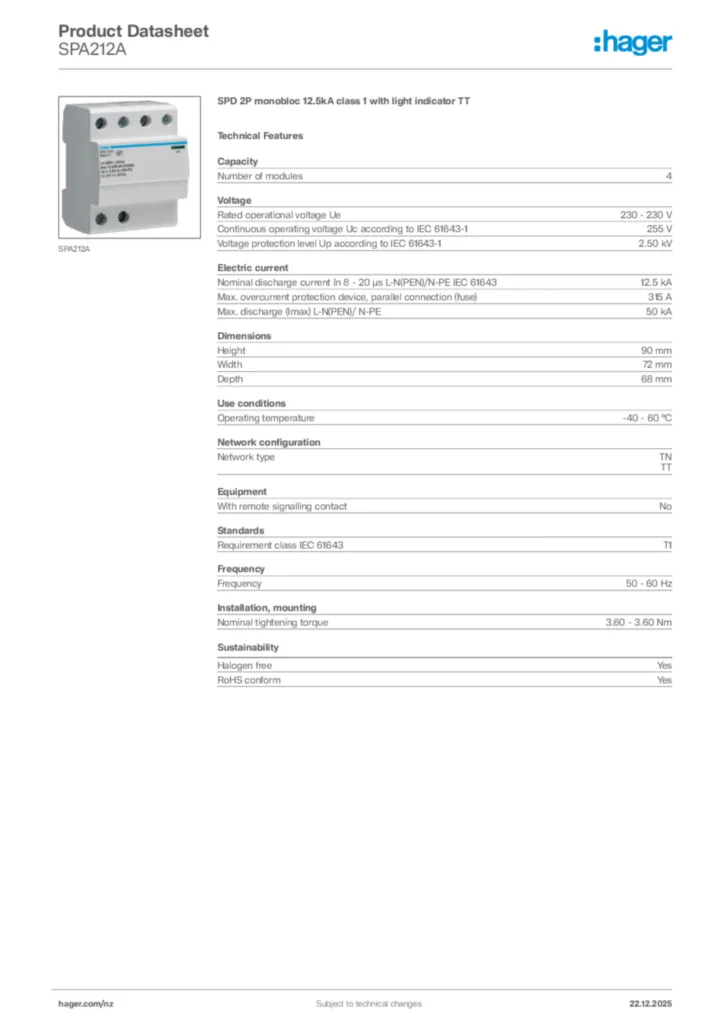

SPD 2P monobloc 12.5kA class 1 with light indicator TT SPA212A
EAN
3250615662125
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Capacity
-
Number of modules4
Voltage
-
Rated operational voltage Ue230 - 230 V
-
Continuous operating voltage Uc according to IEC 61643-1255 V
-
Voltage protection level Up according to IEC 61643-12,50 kV
Electric current
-
Nominal discharge current In 8 - 20 µs L-N(PEN)/N-PE IEC 6164312.5 kA
-
Max. overcurrent protection device, parallel connection (fuse)315 A
-
Max. discharge (Imax) L-N(PEN)/ N-PE50 kA
Dimensions
-
Height90 mm
-
Width72 mm
-
Depth68 mm
Use conditions
-
Operating temperature-40 - 60 °C
Network configuration
-
Network typeTN, TT
Equipment
-
With remote signalling contactNo
Standards
-
Requirement class IEC 61643T1
Frequency
-
Frequency50 - 60 Hz
Installation, mounting
-
Nominal tightening torque3,60 - 3,60 Nm
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
ProductECDeclaration
Declaration
Declaration of conformity International 2023-11-09
PDF82,57 kB
