Cartridge L-N Uc 320V In 20kA Imax 65kA Up 1,35kV SPB065R
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Suitable with 4 products available
Suitable with
-
SPB265RSurge Protection Device 2P T2 TNS/TT Uc 320V In 20kA Imax 65kA remote contact
-
SPB465RSurge Protection Device 4P T2 TNS/TT Uc 320V In 20kA Imax 65kA remote contact
-
SPB165RSurge Protection Device 1P T2 TNC Uc 320V In 20kA Imax 65kA remote contact
-
SPB365RSurge Protection Device 3P T2 TNC Uc 320V In 20kA Imax 65kA remote contact
Technical properties
Capacity
-
Number of modules1
Voltage
-
Rated operational voltage Ue240 - 415 V
-
Continuous operating voltage Uc according to IEC 61643-1305 V
-
Voltage protection level Up according to IEC 61643-11,45 kV
Electric current
-
Nominal discharge current In 8 - 20 µs L-N(PEN)/N-PE IEC 6164320 kA
Dimensions
-
Height52,4 mm
-
Width17,5 mm
-
Depth55,3 mm
Use conditions
-
Operating temperature-40 - 80 °C
Network configuration
-
Network typeTN-C, TN-S, TT
Standards
-
Requirement class IEC 61643T2
Frequency
-
Frequency50 - 60 Hz
Installation, mounting
-
Nominal tightening torque3 - 3 Nm
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

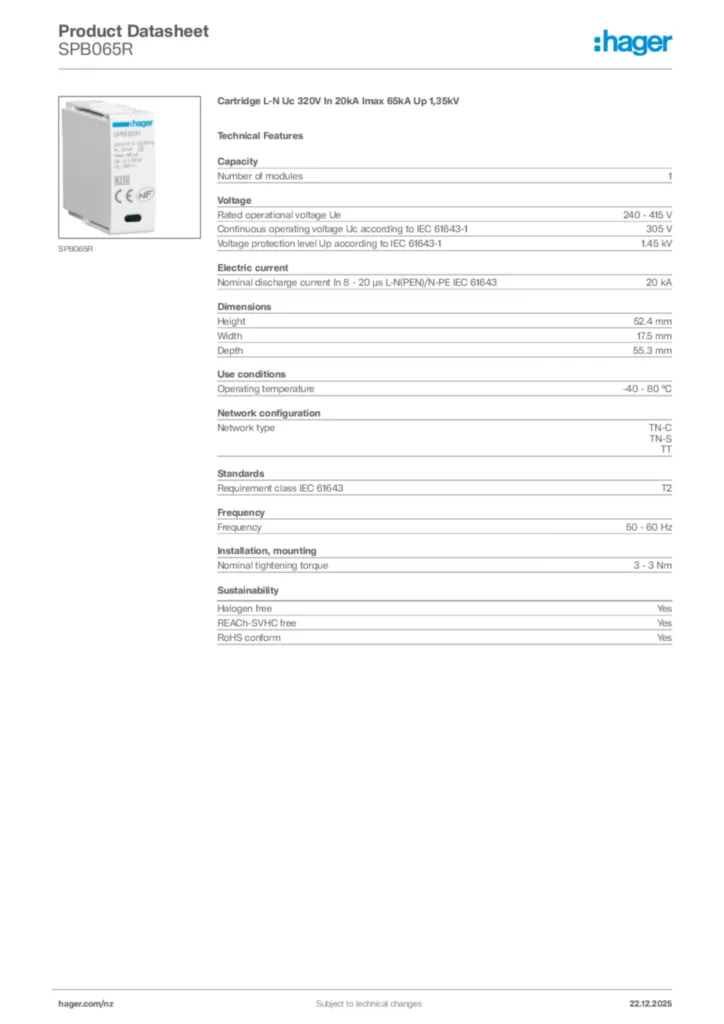

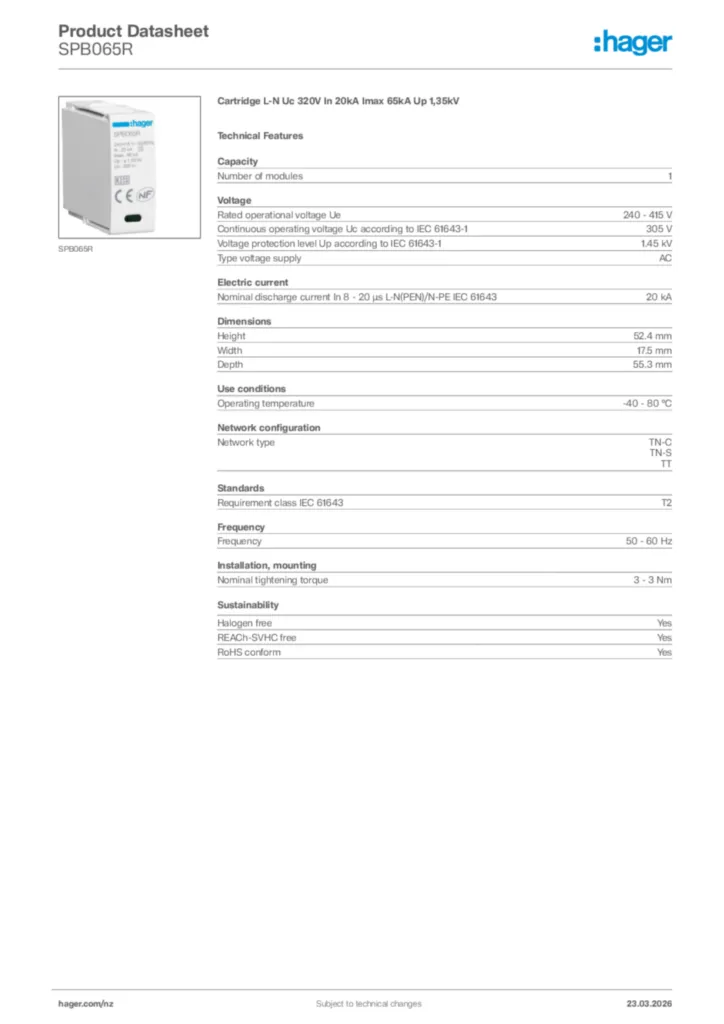

Hager Product data sheet SPB065R
Cartridge L-N Uc 320V In 20kA Imax 65kA Up 1,35kV
PDF -
Declaration of conformity
Declaration of conformity for Lightning rod 8-15-40-65-100kA
Declaration of conformity International 2021-08-25
PDF305,83 kB
