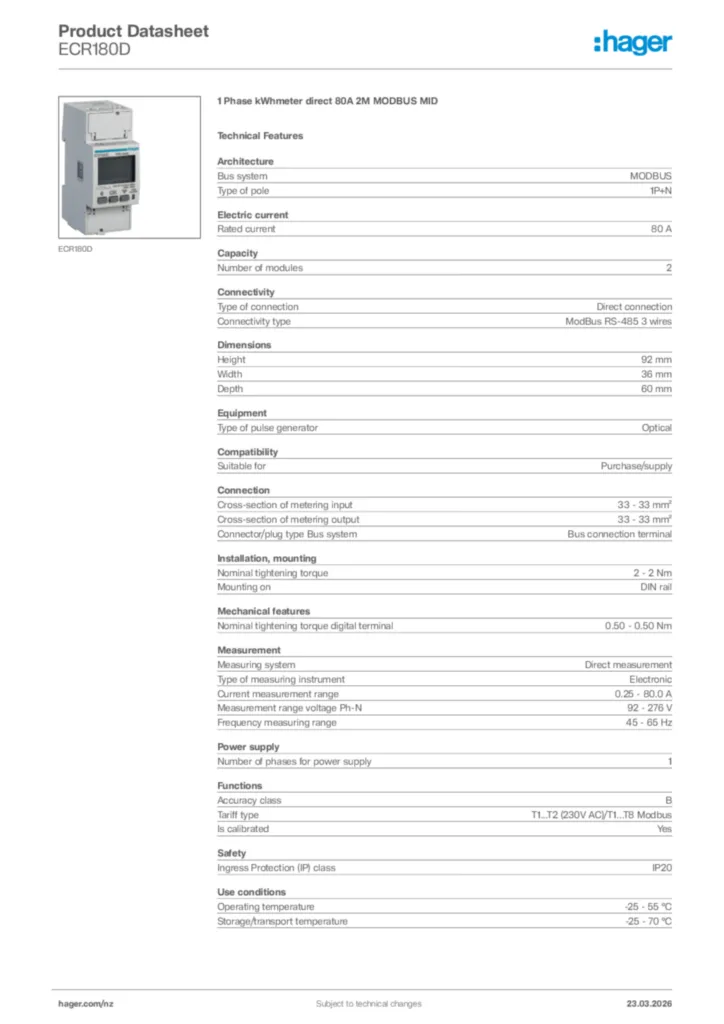

1 Phase kWhmeter direct 80A 2M MODBUS MID ECR180D
EAN
3250612231447
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Bus systemMODBUS
-
Type of pole1P+N
Electric current
-
Rated current80 A
-
Maximum measuring circuit current80 A
Capacity
-
Number of modules2
Connectivity
-
Type of connectionDirect connection
-
Connectivity typeModBus RS-485 3 wires
Dimensions
-
Height92 mm
-
Width36 mm
-
Depth60 mm
Equipment
-
Type of pulse generatorOptical
Compatibility
-
Suitable forPurchase/supply
Connection
-
Cross-section of metering input33 - 33 mm²
-
Cross-section of metering output33 - 33 mm²
-
Connector/plug type Bus systemBus connection terminal
Installation, mounting
-
Nominal tightening torque2 - 2 Nm
-
Mounting onDIN rail
Mechanical features
-
Nominal tightening torque digital terminal0,50 - 0,50 Nm
Measurement
-
Measuring systemDirect measurement
-
Type of measuring instrumentElectronic
-
Current measurement range0,25 - 80,0 A
-
Measurement range voltage Ph-N92 - 276 V
-
Frequency measuring range45 - 65 Hz
Power supply
-
Number of phases for power supply1
Functions
-
Accuracy classB
-
Tariff typeT1...T2 (230V AC)/T1...T8 Modbus
-
Is calibratedYes
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature-25 - 55 °C
-
Storage/transport temperature-25 - 70 °C
Power
-
Power consumption VA2 VA
-
Total power loss under IN1 W
Frequency
-
Frequency50 - 50 Hz
