3 Phase kWhmeter via CT 1A or 5A 4M S0 MID ECP300C
EAN
3250612231393
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists

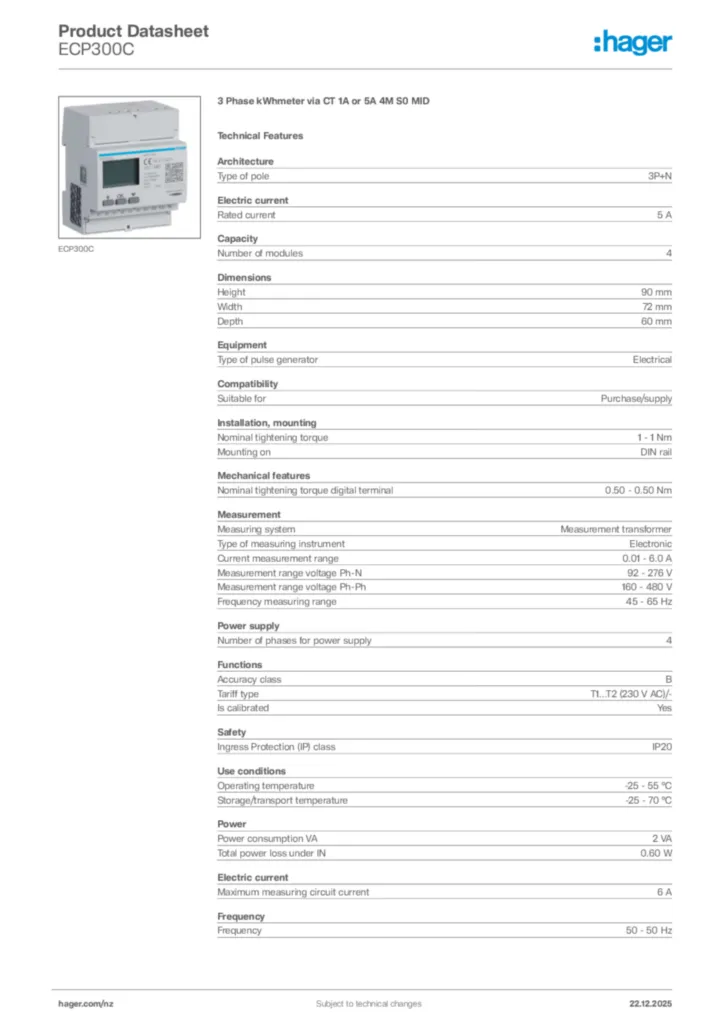

Technical properties
Architecture
-
Number of poles4 P
-
Type of pole3P+N
Functions
-
Precision classB
-
Tarif typeT1...T2 (230 V AC) / -
Configuration
-
Number of modules4
Compatibility
-
Suitable forPurchase / supply
Main electrical features
-
Rated operational voltage Ue92 / 480 V
-
Type of supply voltageAC
-
Frequency50 Hz
Voltage
-
Max operating voltage300 V
-
Rated impulse withstand voltage6 kV
Electric current
-
Minimum operating current0.001 A
-
Operating current0.001 / 6 A
-
Rated current5 A
-
Reference current1 A
-
Max. measurement circuit current6 A
Dimensions
-
Depth of installed product60 mm
-
Height of installed product90 mm
-
Width of installed product72 mm
Power
-
Power consumed2 VA
-
Total power loss under IN0.6 W
-
Plage Impulsion/KWh1 / 10000 Imp/kWh
Electrical specifications
-
Type of pulse generatorélectrical
Measurement
-
Frequency measuring range45 to 65 Hz
-
Type of measuring instrumentelectronical
-
Principle of measurementMeasurement transformer
Power supply
-
Supply voltage400 V ± 20%
Installation, mounting
-
Tightening torque0.5Nm
-
Mounting typedin-Rail
Settings
-
Value of a pulse100 Wh
-
Transformer interpretation adjustable1
Equipment
-
Type of displayretro illuminated display
-
Tariff model of kilowatt-hour meterExterna
-
Type of counterthree-phase counter with torus of measurement and impulses output
Use
-
Pulse duration30 / 100 ms
-
Transformation Ratio50;5 ; 100;5 ; 200;5 ; 250;5 ; 300;5 ; 400;5 ; 600;5 ; 800;5 ; 1000;5 ; 1250;5 ; 1500;5
Standards
-
Standard textEN 50470-1 / 3 ; IEC 62053-21 / 23 ; IEC 61557-12
-
Certified productMID (Measuring Instruments Directive)
Safety
-
Protection classisol.class II
-
Halogen freeNo
Use conditions
-
Operating temperature-25…55 °C
-
Degree of pollution according to IEC 60664 / IEC 60947-22
-
Altitude2000 m
-
Storage/transport temperature-25…70 °C
