Multifunction measurement device DIN rail 2x3-Phase RS485 JKM02
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Bus systemMODBUS
-
Type of pole4P
Capacity
-
Number of modules4
Dimensions
-
Height90 mm
-
Width70 mm
-
Depth62 mm
Equipment
-
Type of pulse generatorElectrical
Compatibility
-
Suitable forPurchase
Connection
-
Connector/plug type Bus systemPulse, RS485
Installation, mounting
-
Mounting onDIN rail
Measurement
-
Measuring systemMeasurement transformer
-
Type of measuring instrumentElectronic
-
Measurement range voltage Ph-N60 - 300 V
-
Measurement range voltage Ph-Ph104 - 520 V
-
Frequency measuring range45 - 65 Hz
Functions
-
Accuracy classB
-
Tariff typeOne-tariff
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature-10 - 55 °C
-
Storage/transport temperature-20 - 75 °C
Frequency
-
Frequency45 - 65 Hz
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

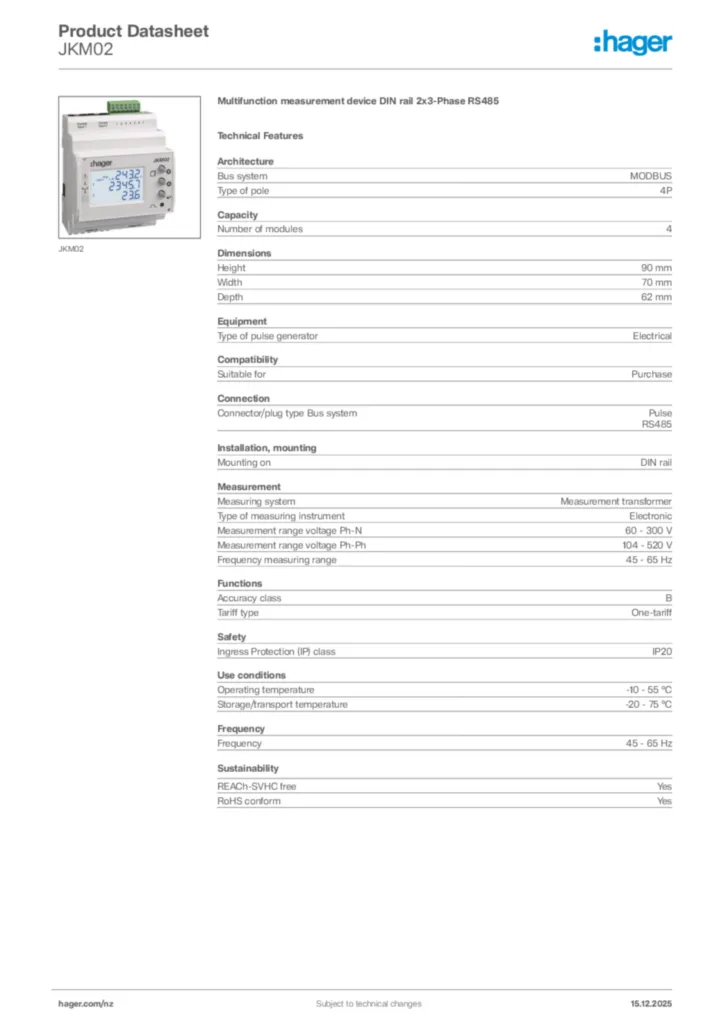

Hager Product data sheet JKM02
