1 Phase kWhmeter direct 40A 1M S0 MID ECP140D
EAN
3250612231362
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists

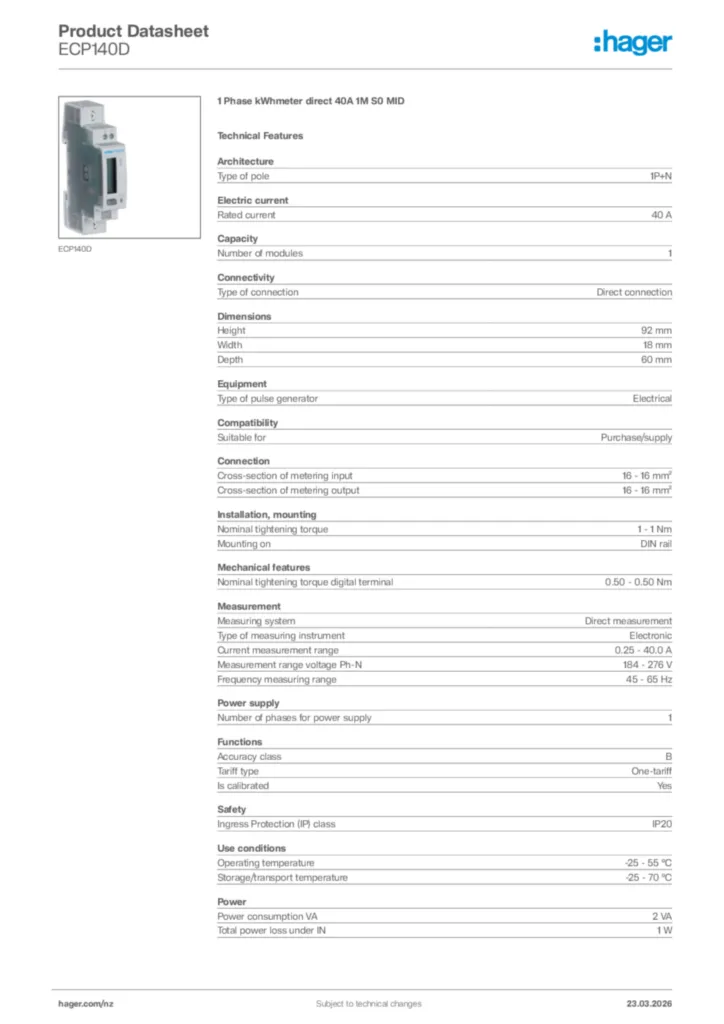

Technical properties
Architecture
-
Number of poles2 P
-
Type of pole1P+N
Functions
-
Precision classB
-
Tarif typeOne-tariff
Configuration
-
Number of modules1
Compatibility
-
Suitable forPurchase / supply
Main electrical features
-
Rated operational voltage Ue92 / 276 V
-
Type of supply voltageAC
-
Frequency50 Hz
Voltage
-
Max operating voltage300 V
-
Rated impulse withstand voltage6 kV
Electric current
-
Minimum operating current0.02 A
-
Operating current0.02 / 40 A
-
Rated current40 A
-
Reference current5 A
-
Max. measurement circuit current40 A
Dimensions
-
Depth of installed product60 mm
-
Height of installed product92 mm
-
Width of installed product18 mm
Power
-
Power consumed2 VA
-
Total power loss under IN1 W
-
Plage Impulsion/KWh1000 Imp/kWh
Electrical specifications
-
Type of pulse generatorélectrical
Measurement
-
Frequency measuring range45 to 65 Hz
-
Type of measuring instrumentelectronical
-
Principle of measurementDirect measurement
Power supply
-
Supply voltage230 V ± 20%
Installation, mounting
-
Tightening torque1Nm
-
Mounting typedin-Rail
Connection
-
Wire cross section of metering entrance wire16 mm²
-
Wire cross section of metering outgoing wire16 mm²
Settings
-
Value of a pulse100 Wh
Equipment
-
Type of displayLCD
-
Type of countersingle-phase counter
Use
-
Pulse duration100 ms
Standards
-
Standard textEN 50470-1 / 3 ; IEC 62053-21 / 23 ; IEC 61557-12
-
Certified productMID (Measuring Instruments Directive)
Safety
-
Protection classisol.class II
-
Halogen freeNo
Use conditions
-
Operating temperature-25…55 °C
-
Degree of pollution according to IEC 60664 / IEC 60947-22
-
Altitude2000 m
-
Storage/transport temperature-25…70 °C
