ECP180D - 1 Phase kWhmeter direct 80A 2M S0 MID
ECP180D - 1 Phase kWhmeter direct 80A 2M S0 MID

1 Phase kWhmeter direct 80A 2M S0 MID ECP180D

EAN
3250612231386
Packaging
1 Piece

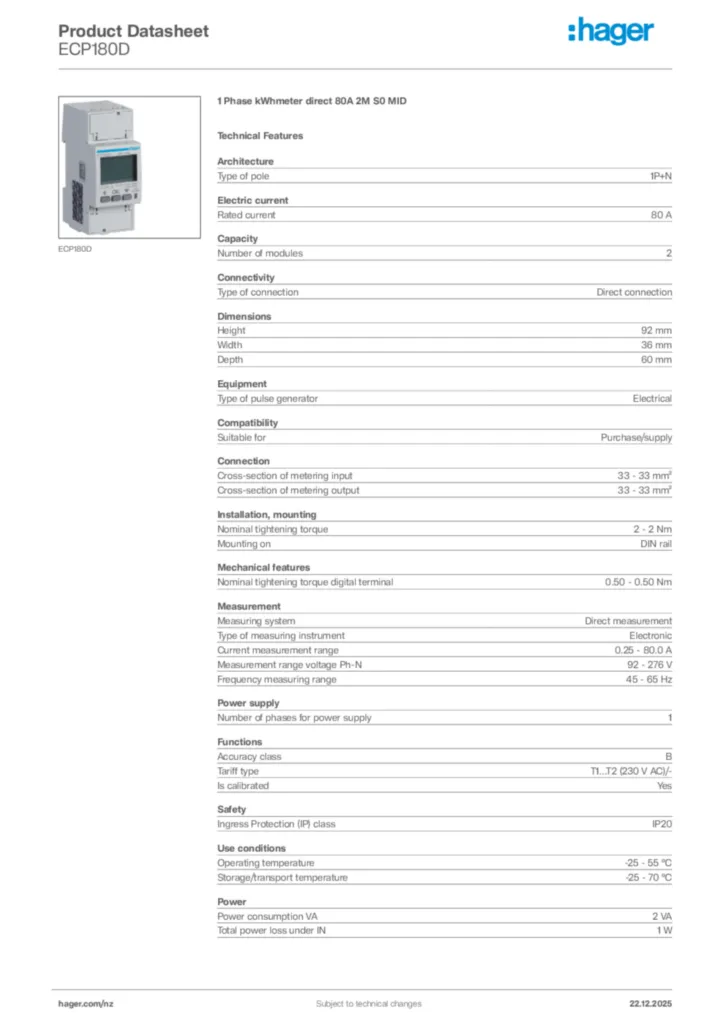

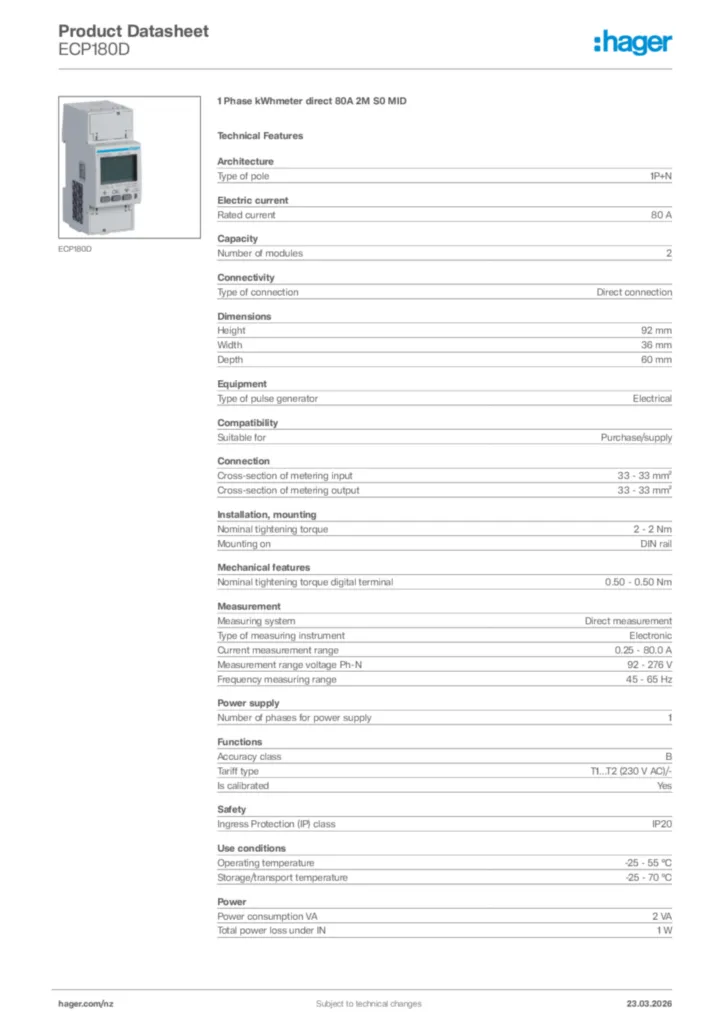

Technical properties

Architecture
  • Number of poles
    2 P
  • Fixing mode
    DIN rail type O (symmetrical)
Functions
  • Tarif type
    T1...T2 (230 V AC) / -
Configuration
  • Number of modules
    2
Compatibility
  • Suitable for
    Purchase / supply
Main electrical features
  • Rated operational voltage Ue
    92 / 276 V
  • Type of supply voltage
    AC
  • Frequency
    50 Hz
Voltage
  • Max operating voltage
    300 V
  • Rated impulse withstand voltage
    6 kV
Electric current
  • Minimum operating current
    0.015 A
  • Operating current
    0.015 / 80 A
  • Rated current
    80 A
  • Reference current
    5 A
  • Max. measurement circuit current
    80 A
Dimensions
  • Depth of installed product
    60 mm
  • Height of installed product
    92 mm
  • Width of installed product
    36 mm
Power
  • Power consumed
    2 VA
  • Total power loss under IN
    1 W
  • Plage Impulsion/KWh
    1 / 1000 Imp/kWh
Electrical specifications
  • Type of pulse generator
    électrical
Measurement
  • Frequency measuring range
    45 to 65 Hz
  • Type of measuring instrument
    electronical
  • Principle of measurement
    Direct measurement
Installation, mounting
  • Tightening torque
    2Nm
  • Mounting type
    din-Rail
Connection
  • Wire cross section of metering entrance wire
    33 mm²
  • Wire cross section of metering outgoing wire
    33 mm²
Settings
  • Value of a pulse
    100 Wh
Equipment
  • Type of display
    retro illuminated display
  • Tariff model of kilowatt-hour meter
    Externa
  • Type of counter
    single-phase counter
Use
  • Pulse duration
    30 / 100 ms
Standards
  • Standard text
    EN 50470-1 / 3 ; IEC 62053-21 / 23 ; IEC 61557-12
  • European directive WEEE
    concerned
Safety
  • Protection index IP
    IP20
  • Protection class
    isol.class II
  • Halogen free
    No
Use conditions
  • Operating temperature
    -25…55 °C
  • Altitude
    2000 m
  • Storage/transport temperature
    -25…70 °C
