    EAN-Nr.
    3250615514950
    Packaging
    1 piece
    • Surge Protec­tion Device (SPD)

    Cartridge T2 1P photovoltaic +/- for SPV340 SPV040

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Cartridge T2 1P photovoltaic +/- for SPV340

    SPV040

    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Technical characteristics

    Voltage
    • Rated oper­a­tional voltage Ue
      1000 - 1000 V
    • Rated oper­a­tional voltage in DC
      1000 - 1000 V
    • Over­voltage category according to IEC 60947-1
      3
    • Type voltage supply
      DC
    • Mode of protec­tion design
      Voltage-lim­iting type
    Equip­ment
    • With remote signalling contact
      No
    Use condi­tions
    • Oper­ating temper­ature
      -40 - 80 °C
    • Max. alti­tude
      2000 m
    • Degree of pollu­tion according to IEC 60664 / IEC 60947-2
      2
    • Stor­age/trans­port temper­ature
      -40 - 80 °C
    Stand­ards
    • Require­ment class IEC 61643
      T2
    Frequency
    • Frequency
      50 - 60 Hz
    Dimen­sions
    • Height
      52,40 mm
    • Width
      17,50 mm
    • Depth
      55,4 mm
    Connectivity
    • Type of connec­tion
      Plug-in connec­tion
    • Mounting type
      On base element
    Elec­tric current
    • Max. discharge current (Imax)
      40 kA
    • Nominal discharge current In
      15 kA
    Func­tions
    • Discon­nector indic­a­tion
      Optical
    • End of life mode
      OCM (open circuit mode)
    Install­a­tion, mounting
    • Suit­able for indoor usage
      Yes
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    Mater­ials
    • Material
      Poly­amide (PA)
    • Colour
      Light grey
    • RAL code
      7035
    Network config­ur­a­tion
    • Network type
      DC
    Use
    • Is access­ible
      Yes

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    REACH declaration SPV040
    PDF
    RoHS report SPV040
    PDF

    Downloads

    • Image SPV040 | Hager

      Product Image SPV040

    • Product datasheet

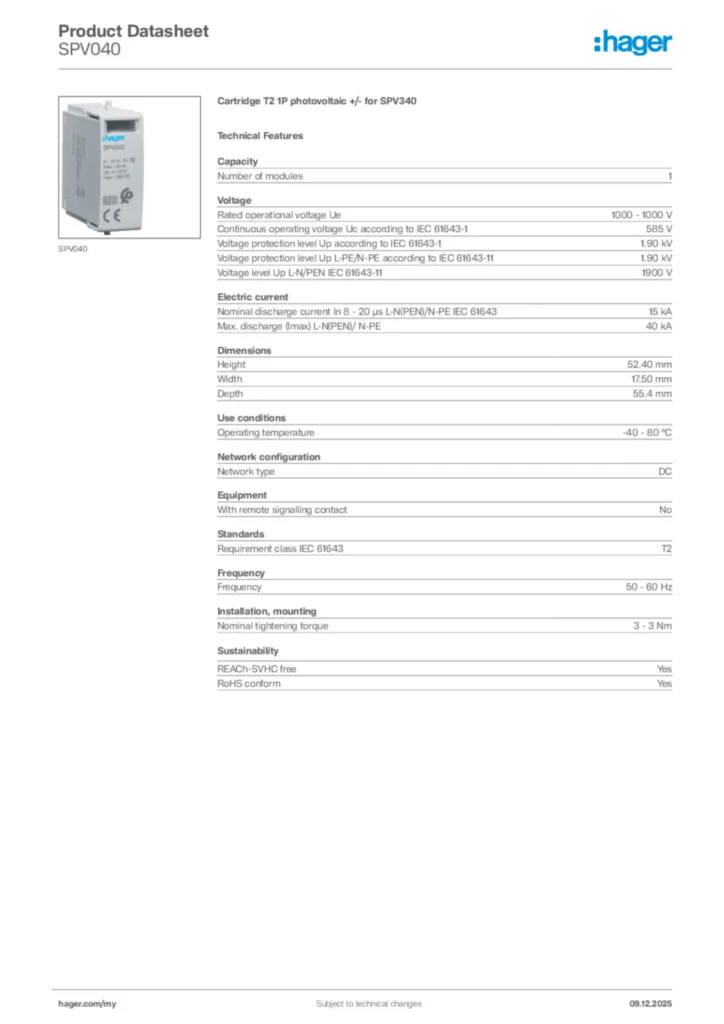

      Image Hager Product data sheet SPV040 | Hager

      Hager Product data sheet SPV040

      Cartridge T2 1P photovoltaic +/- for SPV340

      PDF

    • Brochure

      Image SPD brochure MY | Hager

      SPD brochure MY

      Brochure en-GB 2025-08-25

      PDF
      2,41 MB

    • Declaration of conformity

      Image Declaration of conformity en-US 2026-07-15 | Hager

      Declaration of conformity en-US 2026-07-15

      PDF
      346,66 kB
