Combined SPD T1+T2 1P N-PE Iimp 100kA Uc 1.5KV remote contact integrated fuse SPA180N
EAN-Nr.
3250615515063
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Available soon
Technical characteristics
Electric current
-
Lightning impulse current Iimp (10/350 µs) IEC 61643 L-N(PEN)/ N-PE100 kA
-
Max. discharge (Imax) L-N(PEN)/ N-PE100 kA
Network configuration
-
Network typeTN, TT
Equipment
-
With remote signalling contactYes
Standards
-
Requirement class IEC 61643T1, T2
Capacity
-
Number of modules2
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature-40 - 80 °C
Dimensions
-
Height95,20 mm
-
Width35,60 mm
-
Depth67 mm
Controls and indicators
-
Indicator lampOptic
Connection
-
Cross-section of input and output with screws, for flexible conductors2,5 - 35 mm²
-
Cross-section of input and output with screws, for massive conductors2,5 - 35 mm²
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

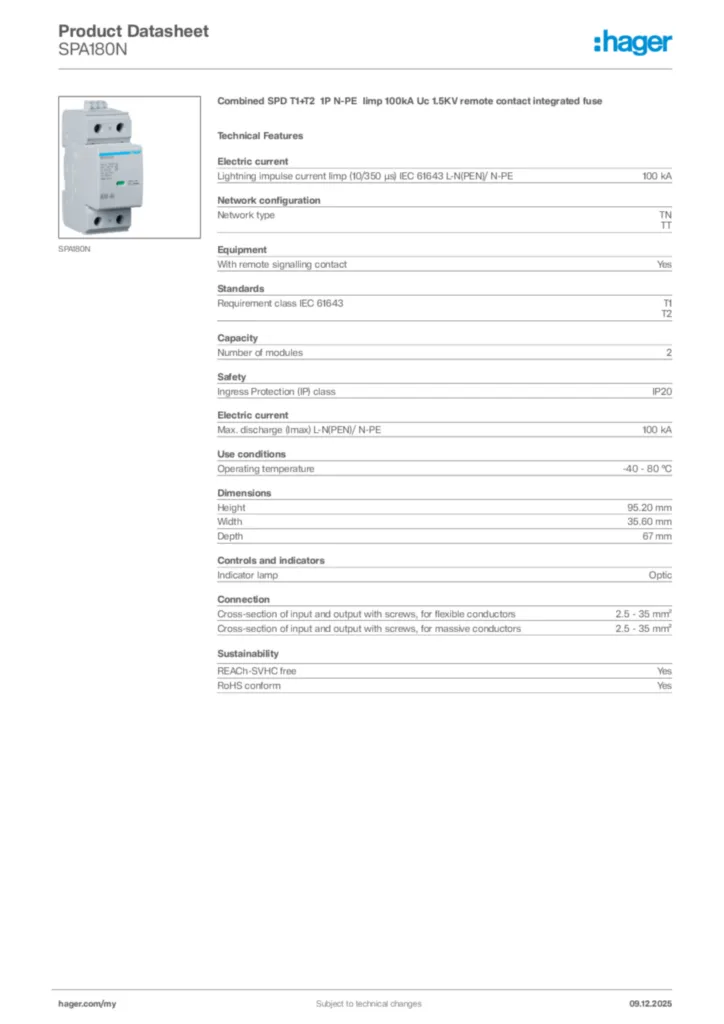

Hager Product data sheet SPA180N
Combined SPD T1+T2 1P N-PE Iimp 100kA Uc 1.5KV remote contact integrated fuse
PDF -
Installation manual
Installation manual en-GB, es-ES, fr-FR, de-DE, it-IT, pt-PT 2020-09-25
PDF793,66 kB -
Brochure
SPD brochure MY
Brochure en-GB 2025-08-25
PDF2,41 MB
