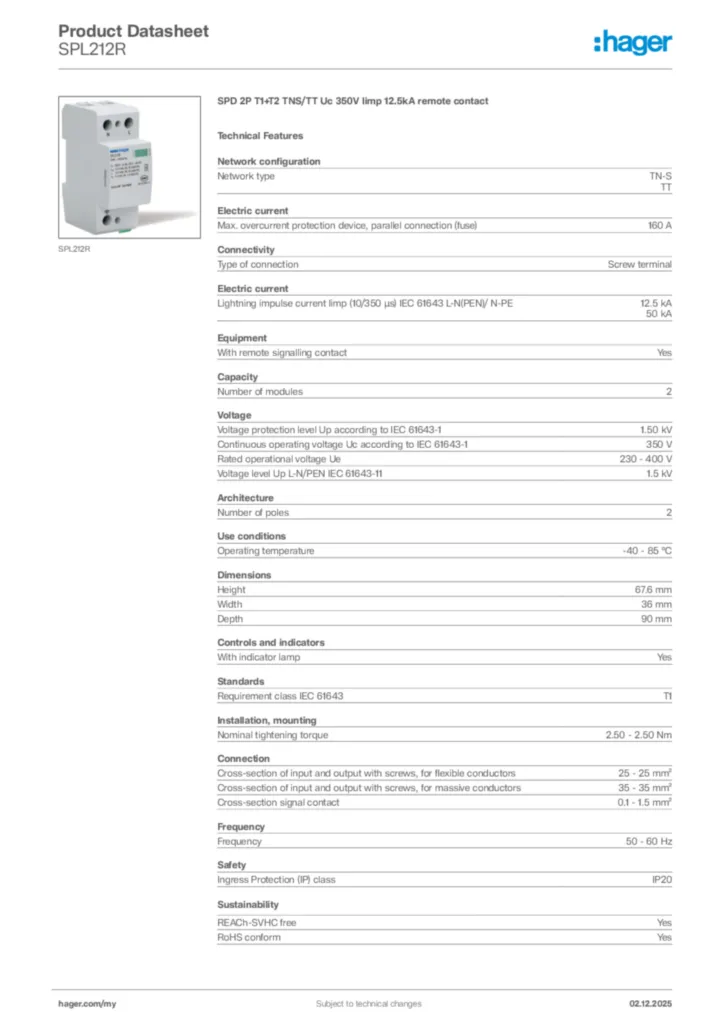

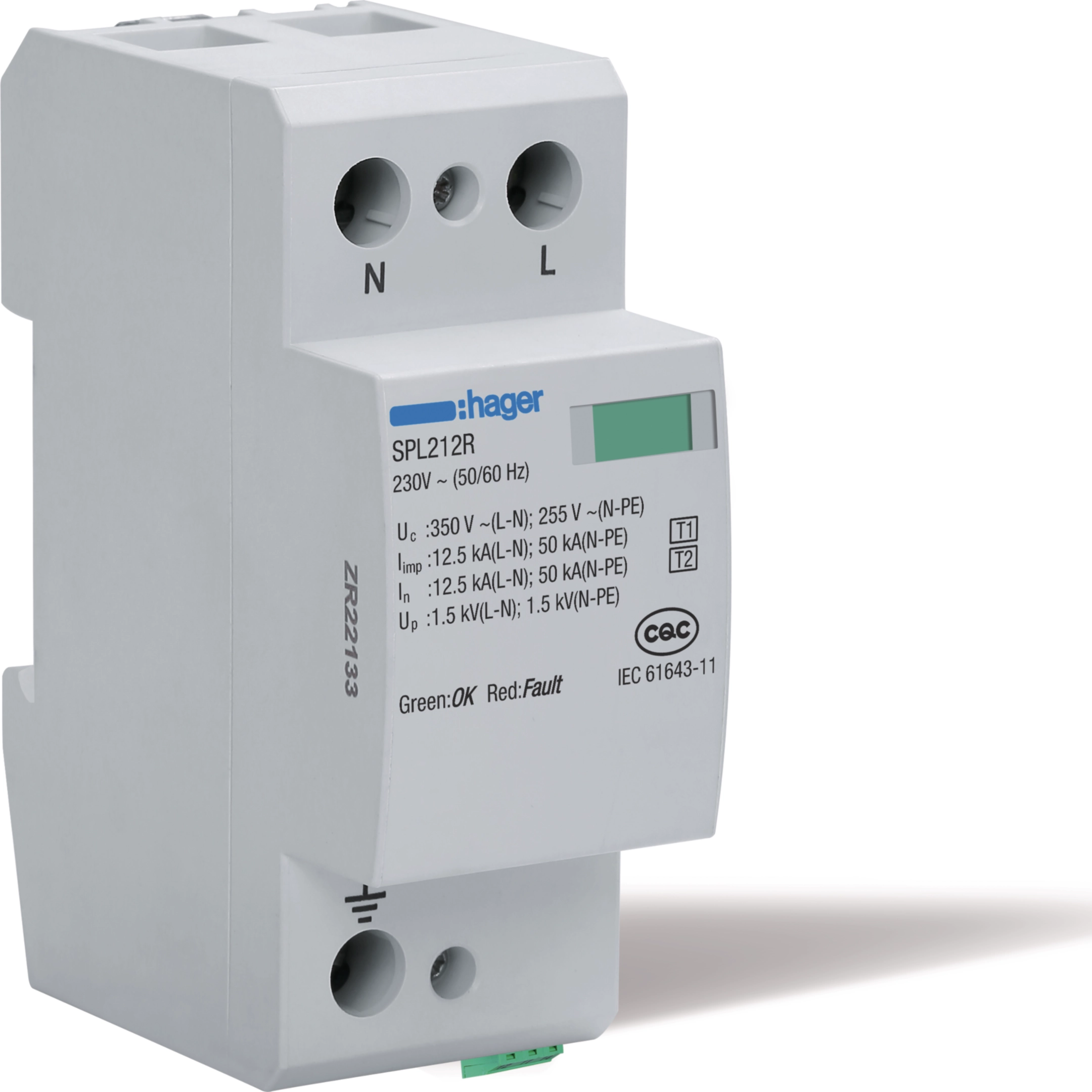

SPD 2P T1+T2 TNS/TT Uc 350V Iimp 12.5kA remote contact SPL212R
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Electric current
-
Max. overcurrent protection device, parallel connection (fuse)160 A
-
Lightning impulse current Iimp (10/350 µs) IEC 61643 L-N(PEN)/ N-PE12.5 kA, 50 kA
Network configuration
-
Network typeTN-S, TT
Connectivity
-
Type of connectionScrew terminal
Equipment
-
With remote signalling contactYes
Capacity
-
Number of modules2
Voltage
-
Voltage protection level Up according to IEC 61643-11,50 kV
-
Continuous operating voltage Uc according to IEC 61643-1350 V
-
Rated operational voltage Ue230 - 400 V
-
Voltage level Up L-N/PEN IEC 61643-111,5 kV
Architecture
-
Number of poles2
Use conditions
-
Operating temperature-40 - 85 °C
Dimensions
-
Height67,6 mm
-
Width36 mm
-
Depth90 mm
Controls and indicators
-
With indicator lampYes
Standards
-
Requirement class IEC 61643T1
Installation, mounting
-
Nominal tightening torque2,50 - 2,50 Nm
-
Mounting onDIN rail
Connection
-
Cross-section of input and output with screws, for flexible conductors25 - 25 mm²
-
Cross-section of input and output with screws, for massive conductors35 - 35 mm²
-
Cross-section signal contact0,1 - 1,5 mm²
Frequency
-
Frequency50 - 60 Hz
Safety
-
Ingress Protection (IP) classIP20
Configuration
-
With integrated protection fuseNo
