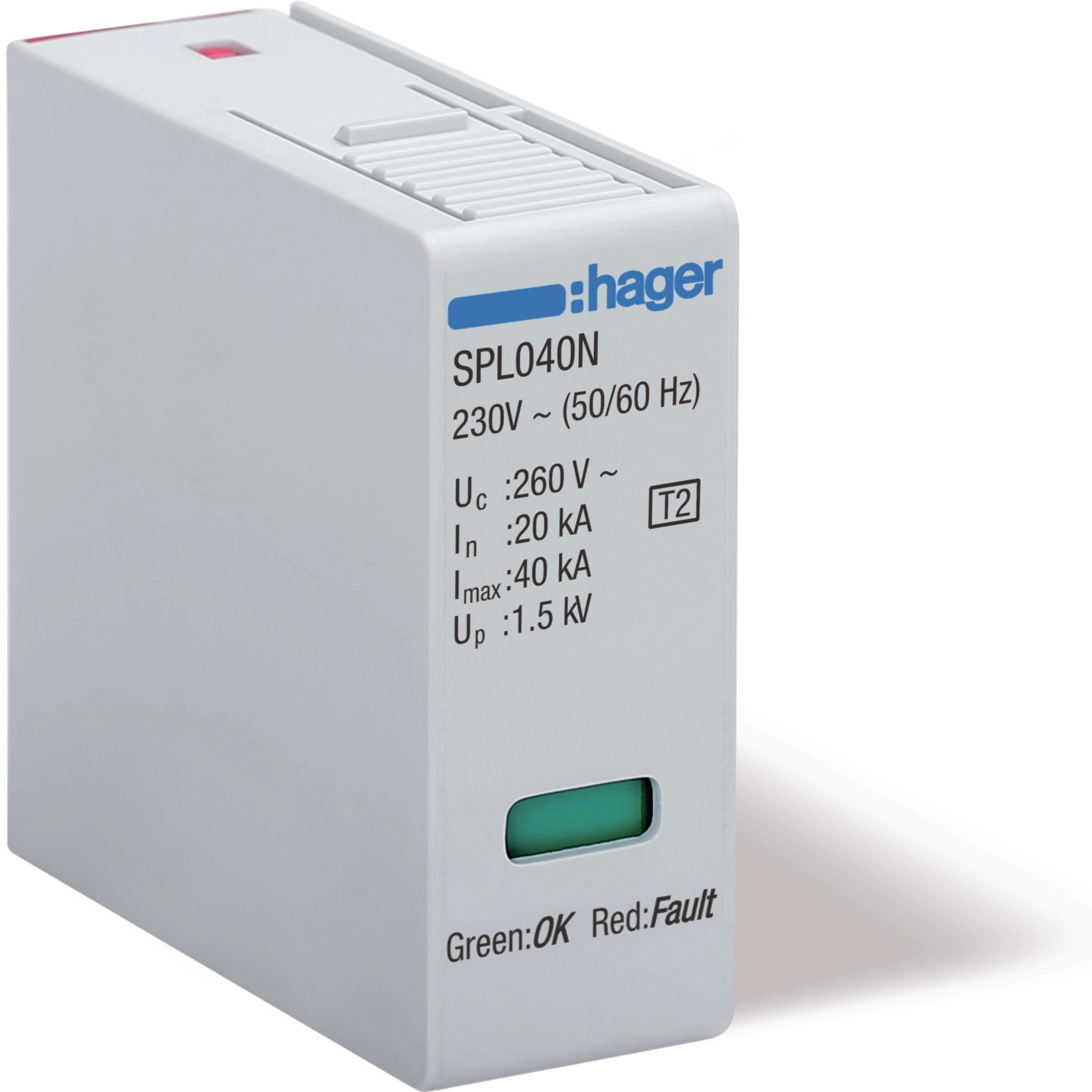

Cartridge N-PE In 20kA Imax 40kA SPL040N
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 6 products available
Referenced by
-

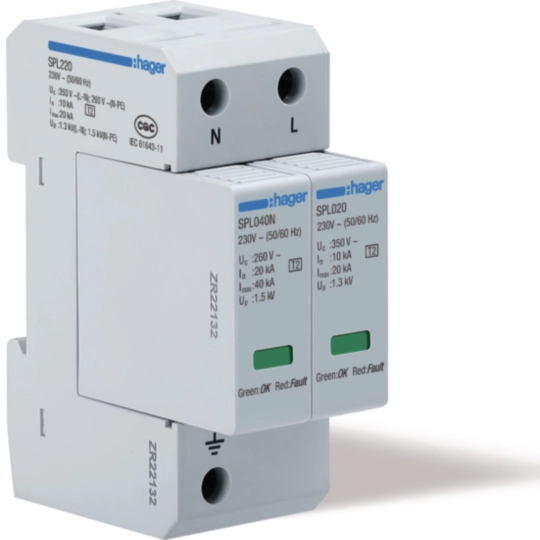

SPL220SPD 2P T2 TNS/TT Uc 350V In 10kA Imax 20kA
-

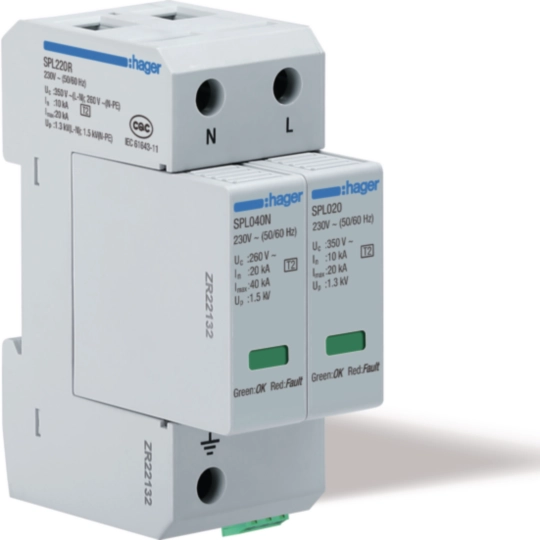

SPL220RSPD 2P T2 TNS/TT Uc 350V In 10kA Imax 20kA remote contact
-

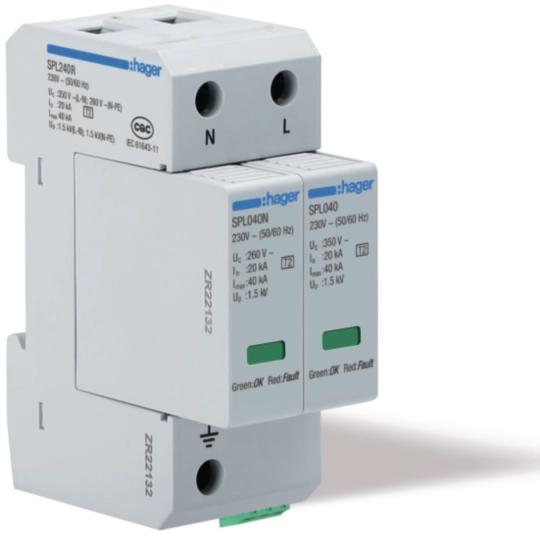

SPL240RSPD 2P T2 TNS/TT Uc 350V In 20kA Imax 40kA remote contact
-

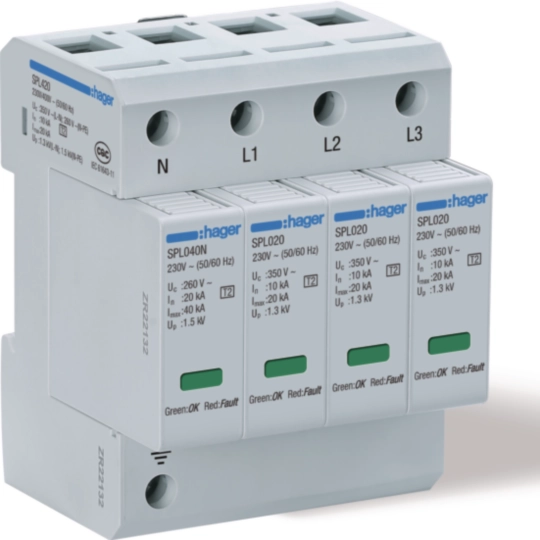

SPL420SPD 4P T2 TNS/TT Uc 350V In 10kA Imax 20kA
-
SPL420RSPD 4P T2 TNS/TT Uc 350V In 10kA Imax 20kA remote contact
-

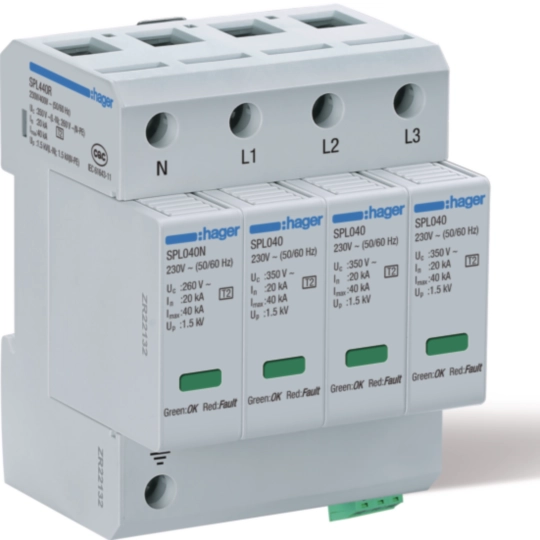

SPL440RSPD 4P T2 TNS/TT Uc 350V In 20kA Imax 40kA remote contact
Technical characteristics
Capacity
-
Number of modules1
Voltage
-
Rated operational voltage Ue230 - 230 V
-
Continuous operating voltage Uc according to IEC 61643-1260 V
-
Voltage protection level Up according to IEC 61643-11,90 kV
-
Voltage level Up L-N/PEN IEC 61643-111500 V
Electric current
-
Nominal discharge current In 8 - 20 µs L-N(PEN)/N-PE IEC 6164335 kA
-
Max. discharge (Imax) L-N(PEN)/ N-PE65 kA
Dimensions
-
Height53,5 mm
-
Width18 mm
-
Depth42,5 mm
Use conditions
-
Operating temperature-40 - 85 °C
Network configuration
-
Network typeTN-S, TT
Equipment
-
With remote signalling contactNo
Standards
-
Requirement class IEC 61643T2
Frequency
-
Frequency50 - 60 Hz
