Switch DC 4P 1000V 32A SB432PV

EAN-Nr.
3250615521392
Packaging
1 piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Switch DC 4P 1000V 32A

SB432PV

  • Technical characteristics
  • Environmental value
  • Documentations
  • More products

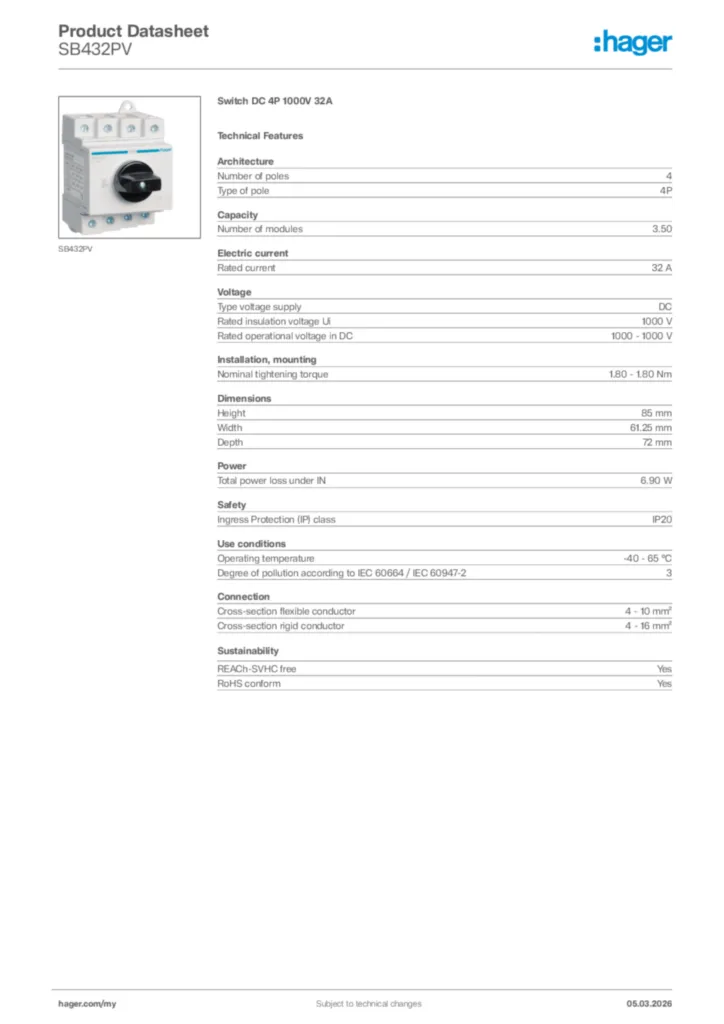

Technical characteristics

Archi­tec­ture
  • Number of poles
    4
  • Type of pole
    4P
Capa­city
  • Number of modules
    3,50
Elec­tric current
  • Rated current
    32 A
Voltage
  • Type voltage supply
    DC
  • Rated insu­la­tion voltage Ui
    1000 V
  • Rated oper­a­tional voltage in DC
    1000 - 1000 V
Install­a­tion, mounting
  • Nominal tight­ening torque
    1,80 - 1,80 Nm
Dimen­sions
  • Height
    85 mm
  • Width
    61,25 mm
  • Depth
    72 mm
Power
  • Total power loss under IN
    6,90 W
Safety
  • Ingress Protec­tion (IP) class
    IP20
Use condi­tions
  • Oper­ating temper­ature
    -40 - 65 °C
  • Degree of pollu­tion according to IEC 60664 / IEC 60947-2
    3
Connec­tion
  • Cross-sec­tion flex­ible conductor
    4 - 10 mm²
  • Cross-sec­tion rigid conductor
    4 - 16 mm²

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
REACh-SVHC free Yes

Certifications and documents

Hager REACH declaration SB432PV
PDF
Hager RoHS report SB432PV
PDF

Downloads

  • Image SB432PV | Hager

    Product Image SB432PV

  • Declaration of conformity

    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2021-10-04

    PDF
    910,04 kB
    Image Declaration of conformity for Switch DC 2P & 4P | Hager

    Declaration of conformity for Switch DC 2P & 4P

    Declaration of conformity International 2021-09-17

    PDF
    598,74 kB
