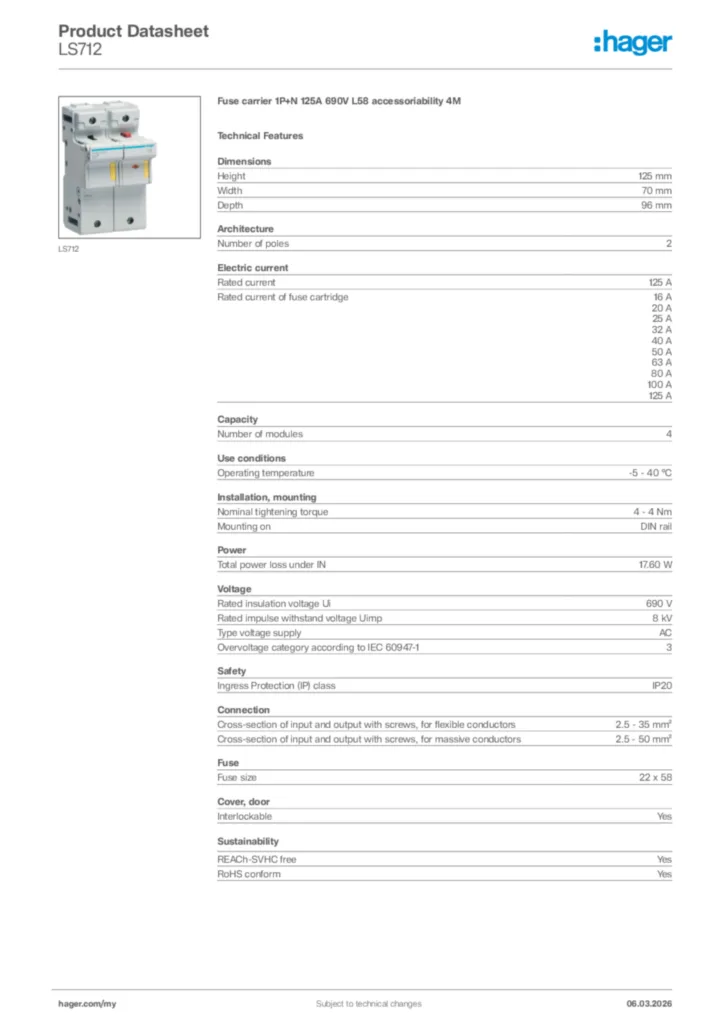

Fuse carrier 1P+N 125A 690V L58 accessoriability 4M LS712
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Dimensions
-
Height125 mm
-
Width70 mm
-
Depth96 mm
Architecture
-
Number of poles2
Electric current
-
Rated current125 A
-
Rated current of fuse cartridge16 A, 20 A, 25 A, 32 A, 40 A, 50 A, 63 A, 80 A, 100 A, 125 A
Capacity
-
Number of modules4
Internal use only
-
Number of half modules of 17,5 mm8
Use conditions
-
Operating temperature-5 - 40 °C
Installation, mounting
-
Nominal tightening torque4 - 4 Nm
-
Mounting onDIN rail
Power
-
Total power loss under IN17,60 W
Voltage
-
Rated insulation voltage Ui690 V
-
Rated impulse withstand voltage Uimp8 kV
-
Type voltage supplyAC
-
Overvoltage category according to IEC 60947-13
Safety
-
Ingress Protection (IP) classIP20
Connection
-
Cross-section of input and output with screws, for flexible conductors2,5 - 35 mm²
-
Cross-section of input and output with screws, for massive conductors2,5 - 50 mm²
Fuse
-
Fuse size22 x 58
Cover, door
-
InterlockableYes
