    PV Fuse-link 10x38 mm 1000V DC 5A LF305PV

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    PV Fuse-link 10x38 mm 1000V DC 5A

    LF305PV

    • Accessories
    • Technical characteristics
    • Documentations
    • More products
    Download the sheet

    Technical characteristics

    Fuse
    • Fuse char­ac­ter­istics
      gPV
    • Fuse size
      10.3 x 38
    Elec­tric current
    • Rated current
      5 A
    Power
    • Total power loss under IN
      2,22 W
    Main elec­trical attrib­utes
    • Rated short-­cir­cuit breaking capa­city Icn AC according to IEC 60898-1
      30 kA
    Voltage
    • Type voltage supply
      DC
    • Nominal voltage
      1000 - 1000 V

    Downloads

    • Image LF305PV | Hager

      Product Image LF305PV

    • Product datasheet

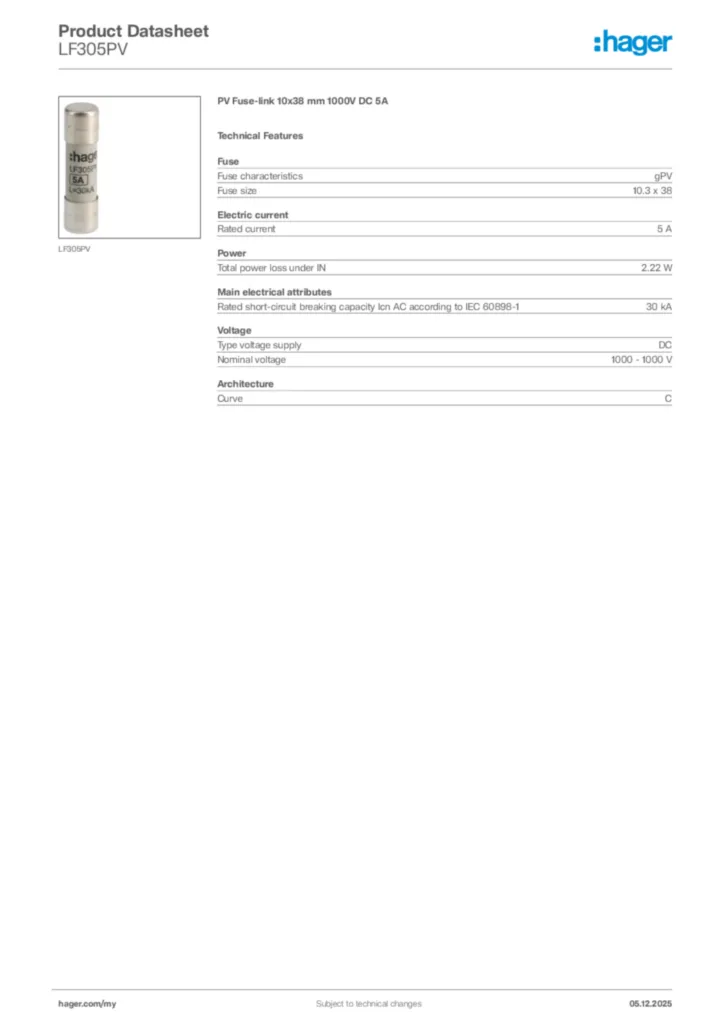

      Image Hager Product data sheet LF305PV | Hager

      Hager Product data sheet LF305PV

      PV Fuse-link 10x38 mm 1000V DC 5A

      PDF

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-03-09

      PDF
      916,99 kB
