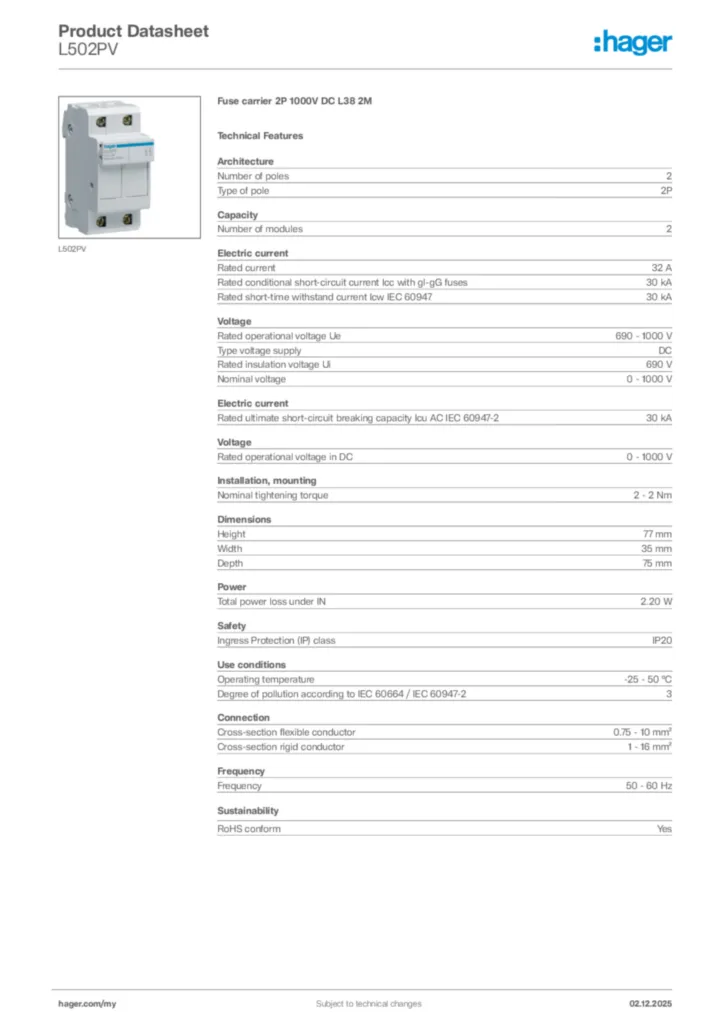

Fuse carrier 2P 1000V DC L38 2M L502PV

Name: L502PV
Brand: Hager
SKU: L502PV

EAN-Nr.

3250614124822

Packaging

6 Pieces

Stop order wo sub Example text: This is a discontinued product. For availability, delivery time and price, please contact your wholesaler.

Accessories
Technical characteristics
Environmental value
Documentations

Complete your system

Cylindrical fuse 14 products available

Technical characteristics

Number of poles

2
Type of pole

2P

Number of modules

2

Rated current

32 A
Rated conditional short-circuit current Icc with gl-gG fuses

30 kA
Rated short-time withstand current Icw IEC 60947

30 kA
Rated ultimate short-circuit breaking capacity Icu AC IEC 60947-2

30 kA

Rated operational voltage Ue

690 - 1000 V
Type voltage supply

DC
Rated insulation voltage Ui

690 V
Nominal voltage

0 - 1000 V
Rated operational voltage in DC

0 - 1000 V

Nominal tightening torque

2 - 2 Nm

Height

77 mm
Width

35 mm
Depth

75 mm

Total power loss under IN

2,20 W

Ingress Protection (IP) class

IP20

Operating temperature

-25 - 50 °C
Degree of pollution according to IEC 60664 / IEC 60947-2

3

Cross-section flexible conductor

0.75 - 10 mm²
Cross-section rigid conductor

1 - 16 mm²

Frequency

50 - 60 Hz

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Certifications and documents

Hager REACH declaration L502PV

PDF

Hager RoHS report L502PV

PDF
