    Fuse carrier 1P 1000V DC L38 1M L501PV

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in
    Phase out product: please contact your electrical wholesaler for availability

    Fuse carrier 1P 1000V DC L38 1M

    L501PV

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    Download the sheet

    Complete your system

    Optional accessories

    • Cylindrical fuse 14 products available

    Complete your system

    • Cylindrical fuse
    • LF308PV

      PV Fuse-link 10x38 mm 1000V DC 8A
      0.00 €  / *
    • LF303PV

      PV Fuse-link 10x38 mm 1000V DC 3A
      0.00 €  / *
    • LF302PV

      PV Fuse-link 10x38 mm 1000V DC 2A
      0.00 €  / *
    • LF301PV

      PV Fuse-link 10x38 mm 1000V DC 1A
      0.00 €  / *
    • LF312PV

      PV Fuse-link 10x38 mm 1000V DC 12A
      0.00 €  / *
    • LF320PV

      PV Fuse-link 10x38 mm 1000V DC 20A
      0.00 €  / *
    • LF316PV

      PV Fuse-link 10x38 mm 1000V DC 16A
      0.00 €  / *
    • LF310PV

      PV Fuse-link 10x38 mm 1000V DC 10A
      0.00 €  / *
    • LF304PV

      PV Fuse-link 10x38 mm 1000V DC 4A
      0.00 €  / *
    • LF306PV

      PV Fuse-link 10x38 mm 1000V DC 6A
      0.00 €  / *
    • LF305PV

      PV Fuse-link 10x38 mm 1000V DC 5A
      0.00 €  / *
    • LF315PV

      PV Fuse-link 10x38 mm 1000V DC 15A
      0.00 €  / *
    • LF325PV

      PV Fuse-link 10x38 mm 600V DC 25A
      0.00 €  / *
    • LF332PV

      PV Fuse-link 10x38 mm 600V DC 32A
      0.00 €  / *

    Technical characteristics

    Archi­tec­ture
    • Number of poles
      1
    • Type of pole
      1P
    Capa­city
    • Number of modules
      1
    Elec­tric current
    • Rated current
      32 A
    • Rated condi­tional short-­cir­cuit current Icc with gl-gG fuses
      30 kA
    • Rated short-­time with­stand current Icw IEC 60947
      30 kA
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu AC IEC 60947-2
      30 kA
    Voltage
    • Rated oper­a­tional voltage Ue
      690 - 1000 V
    • Type voltage supply
      DC
    • Rated insu­la­tion voltage Ui
      690 V
    • Nominal voltage
      0 - 1000 V
    • Rated oper­a­tional voltage in DC
      0- 1000 V
    Install­a­tion, mounting
    • Nominal tight­ening torque
      2 - 2 Nm
    Dimen­sions
    • Height
      77 mm
    • Width
      18 mm
    • Depth
      75 mm
    Power
    • Total power loss under IN
      1,10 W
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    Use condi­tions
    • Oper­ating temper­ature
      -25 - 50 °C
    • Degree of pollu­tion according to IEC 60664 / IEC 60947-2
      3
    Connec­tion
    • Cross-sec­tion flex­ible conductor
      10 mm²
    • Cross-sec­tion rigid conductor
      16 mm²
    Frequency
    • Frequency
      50 - 50 Hz

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Hager REACH declaration L501PV
    PDF
    Hager RoHS report L501PV
    PDF

    Downloads

    • Image L501PV | Hager

      Product Image L501PV

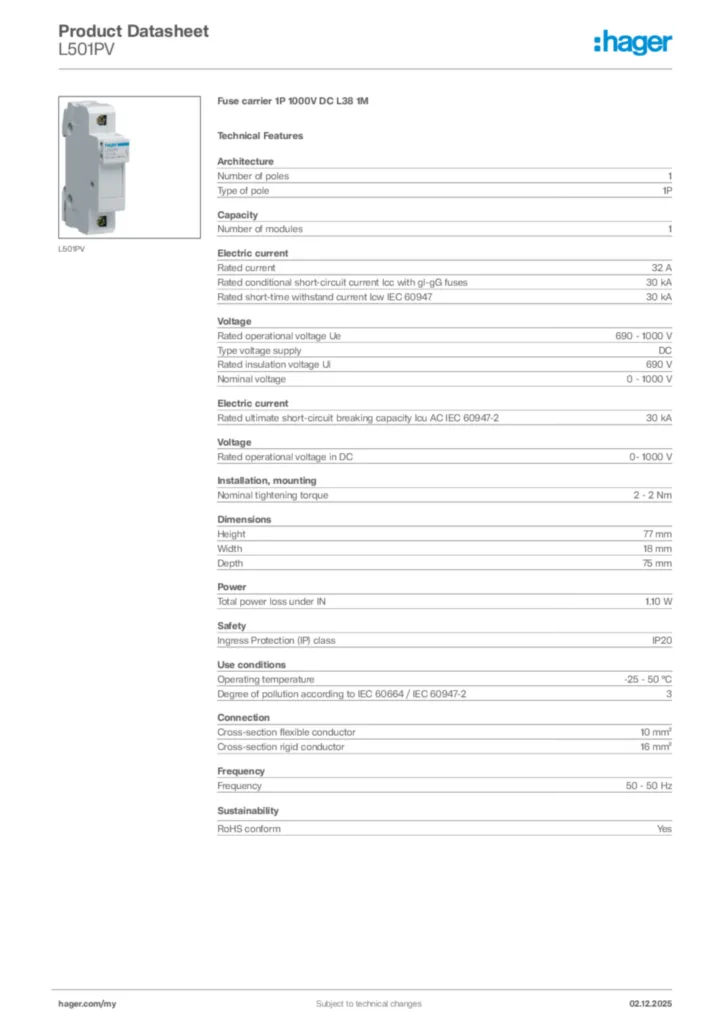

    • Product datasheet

      Image Hager Product data sheet L501PV | Hager

      Hager Product data sheet L501PV

      Fuse carrier 1P 1000V DC L38 1M

      PDF

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2021-09-23

      PDF
      378,78 kB
