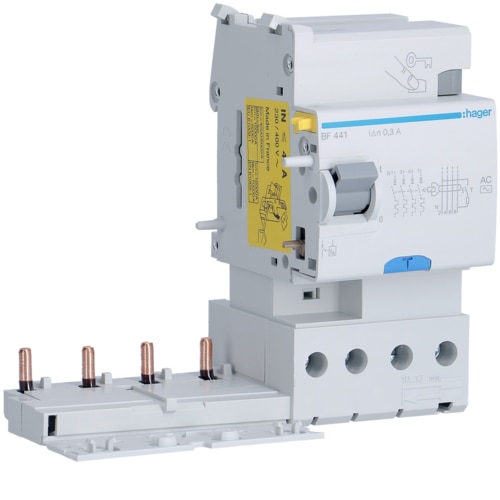

Image BF441 of the product Hager Africa | Hager Africa

Image BF441 of the product Hager Africa | Hager Africa

Image BF441 of the product Hager Africa | Hager Africa

Energy distribution

Earth leakage add-on block 4P 40A 300mA AC Class BF441

EAN

3250611364412

Packaging

1 Piece

Technical properties
Documentations
More products

Download the data sheet

Technical properties

Neutral position

left
Number of poles

4 P

Number of modules

3

Rated operational voltage Ue

230 / 400 V
Frequency

50 Hz

Rated insulation voltage

500 V
Rated impulse withstand voltage

4000 V

Rated residual operating current

300 mA
Rated current

40 A

Rating current 40°C

40 A

Depth of installed product

9.2 cm
Height of installed product

7 cm
Width of installed product

3.5 cm

Frequency

50 Hz

Total power loss under IN

35.5 W
Power loss per pole at In

10.7 W

Protected against nuisance tripping

No
Short-time delayed tripping

No

Electric endurance in number of cycles

2000
Number of mechanical operations

1000

Tightening torque

2,8Nm
Type of top rail clip for modular devices

Plastic
Type of bottom rail clip for modular devices

NA
Top removability for modular devices

Yes
Bottom removability for modular devices

No

Connection cross-sect. flexible conductor

16mm²
Connection cross-sect. rigid cable

25mm²

Rated fault current adjustable

No
Delay adjustable

No
Time delay of residual current

0 s

Residual current type

AC
REACH conform

No

Operating temperature

-5…40 °C
Degree of pollution according to IEC 60664 / IEC 60947-2

2
Altitude

2000 m
Air humidity protection

Execution I
