MCB 1P 10kA D-32A 1M NDN132A

Name: NDN132A
Brand: Hager
SKU: NDN132A

EAN

3250614618970

Packaging

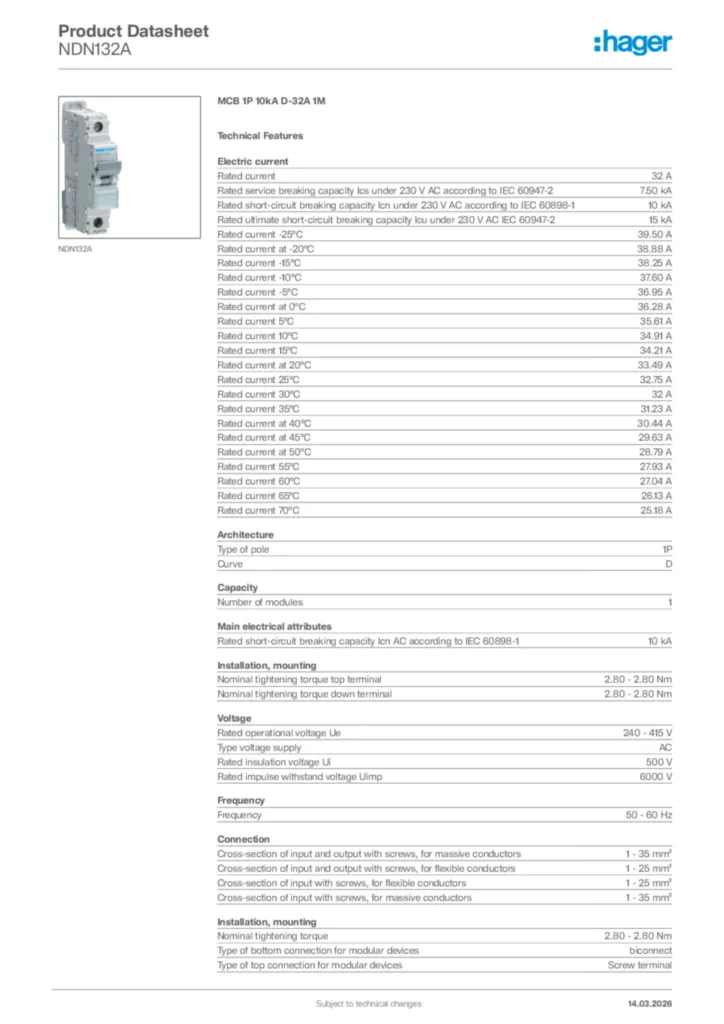

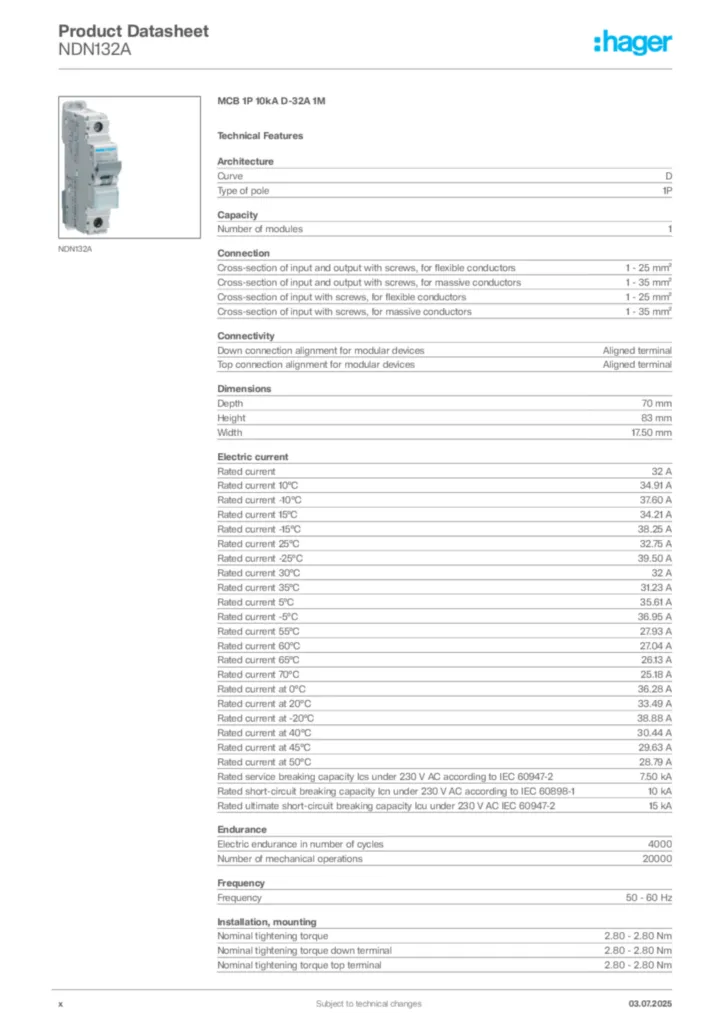

Download the data sheet

Complete your system

Rated current

32 A
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-2

7.50 kA
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1

10 kA
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-2

15 kA
Rated current -25°C

39.50 A
Rated current at -20°C

38.88 A
Rated current -15°C

38.25 A
Rated current -10°C

37.60 A
Rated current -5°C

36.95 A
Rated current at 0°C

36.28 A
Rated current 5°C

35.61 A
Rated current 10°C

34.91 A
Rated current 15°C

34.21 A
Rated current at 20°C

33.49 A
Rated current 25°C

32.75 A
Rated current 30°C

32 A
Rated current 35°C

31.23 A
Rated current at 40°C

30.44 A
Rated current at 45°C

29.63 A
Rated current at 50°C

28.79 A
Rated current 55°C

27.93 A
Rated current 60°C

27.04 A
Rated current 65°C

26.13 A
Rated current 70°C

25.18 A

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²
