The Hager x160 4P 160A 40kA moulded case circuit breaker safeguards three-phase networks against overloads and short circuits. Icu 40 kA at 400 V (25 kA at 240 V), Ui 690 V, Uimp 8 kV suit commercial and industrial feeders. TM A/F trip with 0.63-1 xIn thermal setting tailors protection. IP4X, 50-60 Hz, screw terminals for 4-95 mm² conductors, and 10,000 electrical/20,000 mechanical operations ensure durability.
EAN
3250613131203
Packaging
1 Piece
Moulded Case Circuit Breaker X160 3P 160A 25kA TM A/F IP4X HNA161U
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
DIN rail adapter 1 products available
Technical properties
Electric current
-
Rated current IN160 A
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-240 kA
-
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-225 kA
-
Rated ultimate short-circuit breaking capacity Icu under 690 V AC IEC 60947-24 kA
Architecture
-
Number of poles4
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated impulse withstand voltage Uimp8000 V
-
Rated insulation voltage Ui690 V
-
Rated operational voltage Ue220 - 415 V
Functions
-
Trip unitTM A/F
Power
-
Power dissipation at IN43.80 W
Endurance
-
Electric endurance in number of cycles10000
-
Number of mechanical operations20000
Safety
-
Ingress Protection (IP) classIP4X
Connection
-
Cross-section flexible conductor4 - 70 mm²
-
Cross-section rigid conductor4 - 95 mm²
Installation, mounting
-
Nominal tightening torque6 - 6 Nm
-
Mounting-/Connection PositionFront
Connectivity
-
Type of connectionScrew terminal
Settings
-
Thermal protection knob setting xIN0.63, 0.8, 1
-
Adjustment range short-term delayed short-circuit release0 - 0 A
Downloads
-

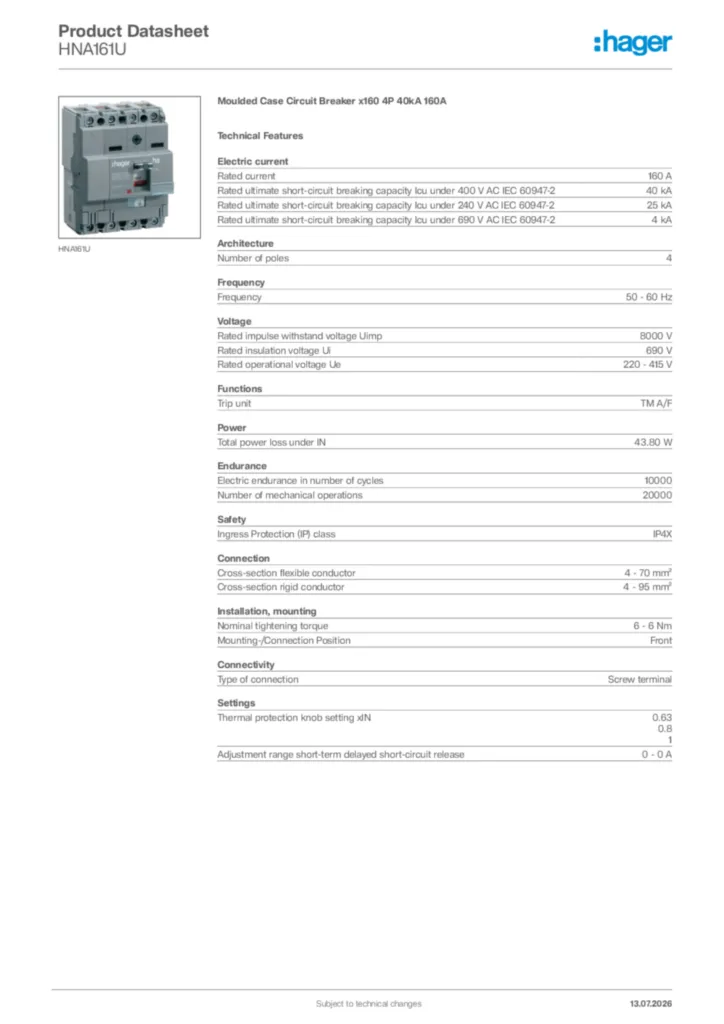

Product datasheet
