Moulded Case Circuit Breaker x160 4P 40kA 125A HNA126U

EAN
3250613131197
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Moulded Case Circuit Breaker x160 4P 40kA 125A

HNA126U

  • Technical properties
  • Documentations
  • More products
Download the data sheet

Technical properties

Elec­tric current
  • Rated current
    125 A
  • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 400 V AC IEC 60947-2
    40 kA
  • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 240 V AC IEC 60947-2
    25 kA
  • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 690 V AC IEC 60947-2
    4 kA
Archi­tec­ture
  • Number of poles
    4
Frequency
  • Frequency
    50 - 60 Hz
Voltage
  • Rated impulse with­stand voltage Uimp
    8000 V
  • Rated insu­la­tion voltage Ui
    690 V
  • Rated oper­a­tional voltage Ue
    220 - 415 V
Func­tions
  • Trip unit
    TM A/F
Power
  • Total power loss under IN
    33 W
Endur­ance
  • Elec­tric endur­ance in number of cycles
    10000
  • Number of mech­an­ical oper­a­tions
    20000
Safety
  • Ingress Protec­tion (IP) class
    IP4X
Connec­tion
  • Cross-sec­tion flex­ible conductor
    4 - 70 mm²
  • Cross-sec­tion rigid conductor
    4 - 95 mm²
Install­a­tion, mounting
  • Nominal tight­ening torque
    6 - 6 Nm
  • Mount­ing-/­Con­nec­tion Posi­tion
    Front
Connectivity
  • Type of connec­tion
    Screw terminal
Settings
  • Thermal protec­tion knob setting xIN
    0.63, 0.8, 1
  • Adjust­ment range short-term delayed short-­cir­cuit release
    0 - 0 A

Downloads

  • Image HNA126U | Hager Africa

    Product Image HNA126U

  • Product datasheet

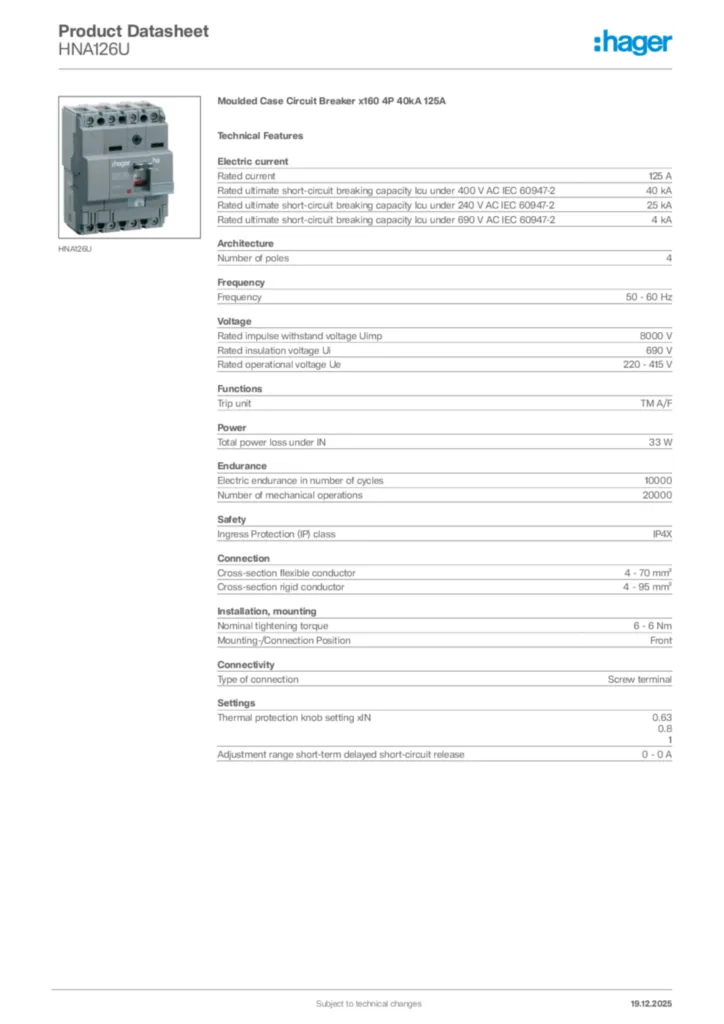

    Image Hager Product data sheet HNA126U | Hager Africa

    Hager Product data sheet HNA126U

    Moulded Case Circuit Breaker x160 4P 40kA 125A

    PDF

  • Declaration of conformity

    Image EU Declaration of Conformity | Hager Africa

    EU Declaration of Conformity

    Declaration of conformity en-GB 2025-03-20

    PDF
    430,96 kB
    Image UKCA Declaration of Conformity | Hager Africa

    UKCA Declaration of Conformity

    Declaration of conformity en-GB 2025-03-20

    PDF
    435,49 kB
