The Hager x160 4P 100A moulded case circuit breaker protects three-phase installations from overloads and short circuits. Icu: 40 kA at 400 V, 25 kA at 240 V, 4 kA at 690 V. Ue 220-415 V, Ui 690 V, Uimp 8 kV, 50/60 Hz. TM A/F trip with adjustable thermal 0.63-1×In. IP4X. 10k electrical/20k mechanical cycles. Screw terminals 4-70 mm² flex, 4-95 mm² rigid. Front mount for panels.
EAN
3250613131180
Packaging
1 Piece
Moulded Case Circuit Breaker x160 4P 80A Icu 25kA TM A/F adjustable thermal HNA101U
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
DIN rail adapter 1 products available
Technical properties
Electric current
-
Rated current IN100 A
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-240 kA
-
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-225 kA
-
Rated ultimate short-circuit breaking capacity Icu under 690 V AC IEC 60947-24 kA
Architecture
-
Number of poles4
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated impulse withstand voltage Uimp8000 V
-
Rated insulation voltage Ui690 V
-
Rated operational voltage Ue220 - 415 V
Functions
-
Trip unitTM A/F
Power
-
Power dissipation at IN35.70 W
Endurance
-
Electric endurance in number of cycles10000
-
Number of mechanical operations20000
Safety
-
Ingress Protection (IP) classIP4X
Connection
-
Cross-section flexible conductor4 - 70 mm²
-
Cross-section rigid conductor4 - 95 mm²
Installation, mounting
-
Nominal tightening torque6 - 6 Nm
-
Mounting-/Connection PositionFront
Connectivity
-
Type of connectionScrew terminal
Settings
-
Thermal protection knob setting xIN0.63, 0.8, 1
-
Adjustment range short-term delayed short-circuit release0 - 0 A
Downloads
-

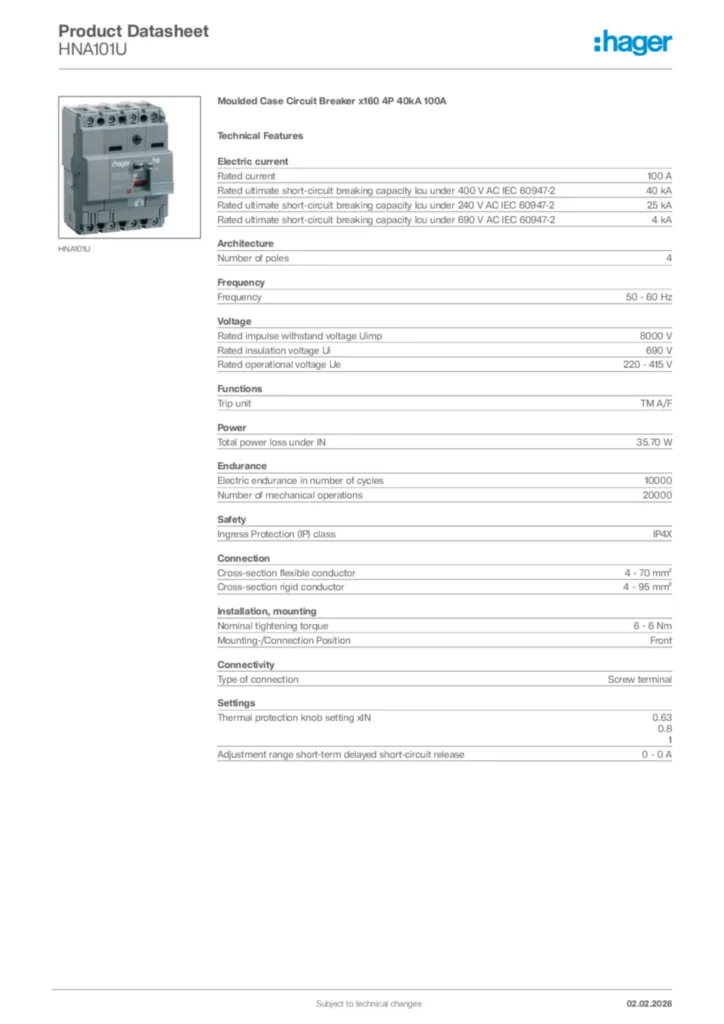

Product datasheet
Hager Product data sheet HNA101U
Moulded Case Circuit Breaker x160 4P 40kA 100A
PDF -
Installation manual
Installation manual International 2021-06-07
PDF8,51 MB -
Declaration of conformity
Declaration of conformity en-US 2026-07-14
PDF346,59 kB
