The Hager h3 x160 TM ADJ 4P moulded case circuit breaker protects feeders in commercial/industrial panels. Rated 63A, it delivers Icu 25kA at 400V (35kA at 240V) and Ics up to 20kA. Adjustable thermal trip 0.63-1 x In with magnetic protection, 50/60Hz, Ue 220-415V, Ui 690V, Uimp 8kV. IP4X, 10k electrical/20k mechanical cycles. Screw terminals for 4-70 mm² flex or 4-95 mm² rigid conductors.
EAN
3250613131098
Packaging
1 Piece
Moulded Case Circuit Breaker 4P 100A Icu 25kA TM adjustable 0.63-1 xIn HHA064U
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
DIN rail adapter 1 products available
Technical properties
Electric current
-
Rated current IN63 A
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-225 kA
-
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-235 kA
-
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-225 kA
-
Rated ultimate short-circuit breaking capacity Icu under 690 V AC IEC 60947-24 kA
-
Rated service breaking capacity Ics under 400 V AC according to IEC 60947-220 kA
Architecture
-
Number of poles4
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated impulse withstand voltage Uimp8000 V
-
Rated insulation voltage Ui690 V
-
Rated operational voltage Ue220 - 415 V
Functions
-
Trip unitTM A/F
Power
-
Power dissipation at IN30 W
Endurance
-
Electric endurance in number of cycles10000
-
Number of mechanical operations20000
Safety
-
Ingress Protection (IP) classIP4X
Connection
-
Cross-section flexible conductor4 - 70 mm²
-
Cross-section rigid conductor4 - 95 mm²
Installation, mounting
-
Nominal tightening torque6 - 6 Nm
-
Mounting-/Connection PositionFront
Connectivity
-
Type of connectionScrew terminal
Settings
-
Thermal protection knob setting xIN0.63, 0.8, 1
-
Adjustment range short-term delayed short-circuit release0 - 0 A
Dimensions
-
Height130 mm
-
Width100 mm
-
Depth68 mm
Downloads
-
Product datasheet

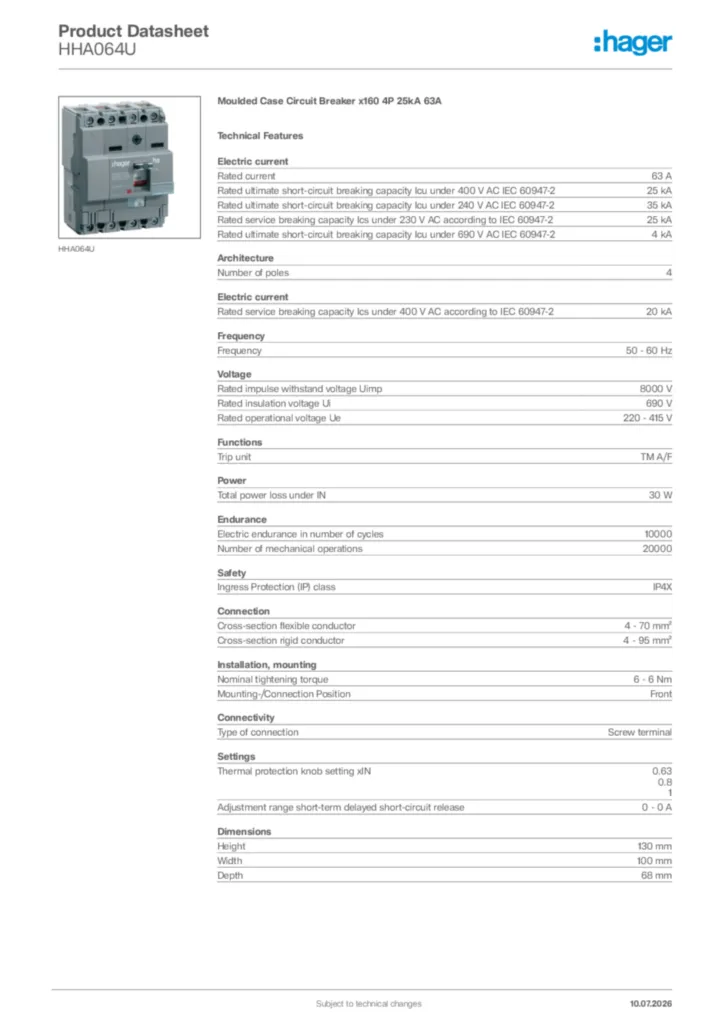

Hager Product data sheet HHA064U
