Moulded Case Circuit Breaker X160 1P 25kA 16A HHA014Z

EAN
3250613135942
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Moulded Case Circuit Breaker X160 1P 25kA 16A

HHA014Z

  • Accessories
  • Technical properties
  • Documentations
  • More products

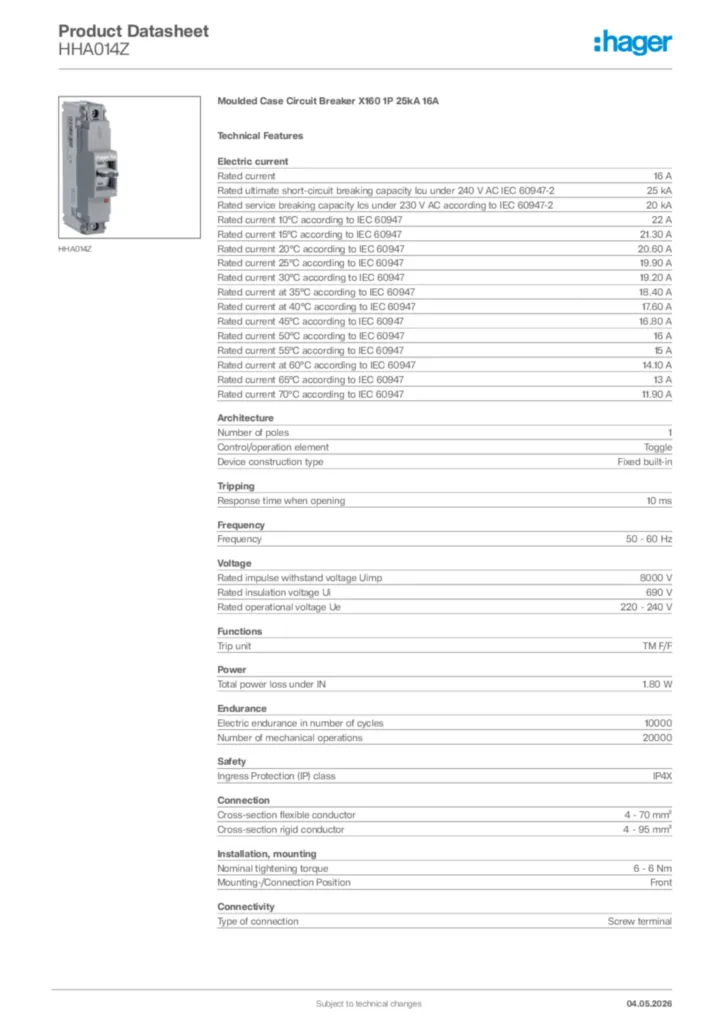

Download the data sheet

Complete your system

Optional accessories

  • Terminal cover 1 products available

Complete your system

  • Terminal cover
  • HYA026H

    Terminal cover x160 4P short
    0.00 €  / *

Technical properties

Elec­tric current
  • Rated current
    16 A
  • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 240 V AC IEC 60947-2
    25 kA
  • Rated service breaking capa­city Ics under 230 V AC according to IEC 60947-2
    20 kA
  • Rated current 10°C according to IEC 60947
    22 A
  • Rated current 15°C according to IEC 60947
    21.30 A
  • Rated current 20°C according to IEC 60947
    20.60 A
  • Rated current 25°C according to IEC 60947
    19.90 A
  • Rated current 30°C according to IEC 60947
    19.20 A
  • Rated current at 35°C according to IEC 60947
    18.40 A
  • Rated current at 40°C according to IEC 60947
    17.60 A
  • Rated current 45°C according to IEC 60947
    16.80 A
  • Rated current 50°C according to IEC 60947
    16 A
  • Rated current 55°C according to IEC 60947
    15 A
  • Rated current at 60°C according to IEC 60947
    14.10 A
  • Rated current 65°C according to IEC 60947
    13 A
  • Rated current 70°C according to IEC 60947
    11.90 A
Archi­tec­ture
  • Number of poles
    1
  • Control/­op­er­a­tion element
    Toggle
  • Device construc­tion type
    Fixed built-in
Trip­ping
  • Response time when opening
    10 ms
Frequency
  • Frequency
    50 - 60 Hz
Voltage
  • Rated impulse with­stand voltage Uimp
    8000 V
  • Rated insu­la­tion voltage Ui
    690 V
Func­tions
  • Trip unit
    TM F/F
Power
  • Total power loss under IN
    1.80 W
Endur­ance
  • Elec­tric endur­ance in number of cycles
    10000
  • Number of mech­an­ical oper­a­tions
    20000
Safety
  • Ingress Protec­tion (IP) class
    IP4X
Connec­tion
  • Cross-sec­tion flex­ible conductor
    4 - 70 mm²
  • Cross-sec­tion rigid conductor
    4 - 95 mm²
Connectivity
  • Type of connec­tion
    Screw terminal
Settings
  • Thermal protec­tion knob setting xIN
    1, 1
  • Adjust­ment range short-term delayed short-­cir­cuit release
    0 - 0 A
Compat­ib­ility
  • Suit­able for DIN Rail
    No
Install­a­tion, mounting
  • Nominal tight­ening torque
    6 - 6 Nm
  • Mount­ing-/­Con­nec­tion Posi­tion
    Front
Main elec­trical attrib­utes
  • Magnetic protec­tion trip time
    0 - 0 ms
