    • AF970B
    EAN
    3250611060031
    Packaging
    1 Piece

    RCBO 1P+N 6kA C-20A 300mA AC Class AF970B

    Phase out product: please contact your electrical wholesaler for availability

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    RCBO 1P+N 6kA C-20A 300mA AC Class

    AF970B

    • Technical properties
    • Documentations
    Download the data sheet

    Technical properties

    Archi­tec­ture
    • Type of pole
      1P+N
    • Number of protected poles
      1
    • Curve
      C
    Safety
    • Residual current type
      AC
    • Ingress Protec­tion (IP) class
      IP20
    Main elec­trical attrib­utes
    • Rated short-­cir­cuit breaking capa­city Icn AC according to IEC 60898-1
      6 kA
    Voltage
    • Rated insu­la­tion voltage Ui
      500 V
    • Rated impulse with­stand voltage Uimp
      4000 V
    • Max. oper­ating voltage
      240 V
    • Rated oper­a­tional voltage Ue
      240 - 240 V
    • Over­voltage category according to IEC 60947-1
      3
    Elec­tric current
    • Rated current IN
      20 A
    • Rated residual oper­ating current Idn
      300 mA
    • Rated current at -25°C
      22.74 A
    • Rated current at -20°C
      22.49 A
    • Rated current at -15°C
      22.24 A
    • Rated current at -10°C
      21.99 A
    • Rated current at -5°C
      21.74 A
    • Rated current at 0°C
      21.49 A
    • Rated current at 5°C
      21.24 A
    • Rated current at 10°C
      21 A
    • Rated current at 15°C
      20.75 A
    • Rated current at 20°C
      20.5 A
    • Rated current at 25°C
      20.25 A
    • Rated current at 30°C
      20 A
    • Rated current at 35°C
      19.8 A
    • Rated current at 40°C
      19.59 A
    • Rated current at 45°C
      19.39 A
    • Rated current at 50°C
      19.18 A
    • Rated current at 55°C
      18.98 A
    • Rated current at 60°C
      18.77 A
    • Correc­tion factor of rating current for 2 devices placed side by side
      1
    • Min./max. threshold value of the AC thermal oper­a­tion
      1.13 - 1.45 A
    • Rated service breaking capa­city Ics AC according to IEC 60898-1
      6 kA
    Power
    • Power dissip­a­tion at IN
      5.20 W
    Frequency
    • Frequency
      50 - 50 Hz
    Install­a­tion, mounting
    • Nominal tight­ening torque down terminal
      2.10 - 2.10 Nm
    • Nominal tight­ening torque top terminal
      2.10 - 2.10 Nm
    • Type of bottom connec­tion for modular devices
      bicon­nect
    Use condi­tions
    • Max. alti­tude
      2000 m
    • Class of energy limit­a­tion I²t
      3
    • Oper­ating temper­ature
      -25 - 40 °C
    • Stor­age/trans­port temper­ature
      -25 - 70 °C
    • Degree of pollu­tion according to IEC 60664 / IEC 60947-2
      2
    • Air humidity protec­tion
      For all climates
    Endur­ance
    • Elec­tric endur­ance in number of cycles
      2000
    • Number of mech­an­ical oper­a­tions
      2000
    Connec­tion
    • Cross-sec­tion flex­ible conductor
      1 - 16 mm²
    • Cross-sec­tion rigid conductor
      1 - 25 mm²
    • Cross-sec­tion of input with screws, for flex­ible conductors
      1 - 16 mm²
    • Cross-sec­tion of input with screws, for massive conductors
      1 - 25 mm²
    • Cross-sec­tion of input and output with screws, for flex­ible conductors
      1 - 16 mm²
    • Cross-sec­tion of input and output with screws, for massive conductors
      1 - 25 mm²
    Capa­city
    • Number of modules
      2
    Dimen­sions
    • Height
      83 mm
    • Width
      35 mm
    • Depth
      68 mm

    Downloads

    • Image AF970B | Hager Africa

      Product Image AF970B

    • Product datasheet

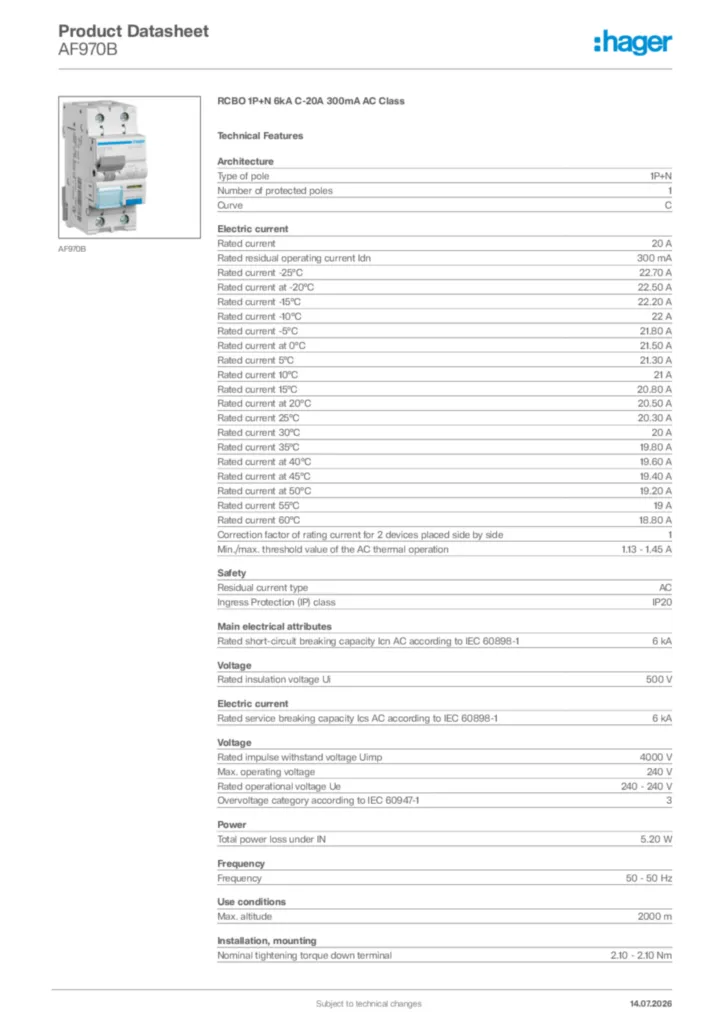

      Image Hager Product data sheet AF970B | Hager Africa
