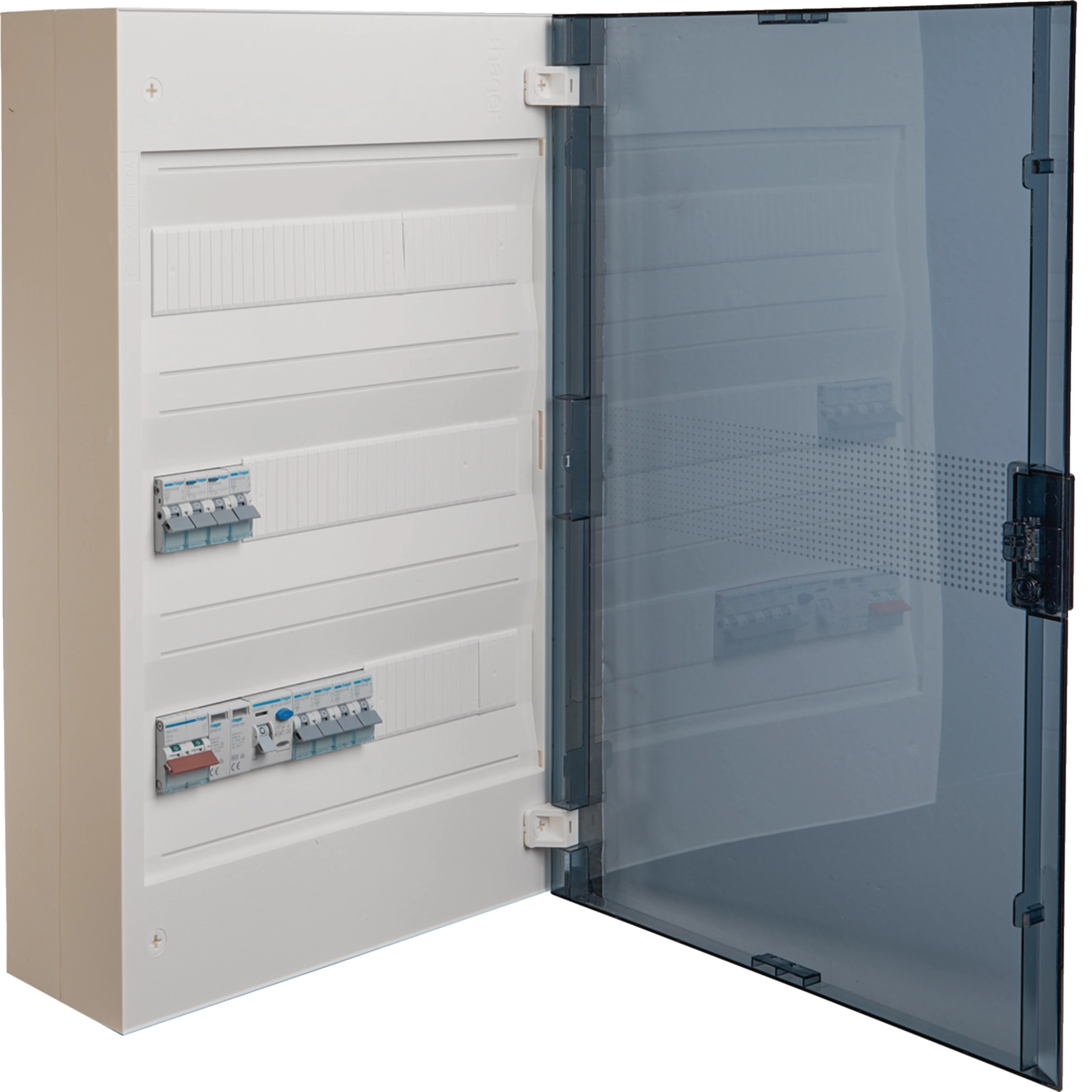

Vega,3Row,5/8 WAY SPLIT LOAD CU,T/DOOR,2P ISOLATOR,SPD,1xRCD,2x6A LIGHTING RCBOs VBE98101TSPD
EAN
3250611025986
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Installation, mounting
-
Mounting onSurface mounting
-
Suitable for outdoor usageNo
Functions
-
Has protection main switchNo
-
Overvoltage protectionYes
Configuration
-
Number of arc fault detection devices AFDD0
Capacity
-
Number of modules54
Electric current
-
Rated current80 A
Dimensions
-
Depth145 mm
-
Height600 mm
-
Width370 mm
-
Number of width units18
-
Thickness of sidewall2.50 mm
Cover, door
-
InterlockableYes
-
Door/cover is transparentYes
Materials
-
RAL code9010
-
ColourPure white
-
MaterialPolystyrene (PS)
Connection
-
Number of accessible phases1
Scope of delivery
-
Number of earth leakage circuit breaker type A3
-
Number of RCCB in enclosure1
Equipment
-
Number of light groups2
-
Number of rows3
-
With energy meterNo
-
Number of rails3
-
With bell transformerNo
Safety
-
Impact resistance IKIK07
-
Ingress Protection (IP) classIP40
-
Protection classIsolation class II
