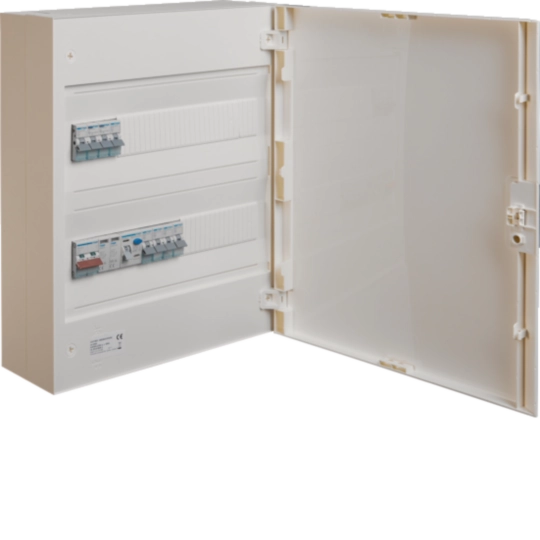

VBE88101PSPD - Vega,2Row,5/8 WAY SPLIT LOAD CU,P/DOOR,2P ISOLATOR,SPD,1xRCD,2x6A LIGHTING RCBOs
VBE88101PSPD
Vega,2Row,5/8 WAY SPLIT LOAD CU,P/DOOR,2P ISOLATOR,SPD,1xRCD,2x6A LIGHTING RCBOs
4
VBE98101TSPD - Vega,3Row,5/8 WAY SPLIT LOAD CU,T/DOOR,2P ISOLATOR,SPD,1xRCD,2x6A LIGHTING RCBOs
VBE98101TSPD
Vega,3Row,5/8 WAY SPLIT LOAD CU,T/DOOR,2P ISOLATOR,SPD,1xRCD,2x6A LIGHTING RCBOs

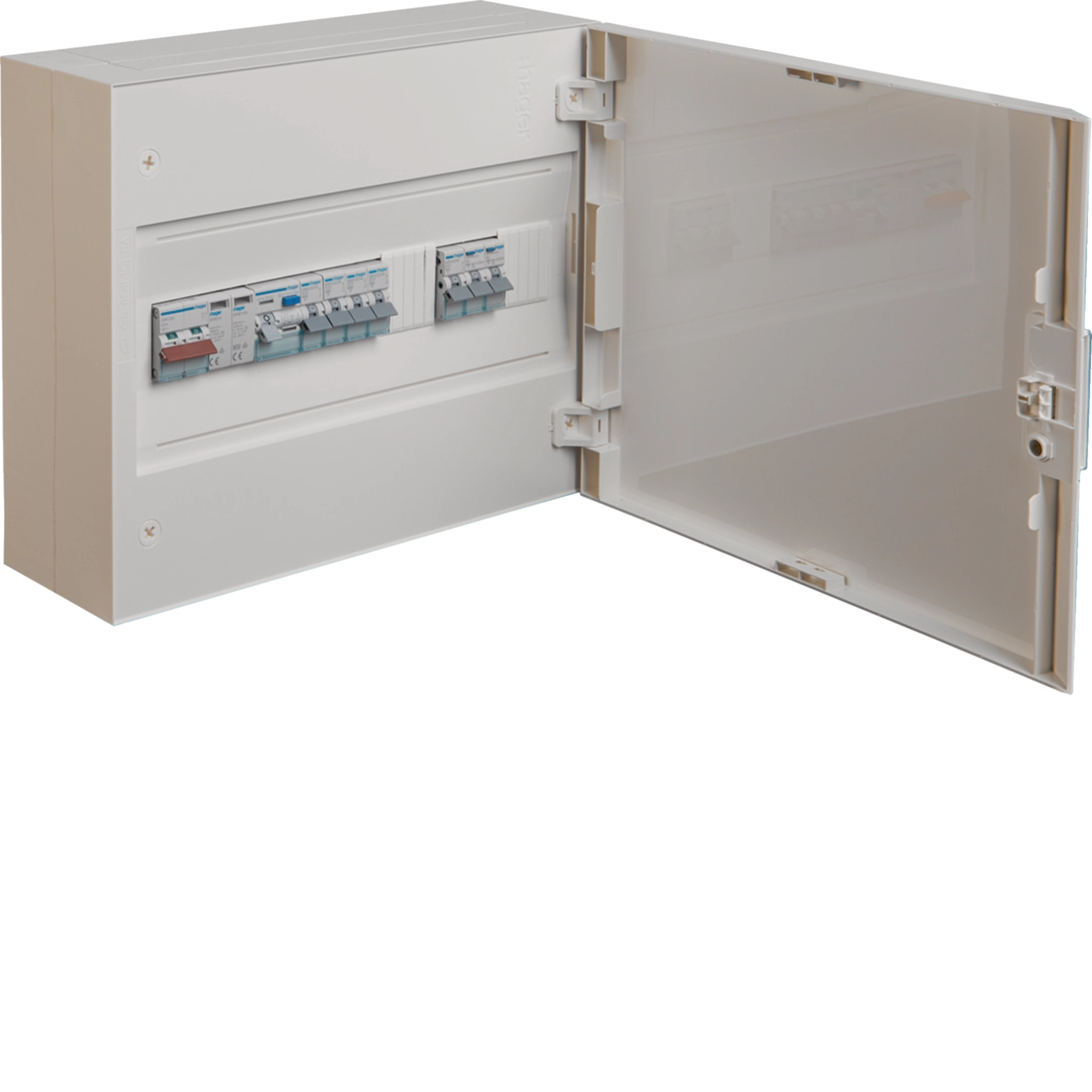

Vega 1Row 7W 1RCD - 2x6A Ltg. RCBOs SPD

VB7101PSPD

  • Distri­bu­tion systems

Vega 1Row 7W 1RCD - 2x6A Ltg. RCBOs SPD VB7101PSPD

EAN
3250619925455
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Technical properties
  • Environmental value
  • Documentations
  • More products

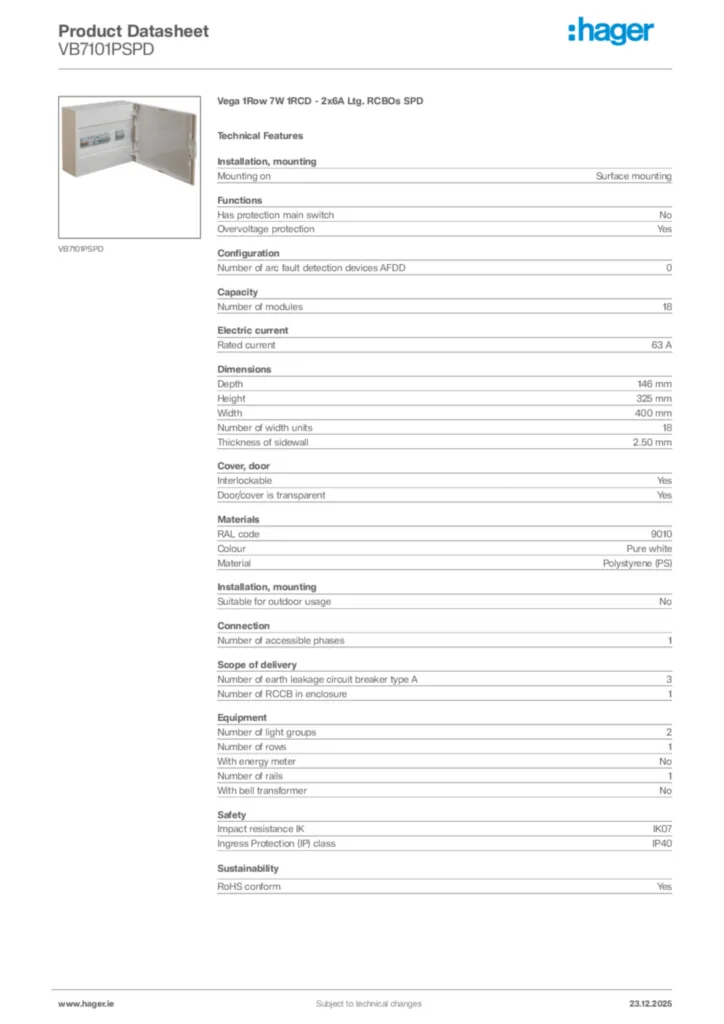

Download the data sheet

Technical properties

Install­a­tion, mounting
  • Mounting on
    Surface mounting
  • Suit­able for outdoor usage
    No
Func­tions
  • Has protec­tion main switch
    No
  • Overvoltage protec­tion
    Yes
Config­ur­a­tion
  • Number of arc fault detec­tion devices AFDD
    0
Capa­city
  • Number of modules
    18
Elec­tric current
  • Rated current
    63 A
Dimen­sions
  • Depth
    146 mm
  • Height
    325 mm
  • Width
    400 mm
  • Number of width units
    18
  • Thick­ness of side­wall
    2.50 mm
Cover, door
  • Inter­lock­able
    Yes
  • Door/­cover is trans­parent
    Yes
Mater­ials
  • RAL code
    9010
  • Colour
    Pure white
  • Material
    Poly­styrene (PS)
Connec­tion
  • Number of access­ible phases
    1
Scope of delivery
  • Number of earth leakage circuit breaker type A
    3
  • Number of RCCB in enclosure
    1
Equip­ment
  • Number of light groups
    2
  • Number of rows
    1
  • With energy meter
    No
  • Number of rails
    1
  • With bell trans­former
    No
Safety
  • Impact resist­ance IK
    IK07
  • Ingress Protec­tion (IP) class
    IP40
