EAN

3250615703033

Packaging

6 Pieces

Transformers, socket outlets and compact luminaires

Bell transformer 8VA 230V 8-12V ST303

Technical properties
Documentations
More products

Download the data sheet

Technical properties

Output voltage

8 - 12 V
Rated operational voltage Ue

230 - 230 V
Output voltage 2

12 V
Rated insulation voltage Ui

4,000 V

Number of modules

2

Power consumption VA

8 VA
Power

8 VA
Power absorbed

8 W

Height

111 mm
Width

35 mm
Depth

65 mm

Ingress Protection (IP) class

IP20
Temperature protection

Yes

Is short-circuit protected

Yes
On/off switch

No

Operating temperature

-20 - 35 °C

Cross-section flexible conductor

4 mm²
Cross-section rigid conductor

6 mm²

Frequency

50 - 50 Hz

Intensity output 1

1 A
Intensity output 2

0.67 A
Max. intensity of secondary

1 A

Mounting on

DIN rail
Nominal tightening torque

1.20 - 1.20 Nm

Number of half modules of 17,5 mm

4

Suitable for DIN Rail

Yes

Downloads

Product image

Product Image ST303

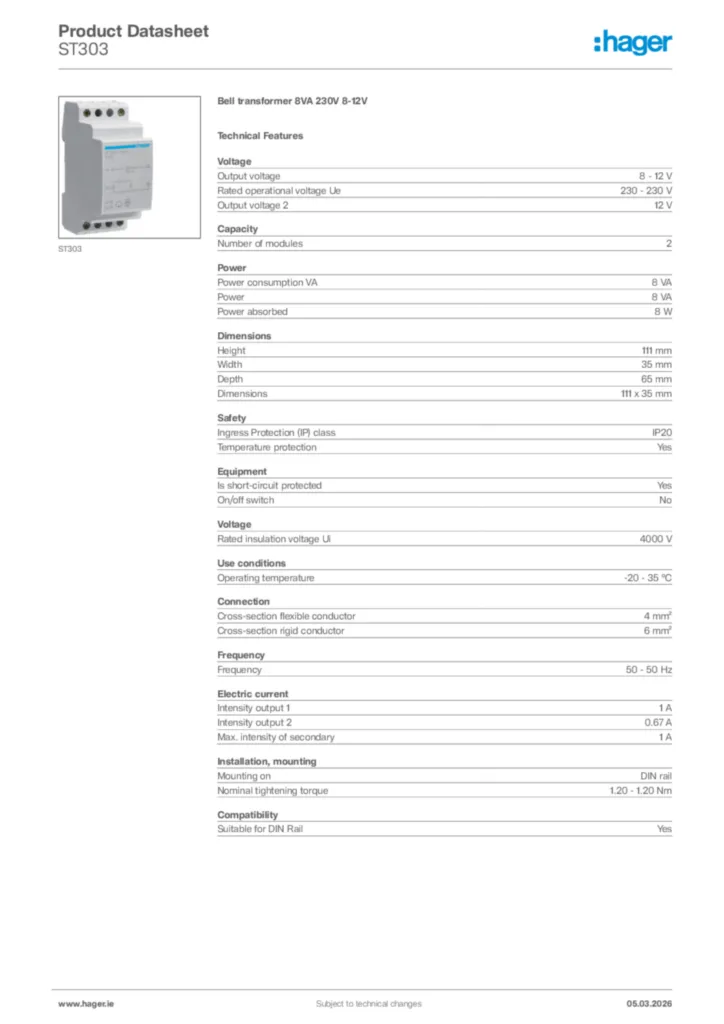

Product datasheet
