3-pole, 32A Modular Switch SBN332
Phase out product: please contact your electrical wholesaler for availability
catalog.product_page.follow_up.title
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Locking interlocking functions 1 product.page.accessories.products-available -
Auxiliary device for distribution board devices 1 product.page.accessories.products-available
product.page.accessories.title-modal
catalog.pageproduct.tab_additional_title.link
Architecture
-
Number of poles3
-
Control/operation elementBreak switch
-
Type of pole3P
Electric current
-
Rated current IN32 A
-
Acceptable current rating AC21 category A32 A
-
Acceptable current rating AC21 category B32 A
-
Acceptable current rating AC22 category A32 A
-
Acceptable current rating AC22 category B32 A
-
Rated short-circuit making capacity Icm under 415 V AC according to IEC 60947-30.67 kA
-
Rated short-time withstand current Icw 1s IEC 609470.48 kA
-
Rated conditional short-circuit current Inc with fuse according to IEC/EN 60669-2-43000A/80A gG parallel 32A gG
Installation, mounting
-
Nominal tightening torque1.80 - 1.80 Nm
-
Suitable for outdoor usagecatalog.pageproduct.attribute_boolean.no
-
Type of bottom connection for modular devicesScrew terminal
Voltage
-
Rated operational voltage Ue400 - 400 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui440 V
-
Rated impulse withstand voltage Uimp4,000 V
Capacity
-
Number of modules2
Safety
-
Ingress Protection (IP) classIP20
Frequency
-
Frequency50 - 60 Hz
Dimensions
-
Height83 mm
-
Width35 mm
-
Depth68 mm
Equipment
-
Number of NO contacts3
-
Number of NC contacts0
Use conditions
-
Operating temperature-20 - 70 °C
-
Storage/transport temperature-40 - 80 °C
Connection
-
Cross-section flexible conductor1.5 - 10 mm²
-
Cross-section rigid conductor1.5 - 16 mm²
Endurance
-
Number of mechanical operations200,000
-
Electrical durability at nominal load in AC21 in operating cycles25,000
-
Electrical durability at nominal load in AC22 in operating cycles25,000
Power
-
Power dissipation at IN4.50 W
-
Power loss per pole at In1.50 W
Connectivity
-
Down connection alignment for modular devicesShifted terminal
-
Top connection alignment for modular devicesShifted terminal
Compatibility
-
Suitable for DIN Railcatalog.pageproduct.attribute_boolean.yes
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers catalog.pageproduct.product_description_learn_more.link
catalog.pageproduct.sustainability_block.downloads_h3
catalog.pageproduct.title_asset.h2
-
Product image
-
GeneratedProductDatasheet

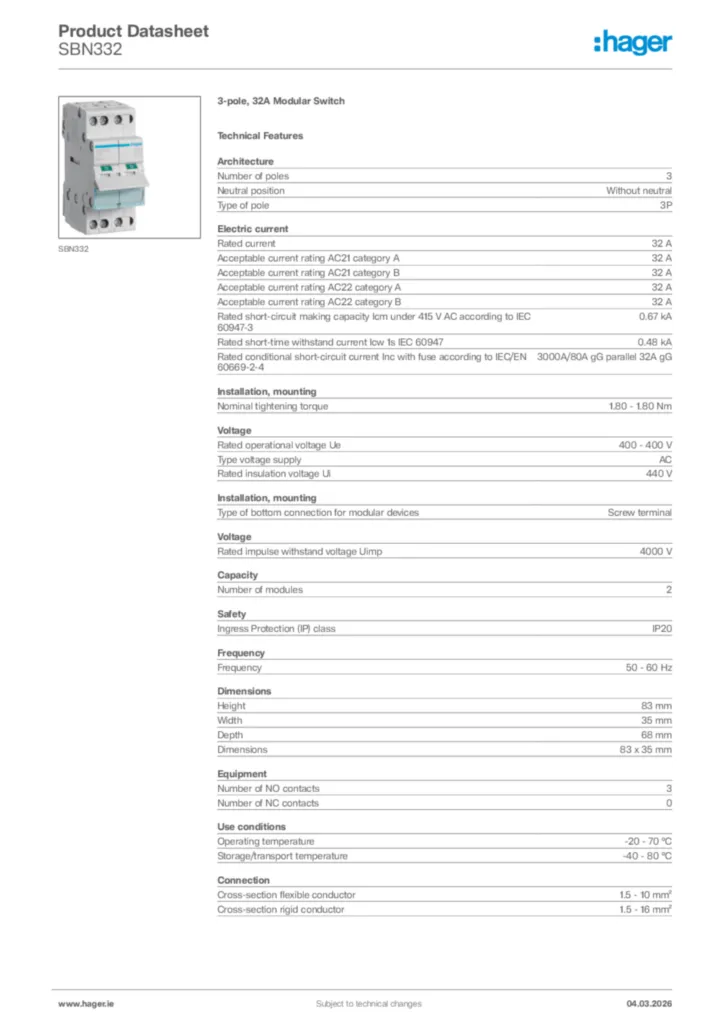

Hager Product data sheet SBN332
