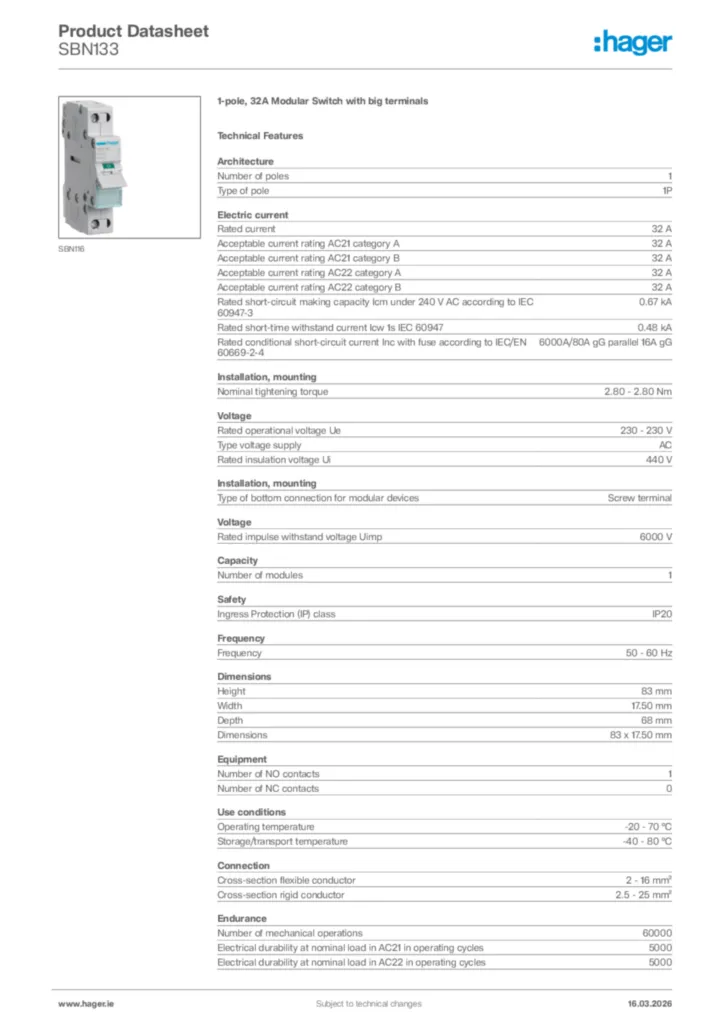

1-pole, 32A Modular Switch with big terminals SBN133
EAN
3250615511782
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Auxiliary device for distribution board devices 1 products available -
Locking interlocking functions 1 products available
Technical properties
Architecture
-
Number of poles1
-
Neutral positionWithout neutral
-
Type of pole1P
Electric current
-
Rated current32 A
-
Breaking capacity 400 V AC23A677 A
-
Rated conditional short-circuit current Icc with gl-gG fuses0.48 kA
-
Acceptable current rating AC21 category A32 A
-
Acceptable current rating AC21 category B32 A
-
Acceptable current rating AC22 category A32 A
-
Acceptable current rating AC22 category B32 A
-
Rated short-circuit making capacity Icm under 240 V AC according to IEC 60947-30.67 kA
-
Rated short-time withstand current Icw 1s IEC 609470.48 kA
Installation, mounting
-
Nominal tightening torque2.80 - 2.80 Nm
-
Type of bottom connection for modular devicesScrew terminal
Voltage
-
Rated operational voltage Ue230 - 230 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui440 V
-
Rated impulse withstand voltage Uimp6,000 V
Capacity
-
Number of modules1
Safety
-
Ingress Protection (IP) classIP20
Frequency
-
Frequency50 - 60 Hz
Dimensions
-
Height83 mm
-
Width17.50 mm
-
Depth68 mm
Equipment
-
Number of NO contacts1
-
Number of NC contacts0
Use conditions
-
Operating temperature-20 - 70 °C
-
Storage/transport temperature-40 - 80 °C
Connection
-
Cross-section flexible conductor2 - 16 mm²
-
Cross-section rigid conductor2.5 - 25 mm²
Endurance
-
Number of mechanical operations60,000
-
Electrical durability at nominal load in AC21 in operating cycles5,000
-
Electrical durability at nominal load in AC22 in operating cycles5,000
Power
-
Total power loss under IN1.20 W
-
Power loss per pole at In1.20 W
Connectivity
-
Down connection alignment for modular devicesShifted terminal
-
Top connection alignment for modular devicesShifted terminal
