MCB 3P 6kA B-20A 3M MT320A
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Mechanic accessories for low-voltage components 1 product.page.accessories.products-available
catalog.pageproduct.tab_additional_title.link
Electric current
-
Rated current IN20 A
-
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-110 kA
-
Rated current at -15°C23.91 A
-
Rated current at -10°C23.47 A
-
Rated current at -5°C23.04 A
-
Rated current at 0°C22.6 A
-
Rated current at 5°C22.17 A
-
Rated current at 10°C21.74 A
-
Rated current at 15°C21.3 A
-
Rated current at 20°C20.87 A
-
Rated current at 25°C20.43 A
-
Rated current at 30°C20 A
-
Rated current at 35°C19.5 A
-
Rated current at 40°C19.01 A
-
Rated current at 45°C18.51 A
-
Rated current at 50°C18.02 A
-
Rated current at 55°C17.52 A
-
Rated current at 60°C17.02 A
-
Rated current at 65°C16.53 A
-
Rated current at 70°C16.03 A
-
Rated short-circuit breaking capacity Icn under 400 V AC according to IEC 60898-16 kA
Architecture
-
Type of pole3P
-
CurveB
Capacity
-
Number of modules3
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-16 kA
Installation, mounting
-
Nominal tightening torque top terminal2.80 - 2.80 Nm
-
Nominal tightening torque down terminal2.80 - 2.80 Nm
-
Nominal tightening torque2.80 - 2.80 Nm
-
Type of bottom connection for modular devicesbiconnect
-
Type of top connection for modular devicesScrew terminal
-
360° mounting position possiblecatalog.pageproduct.attribute_boolean.yes
Voltage
-
Rated operational voltage Ue230 - 400 V
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4,000 V
Frequency
-
Frequency50 - 60 Hz
Connection
-
Cross-section of input and output with screws, for massive conductors1 - 35 mm²
-
Cross-section of input and output with screws, for flexible conductors1 - 25 mm²
-
Cross-section of input with screws, for flexible conductors1 - 25 mm²
-
Cross-section of input with screws, for massive conductors1 - 35 mm²
-
Cross-section flexible conductor1 - 25 mm²
-
Cross-section rigid conductor1 - 35 mm²
Safety
-
Ingress Protection (IP) classIP20
-
Grid distance35 mm
Use conditions
-
Degree of pollution according to IEC 60664 / IEC 60947-22
-
Class of energy limitation I²t3
-
Air humidity protectionFor all climates
-
Operating temperature-25 - 70 °C
Power
-
Power dissipation at IN8.70 W
Connectivity
-
Top connection alignment for modular devicesAligned terminal
-
Down connection alignment for modular devicesAligned terminal
-
Type of connectionScrew terminal
Dimensions
-
Height83 mm
-
Width52.50 mm
-
Depth70 mm
Endurance
-
Electric endurance in number of cycles4,000
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers catalog.pageproduct.product_description_learn_more.link
catalog.pageproduct.sustainability_block.downloads_h3
catalog.pageproduct.title_asset.h2
-
Product image
-
GeneratedProductDatasheet

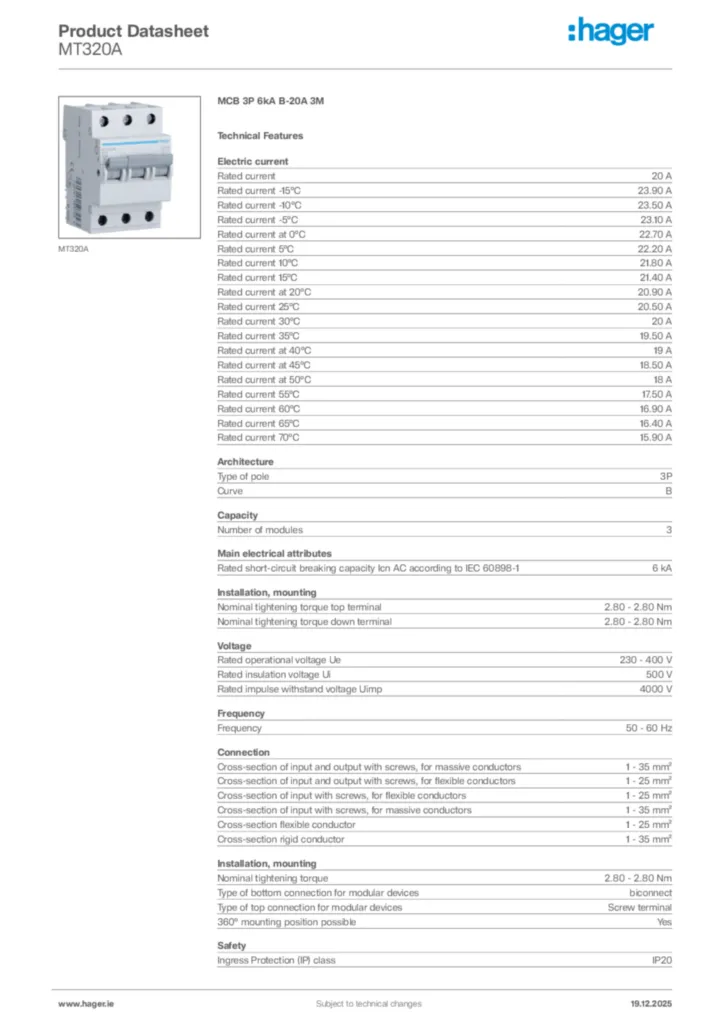

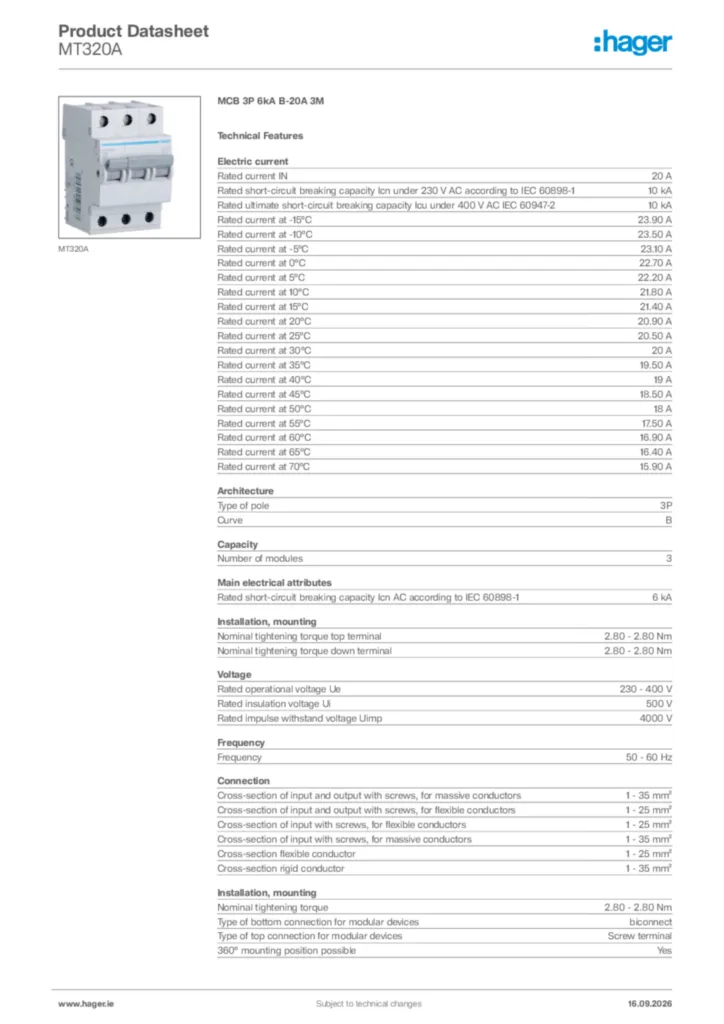

Hager Product data sheet MT320A
