Insulated busbar 1P 100A fork 20mm² 57M KD190B

EAN
3250613740481
Packaging
10 Pieces

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Insulated busbar 1P 100A fork 20mm² 57M

KD190B

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • Protective cap/strip for phase busbar 1 products available

Complete your system

  • Protective cap/strip for phase busbar
  • KZ059

    Protective cover
    0.00 €  / *

Technical properties

Elec­tric current
  • Rated current
    100 A
Archi­tec­ture
  • Number of poles
    1
Dimen­sions
  • Length
    1,000 mm
Voltage
  • Rated impulse with­stand voltage Uimp
    4,000 V
  • Rated oper­a­tional voltage Ue
    415 - 415 V
Connec­tion
  • Cross-sec­tion rigid conductor
    20 mm²
  • Connect­or/plug type
    Phase busbar with fork
Capa­city
  • Number of modules
    57

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

Certifications and documents

Insulated busbar 3P 63A fork 10mm² 12M
PDF
470,84 kB
Hager REACH declaration KD190B
PDF
Hager RoHS report KD190B
PDF

Downloads

  • Product image

    Image KD190B | Hager

    Product Image KD190B

  • Product datasheet

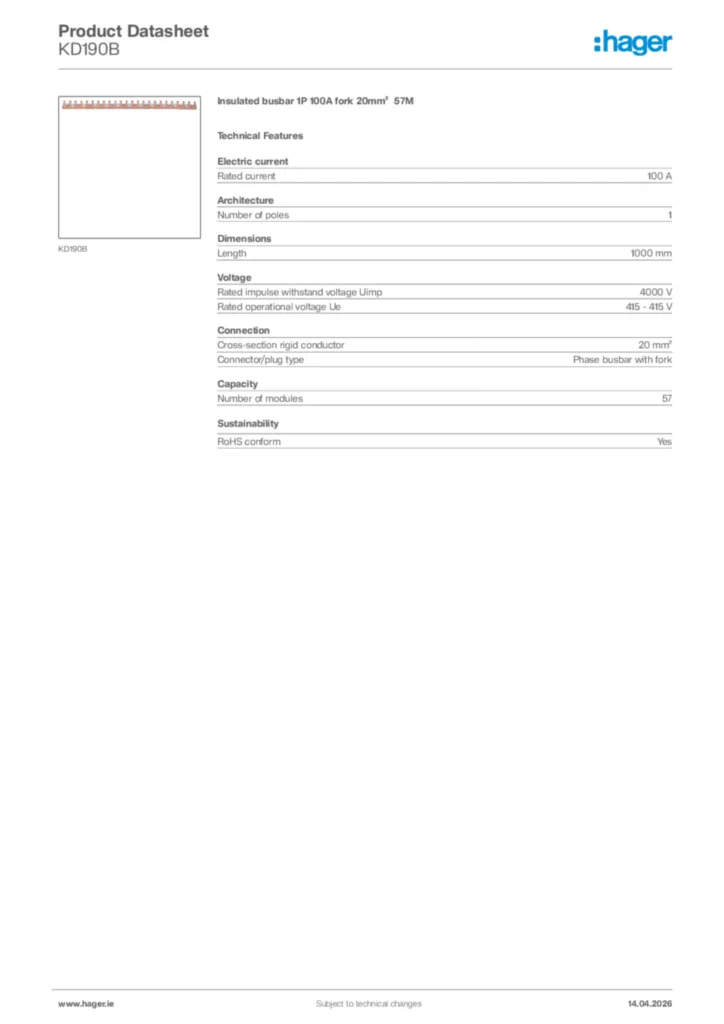

    Image Hager Product data sheet KD190B | Hager

    Hager Product data sheet KD190B

    Insulated busbar 1P 100A fork 20mm² 57M

    PDF

  • Declaration of conformity

    Image Declaration of conformity en-GB 2025-10-20 | Hager

    Declaration of conformity en-GB 2025-10-20

    PDF
    839,22 kB
    Image Declaration of conformity en-GB 2025-10-20 | Hager

    Declaration of conformity en-GB 2025-10-20

    PDF
    860,43 kB
