Insulated busbar 3P+N 80A prong 16mm² 57M KB480B
EAN
3250613720179
Packaging
10 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Protective cap/strip for phase busbar 1 products available
Technical properties
Electric current
-
Rated current80 A
Architecture
-
Number of poles4
Dimensions
-
Length1,000 mm
Voltage
-
Rated impulse withstand voltage Uimp4,000 V
-
Rated operational voltage Ue230 - 400 V
Connection
-
Cross-section rigid conductor16 mm²
-
Connector/plug typePhase busbar with pin
Capacity
-
Number of modules57
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

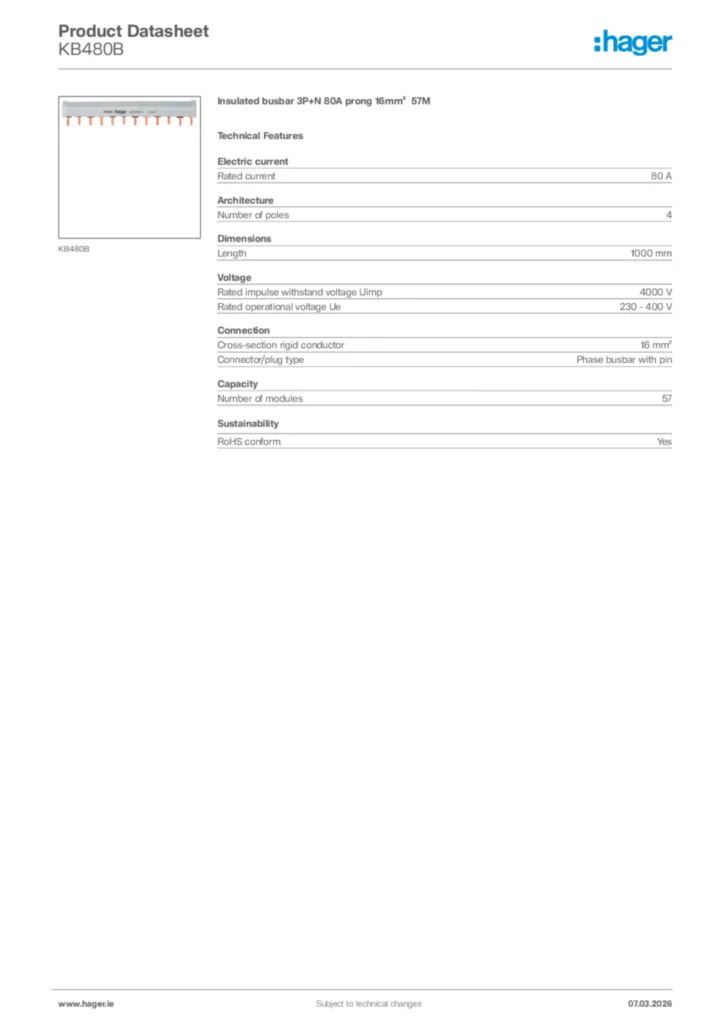

Hager Product data sheet KB480B
Insulated busbar 3P+N 80A prong 16mm² 57M
PDF -
Declaration of conformity
Declaration of conformity en-GB 2025-10-20
PDF839,22 kB
Declaration of conformity en-GB 2025-10-20
PDF860,43 kB
