125A Pulsed & ModBus Meter MID Extension Box JKD1125MID
EAN
5015652607304
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 14 products available
Referenced by
-
JK124BG125A 24 Way TPN Board Glazed Door
-
JK124B125A 24 Way TPN Board Plain Door
-
JK118BG125A 18 Way TPN Board Glazed Door
-
JK118B125A 18 Way TPN Board Plain Door
-
JK116BG125A 16 Way TPN Board Glazed Door
-
JK116B125A 16 Way TPN Board Plain door
-
JK112BG125A 12 Way TPN Board Glazed Door
-
JK112B
125A 12 Way TPN Board Plain Door
-
JK108BG125A 8 Way TPN Board Glazed Door
-
JK108B
125A 8 Way TPN Board Plain Door
-
JK106BG125A 6 Way TPN Board Glazed Door
-
JK106B
125A 6 Way TPN Board Plain Door
-
JK104BG125A 4 Way TPN Board Glazed Door
-
JK104B125A 4 Way TPN Board Plain Door
Technical properties
Architecture
-
Type of pole3P+N
Electric current
-
Rated current125 A
Capacity
-
Number of modules4
Dimensions
-
Height300 mm
-
Width465 mm
-
Depth132.50 mm
Installation, mounting
-
Mounting onSurface mounting
Measurement
-
Measuring systemMeasurement transformer
-
Type of measuring instrumentDigital
-
Current measurement range5 - 6,000 A
Power supply
-
Number of phases for power supply3
Functions
-
Accuracy class0.005
-
Tariff typeMulti-tariff
-
Is calibratedYes
Safety
-
Ingress Protection (IP) classIP2XC
Use conditions
-
Operating temperature-10 - 55 °C
-
Storage/transport temperature-20 - 75 °C
Frequency
-
Frequency50 - 50 Hz
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

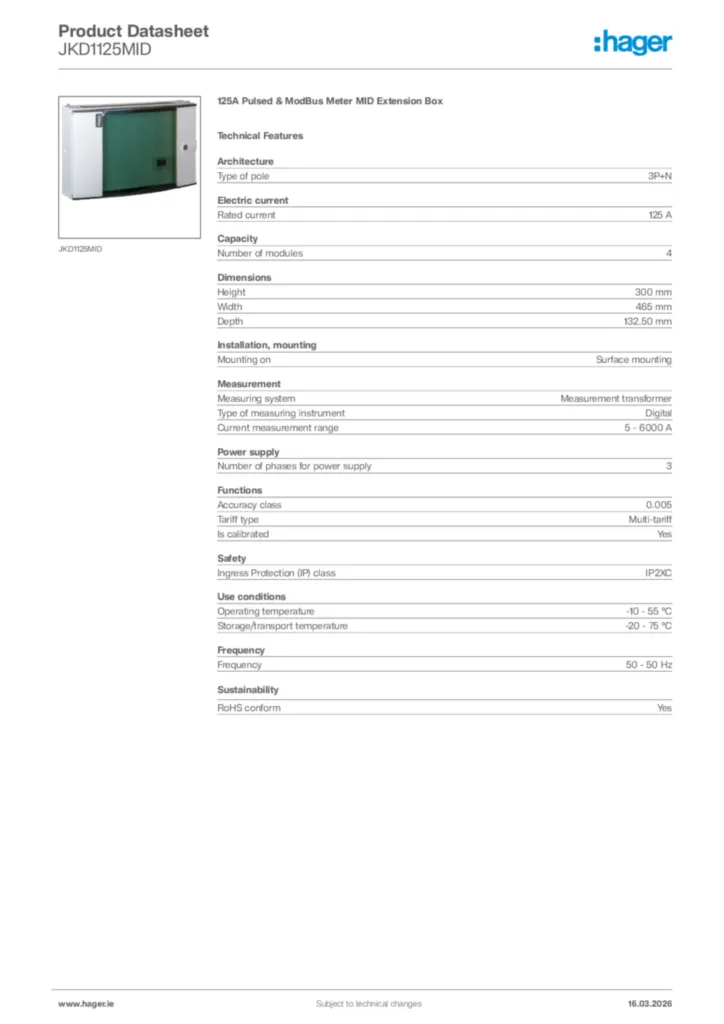

Hager Product data sheet JKD1125MID
