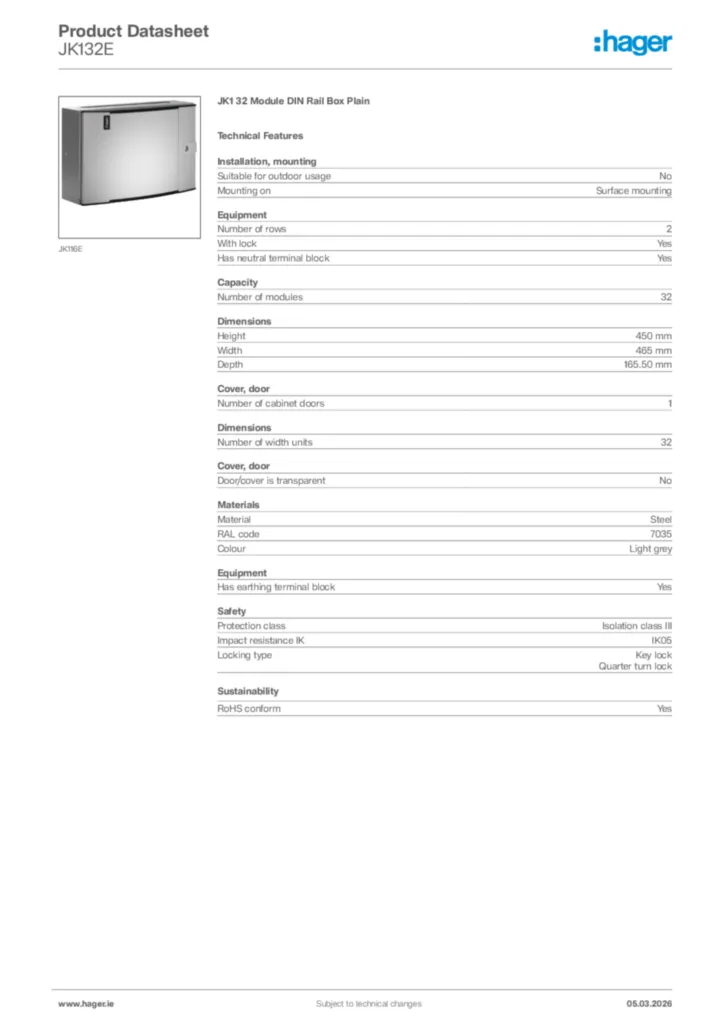

JK1 32 Module DIN Rail Box Plain JK132E
EAN
5015652252634
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Equipment
-
Number of rows2
-
With lockYes
-
Has neutral terminal blockYes
-
Has earthing terminal blockYes
Capacity
-
Number of modules32
Dimensions
-
Height450 mm
-
Width465 mm
-
Depth165.50 mm
-
Number of width units32
Cover, door
-
Number of cabinet doors1
-
Door/cover is transparentNo
Materials
-
MaterialSteel
-
RAL code7035
-
ColourLight grey
Safety
-
Protection classIsolation class III
-
Impact resistance IKIK05
-
Locking typeKey lock, Quarter turn lock
