    • Distri­bu­tion systems
    • Enclos­ures up to 800A
    • Invicta TP&N Boards
    • JK044
    catalog.pageproduct.product.info.ean
    3250610433447
    catalog.pageproduct.product.info.packqty
    1 catalog.pageproduct.product_base_unit_piece.span
    • Invicta TP&N Boards

    44 Mod DIN Rail Box Plain JK044

    catalog.product_page.add_to_list_button
    catalog.product_page.add_to_list_button

    catalog.lists.product_addition.login_popup.title

    catalog.lists.product_addition.login_popup.descriptive_text

    catalog.lists.product_addition.login_popup.account_creation_button catalog.lists.product_addition.login_popup.login_button

    44 Mod DIN Rail Box Plain

    JK044

    • catalog.pageproduct.tab_additional_title.link
    • catalog.pageproduct.title_sustainability.h2
    • catalog.pageproduct.title_documents.h2
    • catalog.pagelevel.related_heading_range.link

    catalog.pageproduct.tab_additional_title.link

    Install­a­tion, mounting
    • Suit­able for outdoor usage
      catalog.pageproduct.attribute_boolean.no
    • Mounting on
      Surface mounting
    Elec­tric current
    • Rated current IN
      100 A
    Equip­ment
    • Number of rails
      2
    • Number of rows
      2
    • Number of section in width
      1
    • With lock
      catalog.pageproduct.attribute_boolean.yes
    • Has neutral terminal block
      catalog.pageproduct.attribute_boolean.yes
    • Has earthing terminal block
      catalog.pageproduct.attribute_boolean.yes
    Capa­city
    • Number of modules
      44
    Dimen­sions
    • Height
      472 mm
    • Width
      505 mm
    • Depth
      125 mm
    • Number of width units
      44
    Cover, door
    • Number of cabinet doors
      1
    • Door/­cover is trans­parent
      catalog.pageproduct.attribute_boolean.no
    Mater­ials
    • Material
      Steel
    • RAL code
      7035
    • Colour
      Light grey
    Safety
    • Protec­tion class
      Isol­a­tion class I
    • Impact resist­ance IK
      IK05
    • Ingress Protec­tion (IP) class
      IP30
    • Locking type
      Barrel lock, Key lock
    • Protec­tion class with door
      IP3X

    catalog.pageproduct.title_sustainability.h2

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers catalog.pageproduct.product_description_learn_more.link

    catalog.pageproduct.sustainability_block.downloads_h3

    PEP - JK1 32 Module DIN Rail Box Glazed (English)
    PDF
    5,81 MB
    REACH declaration JK044
    PDF
    Hager RoHS report JK044
    PDF

    catalog.pageproduct.title_asset.h2

    • Product image

      catalog.pagelevel.alt_image.img

      catalog.pageproduct.title_product_image.div JK044

    • GeneratedProductDatasheet

      catalog.pagelevel.alt_image.img

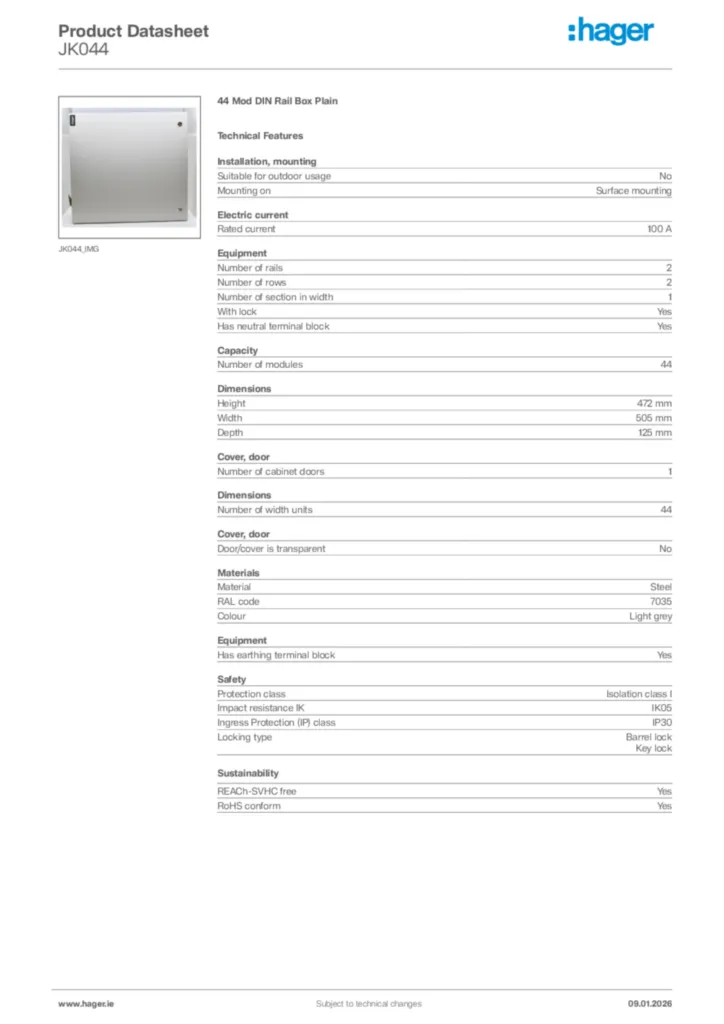

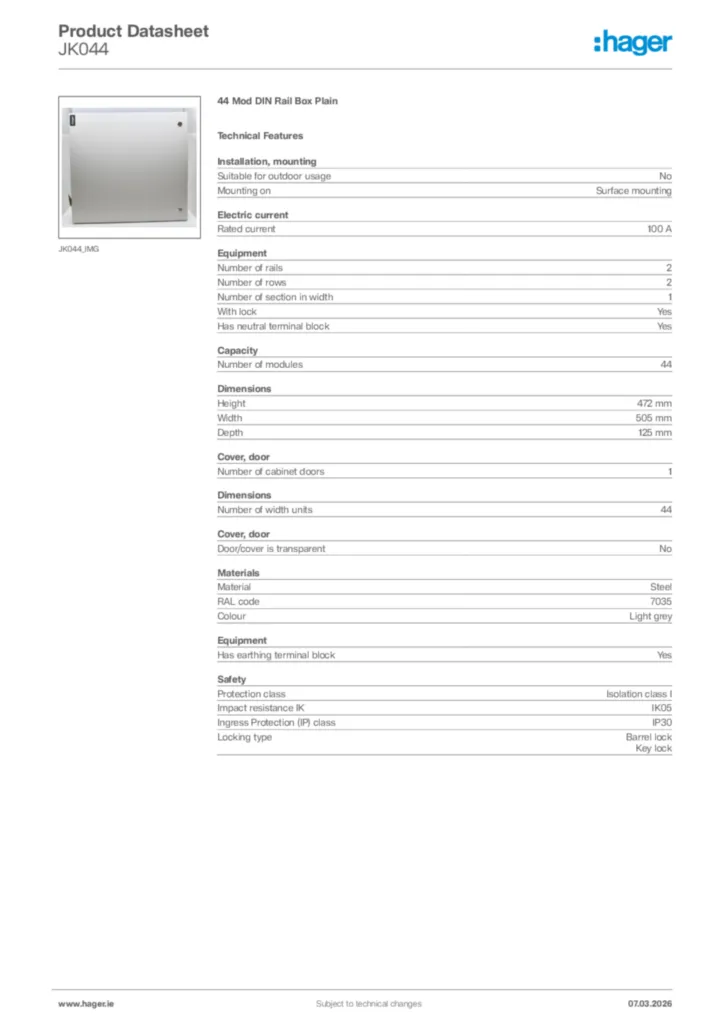

      Hager Product data sheet JK044

      44 Mod DIN Rail Box Plain

      PDF

    • ProductBimModels

      catalog.pagelevel.alt_image.img

      Range:Type A SP&N Distribution Boards-Enclosures_Surface_mounted-IP3X-With_Cover-With_DIN-IE-EnglishFamily_Hosted-REVIT_Family_2023-Hager_Version_2025

      RFA
      1,13 MB
      catalog.pagelevel.alt_image.img

      Range:Type A SP&N Distribution Boards-Enclosures_Surface_mounted-IP3X-With_Cover-With_DIN-IE-EnglishFamily_NoHosted-REVIT_Family_2023-Hager_Version_2025

      RFA
      1,12 MB
      catalog.pagelevel.alt_image.img

      Range : Type A SP&N Distribution Boards. Switchboard IP30 with DIN rail system. English - Hosted family - REVIT Family 2020 - V2022

      BIM Revit objects en-GB 2024-03-22

      RFA
      1,26 MB
      catalog.pagelevel.alt_image.img

      Range : Type A SP&N Distribution Boards. Switchboard IP30 with DIN rail system. English - Non hosted family - REVIT Family 2020 - V2022

      BIM Revit objects en-GB 2024-03-22

      RFA
      1,25 MB
      catalog.pagelevel.alt_image.img

      Range Typ.A SP&N DIN Rail Enclosures -Revit Family 2020 hosted-V2021

      BIM Revit objects en-GB 2020-01-01

      RFA
      1,25 MB
      catalog.pagelevel.alt_image.img

      Range Typ.A SP&N DIN Rail Enclosures -Revit Family 2020 no hosted-V2021

      BIM Revit objects en-GB 2020-01-01

      RFA
      1,24 MB

    • ProductECDeclaration

      catalog.pagelevel.alt_image.img

      Declaration

      Declaration of conformity International 2021-07-14

      PDF
      177,63 kB
      catalog.pagelevel.alt_image.img

      Declaration

      Declaration of conformity International 2022-11-08

      PDF
      180,42 kB
      catalog.pagelevel.alt_image.img

      Declaration of conformity International 2023-12-20

      PDF
      219,79 kB
      catalog.pagelevel.alt_image.img

      Declaration of conformity International 2023-12-20

      PDF
      230,37 kB
      catalog.pagelevel.alt_image.img

      Declaration of conformity en-GB 2026-07-22

      PDF
      323,96 kB
