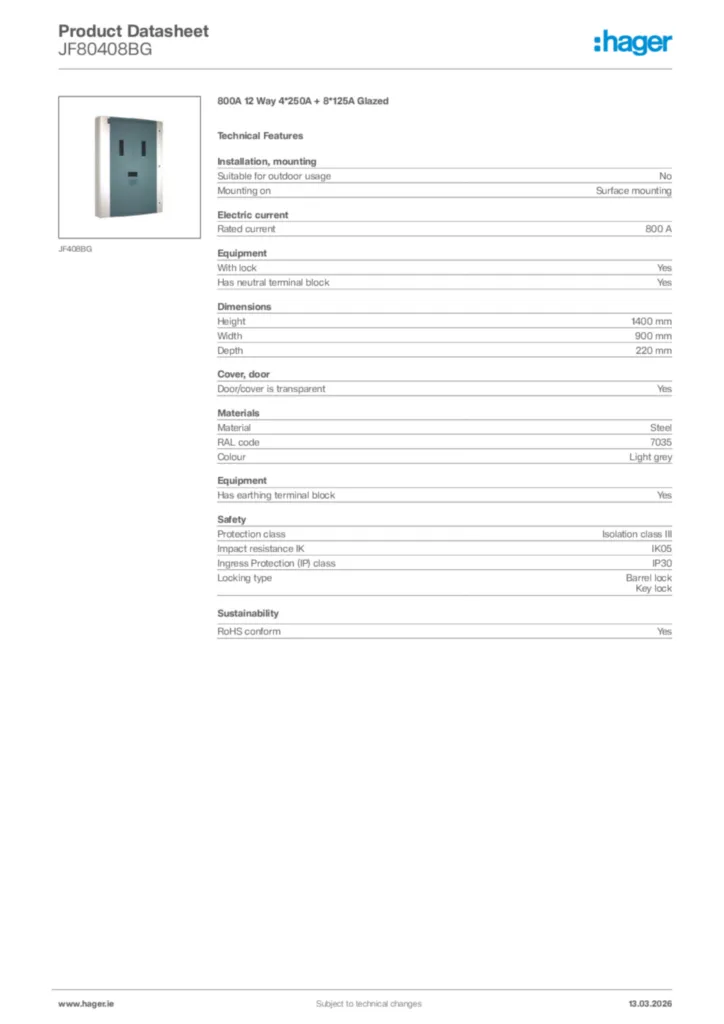

800A 12 Way 4*250A + 8*125A Glazed JF80408BG
EAN
5015652264002
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Distributor assembly for device surface mounting 1 products available -
Gland plate for enclosure 1 products available -
Door/operating panel 2 products available -
Switch disconnector 1 products available -
Blanking plate for enclosure 1 products available -
See more 3 other products available
Complete your system
Technical properties
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current800 A
Equipment
-
With lockYes
-
Has neutral terminal blockYes
-
Has earthing terminal blockYes
Dimensions
-
Height1,400 mm
-
Width900 mm
-
Depth220 mm
Cover, door
-
Door/cover is transparentYes
Materials
-
MaterialSteel
-
RAL code7035
-
ColourLight grey
Safety
-
Protection classIsolation class III
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP30
-
Locking typeBarrel lock, Key lock
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
BIM Revit objects
Panelboard Invicta 3 (630A-800A Inc 125A-250A Out) -Revit Family 2020 hosted-V2021
BIM Revit objects en-GB 2020-01-01
RFA1,13 MB
Panelboard Invicta 3 (630A-800A Inc 125A-250A Out) -Revit Family 2020 no hosted-V2021
BIM Revit objects en-GB 2020-01-01
RFA1,12 MB
Range : Panelboards. Switchboard IP30. English - Hosted family - REVIT Family 2020 - V2022
BIM Revit objects en-GB 2024-03-22
RFA1,14 MB
Range : Panelboards. Switchboard IP30. English - Non hosted family - REVIT Family 2020 - V2022
BIM Revit objects en-GB 2024-03-22
RFA1,13 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-11-10
PDF174,21 kB
Declaration
Declaration of conformity International 2022-07-06
PDF145,02 kB
Declaration
Declaration of conformity International 2021-07-14
PDF141,22 kB
