800A 12 Way 2*250A + 10*125A Glazed

JF80210BG

  • Distri­bu­tion systems

800A 12 Way 2*250A + 10*125A Glazed JF80210BG

EAN
5015652263944
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products

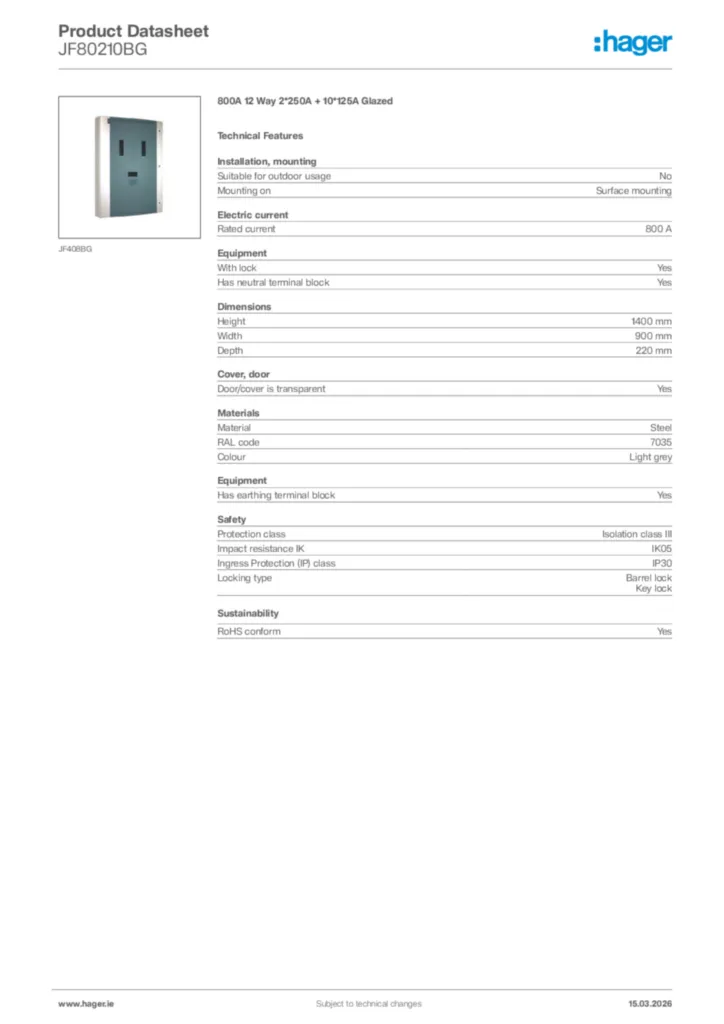

Download the data sheet

Complete your system

Optional accessories

  • Distrib­utor assembly for device surface mounting 1 products available
  • Gland plate for enclosure 1 products available
  • Door/­op­er­ating panel 2 products available
  • Switch discon­nector 1 products available
  • Blanking plate for enclosure 1 products available
  • See more 3 other products available

Complete your system

  • Distrib­utor assembly for device surface mounting
  • Gland plate for enclosure
  • Door/­op­er­ating panel
  • Switch discon­nector
  • Blanking plate for enclosure
  • Small distri­bu­tion board
  • JF884BD

    800A 4 Pole Dirct Connect Incomer Kit
    0.00 €  / *
    Add to a list
    Add to a list
  • JFPLATE

    Spare Endplate for JF boards
    0.00 €  / *
    Add to a list
    Add to a list
  • JF805DK

    Small Spreader Box Door Kit
    0.00 €  / *
    Add to a list
    Add to a list
  • JF806DK

    Large Extension Box Door Kit
    0.00 €  / *
    Add to a list
    Add to a list
  • JAB410B

    Enclosed Switch Disconnector TPSN 100A
    0.00 €  / *
    Add to a list
    Add to a list
  • JF003BP

    3 Pole Blanking Plate 250A Frame
    0.00 €  / *
    Add to a list
    Add to a list
  • JF14006SM

    12 Way Side Extension Encl DIN 96 x 6
    0.00 €  / *
    Add to a list
    Add to a list
  • JF801EG

    Small DIN Rail Box Glazed
    0.00 €  / *
    Add to a list
    Add to a list
  • JF803EG

    Large DIN Rail Box Glazed
    0.00 €  / *
    Add to a list
    Add to a list

Technical properties

Install­a­tion, mounting
  • Suit­able for outdoor usage
    No
  • Mounting on
    Surface mounting
Elec­tric current
  • Rated current
    800 A
Equip­ment
  • With lock
    Yes
  • Has neutral terminal block
    Yes
  • Has earthing terminal block
    Yes
Dimen­sions
  • Height
    1,400 mm
  • Width
    900 mm
  • Depth
    220 mm
Cover, door
  • Door/­cover is trans­parent
    Yes
Mater­ials
  • Material
    Steel
  • RAL code
    7035
  • Colour
    Light grey
Safety
  • Protec­tion class
    Isol­a­tion class III
  • Impact resist­ance IK
    IK05
  • Ingress Protec­tion (IP) class
    IP30
  • Locking type
    Barrel lock, Key lock

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
