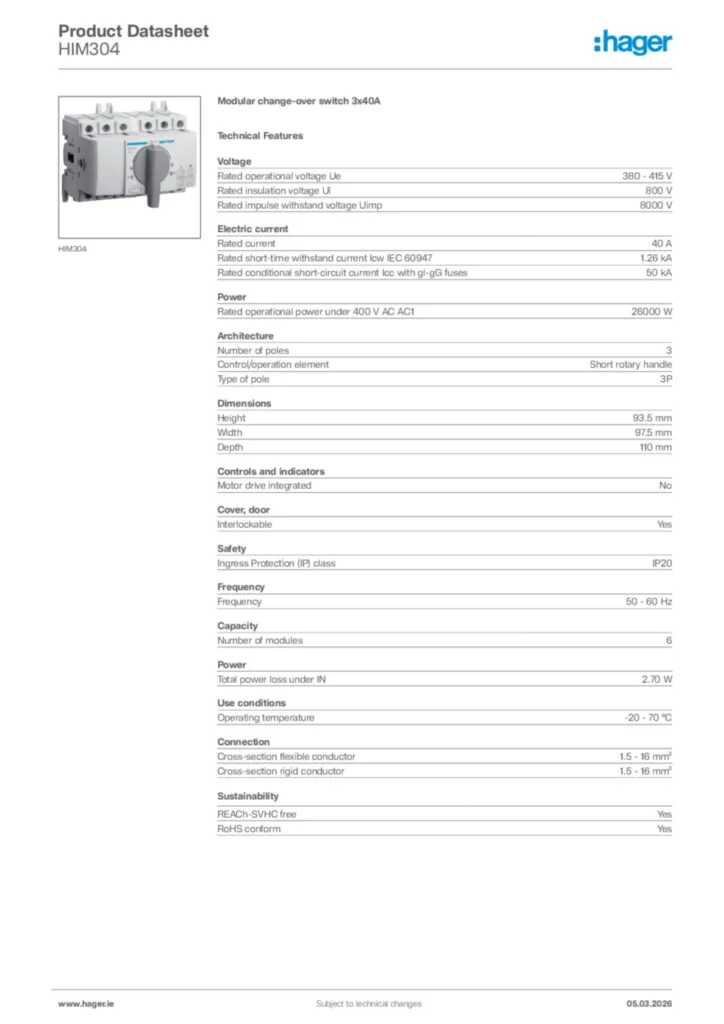

Modular change-over switch 3x40A HIM304
EAN
3250613140519
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Door coupling handle for switchgear 1 products available -
Switch operating shaft 3 products available -
Auxiliary contact block 2 products available -
Terminal cover 2 products available -
Accessories/spare parts for low-voltage switch technology 1 products available
Complete your system
Technical properties
Voltage
-
Rated operational voltage Ue380 - 415 V
-
Rated insulation voltage Ui800 V
-
Rated impulse withstand voltage Uimp8,000 V
Electric current
-
Rated current40 A
-
Rated short-time withstand current Icw IEC 609471.26 kA
-
Rated conditional short-circuit current Icc with gl-gG fuses50 kA
Power
-
Rated operational power under 400 V AC AC126,000 W
-
Total power loss under IN2.70 W
Architecture
-
Number of poles3
-
Control/operation elementShort rotary handle
-
Type of pole3P
Dimensions
-
Height93.5 mm
-
Width97.5 mm
-
Depth110 mm
Controls and indicators
-
Motor drive integratedNo
Cover, door
-
InterlockableYes
Safety
-
Ingress Protection (IP) classIP20
Capacity
-
Number of modules6
Frequency
-
Frequency50 - 60 Hz
Use conditions
-
Operating temperature-20 - 70 °C
Connection
-
Cross-section flexible conductor1.5 - 16 mm²
-
Cross-section rigid conductor1.5 - 16 mm²
