Modular change-over switch 3x20A HIM302

EAN
3250613140502
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

This product is now obsolete. However, this page remains available for information purposes. If you require any further information please contact the Technical Service Centre by email or on 01952 675689.

Modular change-over switch 3x20A

HIM302

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
Download the data sheet

Complete your system

Optional accessories

  • Terminal cover 1 products available
  • Switch oper­ating shaft 3 products available
  • Door coup­ling handle for switchgear 1 products available
  • Auxil­iary contact block 2 products available

Complete your system

  • Terminal cover
  • Switch oper­ating shaft
  • Door coup­ling handle for switchgear
  • Auxil­iary contact block
  • HZC211

    Terminal shrouds 3P LBS 20-63A
    0.00 €  / *
  • HZC111

    Shaft extension N°5 150mm LBS 20-125A
    0.00 €  / *
  • HZC113

    Shaft extension N°5 320mm LBS 20-125A
    0.00 €  / *
  • HZC112

    Shaft extension N°5 200mm LBS 20-125A
    0.00 €  / *
  • HZC016

    Grey handle COS 20-80A
    0.00 €  / *
  • HZC312

    Auxiliary contact 2C LBS 20-160A
    0.00 €  / *
  • HZC311

    Auxiliary contact 1C+1O LBS 20-160A
    0.00 €  / *

Technical properties

Voltage
  • Rated oper­a­tional voltage Ue
    380 - 415 V
  • Rated insu­la­tion voltage Ui
    800 V
  • Rated impulse with­stand voltage Uimp
    8,000 V
Elec­tric current
  • Rated current
    20 A
  • Rated short-­time with­stand current Icw IEC 60947
    1.26 kA
  • Rated condi­tional short-­cir­cuit current Icc with gl-gG fuses
    50 kA
Power
  • Rated oper­a­tional power under 400 V AC AC1
    13,000 W
  • Total power loss under IN
    1.20 W
Archi­tec­ture
  • Number of poles
    3
  • Control/­op­er­a­tion element
    Short rotary handle
  • Type of pole
    3P
Dimen­sions
  • Height
    93.5 mm
  • Width
    97.5 mm
  • Depth
    110 mm
Controls and indic­ators
  • Motor drive integ­rated
    No
Cover, door
  • Inter­lock­able
    Yes
Safety
  • Ingress Protec­tion (IP) class
    IP20
Capa­city
  • Number of modules
    6
Frequency
  • Frequency
    50 - 60 Hz
Use condi­tions
  • Oper­ating temper­ature
    -20 - 70 °C
Connec­tion
  • Cross-sec­tion flex­ible conductor
    1.5 - 16 mm²
  • Cross-sec­tion rigid conductor
    1.5 - 16 mm²

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
REACh-SVHC free Yes

Certifications and documents

Hager REACH declaration HIM302
PDF
Hager RoHS report HIM302
PDF

Downloads

  • Product image

    Image HIM302 | Hager

    Product Image HIM302

  • Product datasheet

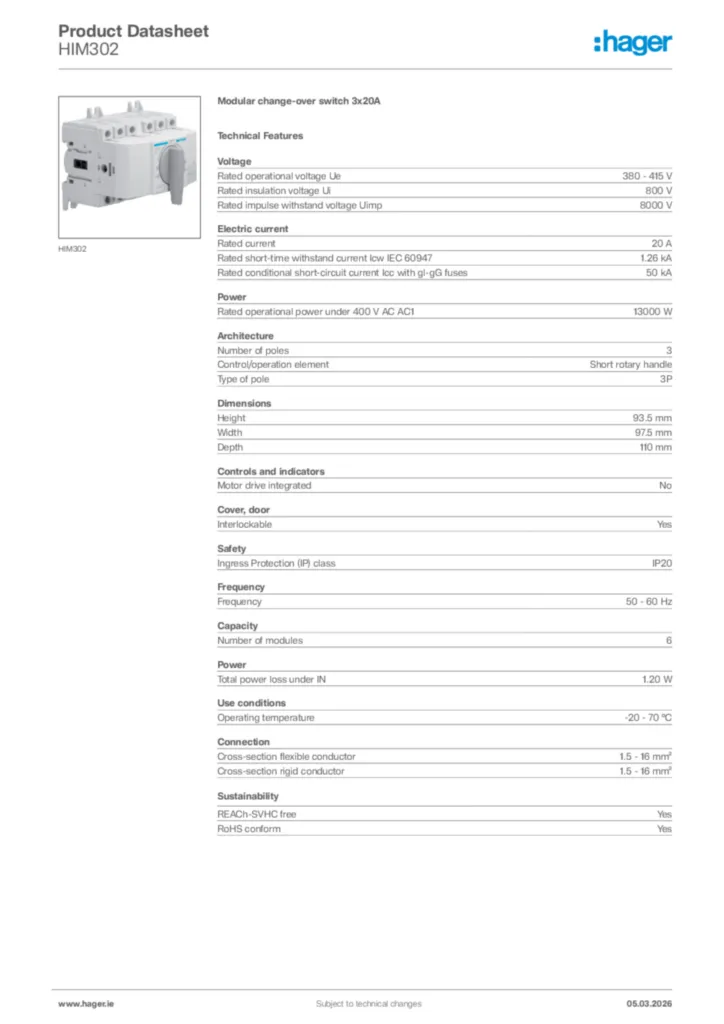

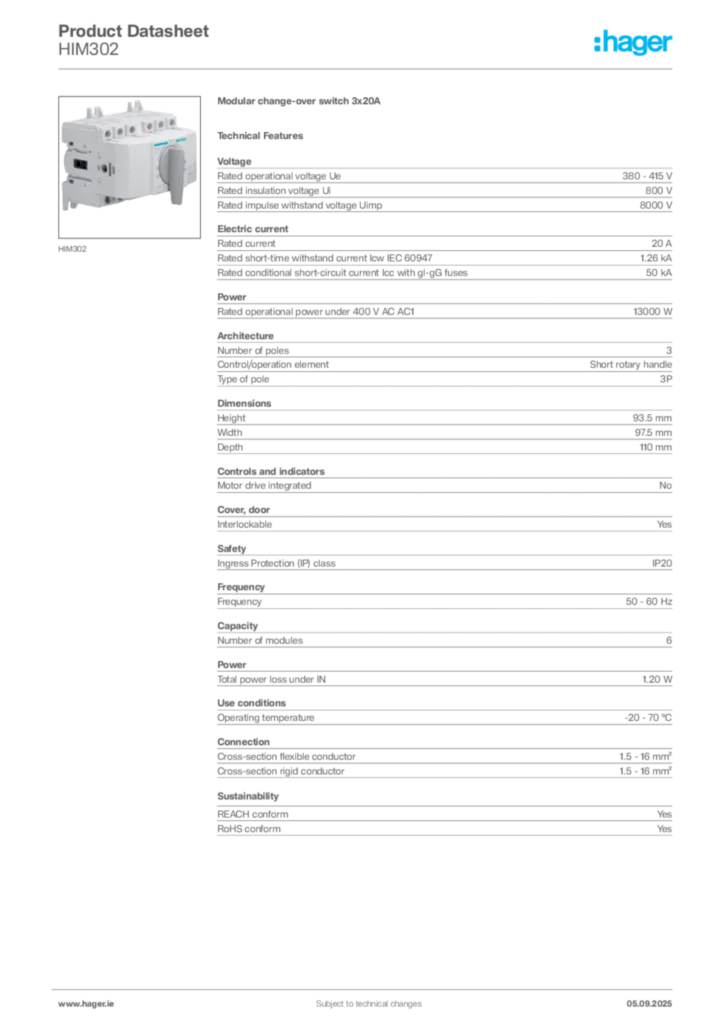

    Image Hager Product data sheet HIM302 | Hager

    Hager Product data sheet HIM302

    Modular change-over switch 3x20A

    PDF

  • Installation manual

    Image Installation manual International 2024-11-28 | Hager

    Installation manual International 2024-11-28

    PDF
    1,45 MB
