Switch h1000 4P 800A HCE801H

EAN
3250613363215
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Switch h1000 4P 800A

HCE801H

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • See more (32)
    • Locking inter­locking func­tions 1 products available
    • Handle for power circuit breaker 2 products available
    • Padlock barrier for switch 1 products available
    • Shunt release 5 products available
    • Under voltage coil 13 products available
    • Auxil­i­aries contact block 3 products available

    Complete your system

    • Locking inter­locking func­tions
    • Handle for power circuit breaker
    • Padlock barrier for switch
    • Shunt release
    • Under voltage coil
    • Auxil­i­aries contact block
    • Auxil­i­aries inter­locking cable
    • Motor oper­ator
    • Auxil­i­aries cable adaptor
    • Connec­tion Func­tions
    • HXE065H

      Interlocking wire type H800-H1000
      0.00 €  / *
    • HXE031H

      Extended rotary handle H800-H1000
      0.00 €  / *
    • HXE030H

      Direct rotary handle H800-H1000
      0.00 €  / *
    • HXD039H

      Padlock h400-h1000
      0.00 €  / *
    • HXC004H

      Shunt trip Release 200-240V AC (h250-h400-h630-h800-h1000)
      0.00 €  / *
    • HXC003H

      Shunt trip Release 100-120V AC (h250-h400-h630-h800-h1000)
      0.00 €  / *
    • HXC005H

      Shunt trip Release 380-450V AC (h250-h400-h630-h800-h1000)
      0.00 €  / *
    • HXC001H

      Shunt trip Release 24V DC (h250-h400-h630-h800-h1000)
      0.00 €  / *
    • HXC008H

      Shunt trip Release 110V DC (h250-h400-h630-h800-h1000)
      0.00 €  / *
    • HXE019H

      UVR 200-240 V DC (h800-h1000-h1600)
      0.00 €  / *
    • HXE018H

      UVR 100-120 V DC (h800-h1000-h1600)
      0.00 €  / *
    • HXE054H

      Undervoltage Release delayed h800-h1000 3P 220-240VAC
      0.00 €  / *
    • HXE053H

      Undervoltage Release delayed h800-h1600 3P 110-120VAC
      0.00 €  / *
    • HXF051H

      Undervoltage Release delayed h800-h1600 4P 24VDC
      0.00 €  / *
    • HXE055H

      Undervoltage Release delayed h800-h1600 3P 380-415VAC
      0.00 €  / *
    • HXF055H

      Undervoltage Release delayed h800-h1600 4P 380-415VAC
      0.00 €  / *
    • HXF053H

      Undervoltage Release delayed h800-h1600 4P 110-120VAC
      0.00 €  / *
    • HXE015H

      UVR 380-415V AC (h800-h1000-h1600)
      0.00 €  / *
    • HXE013H

      UVR 110-120V AC (h800-h1000-h1600)
      0.00 €  / *
    • HXE014H

      UVR 220-240V AC (h800-h1000-h1600)
      0.00 €  / *
    • HXE011H

      UVR 24V DC (h800-h1000-h1600)
      0.00 €  / *
    • HXE051H

      Undervoltage Release delayed h800-h1600 3P 24VDC
      0.00 €  / *
    • HXC021H

      Auxiliary contact 1NO+1NC 230V AC (h250-h400-h630-h800-h1000-h1600)
      0.00 €  / *
    • HXC025H

      Auxilirary low level 1NO+1NC 125V AC (h250-h400-h630-h800-h1000-h1600)
      0.00 €  / *
    • HXC024H

      Alarm contact 1NO+1NC 230V (h250-h400-h630-h800-h1000-h1600)
      0.00 €  / *
    • HXD068H

      Electrical interlock for Motor type A (h400-h630-x630-P630-h800-h1000)
      0.00 €  / *
    • HXB069H

      Electrical interlock for Motor type B (x250-P250-h250-h400-h630-h800-h1000)
      0.00 €  / *
    • HXE042H

      Motor operator H800-H1000 100-240VAC
      0.00 €  / *
    • HXE040H

      Motor operator h800-h1000 24-48V DC
      0.00 €  / *
    • HYA035H

      Connecting kit 3P/4P
      0.00 €  / *
    • HYE008H

      Collar terminal h800/h1000 Al 4P 4x 95-240mm²
      0.00 €  / *
    • HYE032H

      Rear connexion H800-H1000 4P
      0.00 €  / *

    Technical properties

    Elec­tric current
    • Rated current
      800 A
    Archi­tec­ture
    • Number of poles
      4
    • Control/­op­er­a­tion element
      Toggle
    Connec­tion
    • Cross-sec­tion rigid conductor
      2x 240 mm²
    • Cross-sec­tion flex­ible conductor
      2x 240 mm²
    Voltage
    • Rated insu­la­tion voltage Ui
      800 V
    • Rated impulse with­stand voltage Uimp
      8,000 V
    Trip­ping
    • Response time when opening
      10 ms
    Frequency
    • Frequency
      50 - 60 Hz
    Equip­ment
    • Motor drive optional
      Yes
    Func­tions
    • Trip unit
      Switch
    Power
    • Power loss per pole at In
      49.60 W
    • Total power loss under IN
      148.80 W
    • Rated oper­a­tional power under 400 V AC AC1
      526,000 W
    Use condi­tions
    • Oper­ating temper­ature
      -25 - 70 °C
    Cover, door
    • Inter­lock­able
      Yes
    Safety
    • Ingress Protec­tion (IP) class
      IP4X

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    Hager REACH declaration HCE801H
    PDF
    Hager RoHS report HCE801H
    PDF

    Downloads

    • Product image

      Image HCE801H | Hager

      Product Image HCE801H

    • Product datasheet

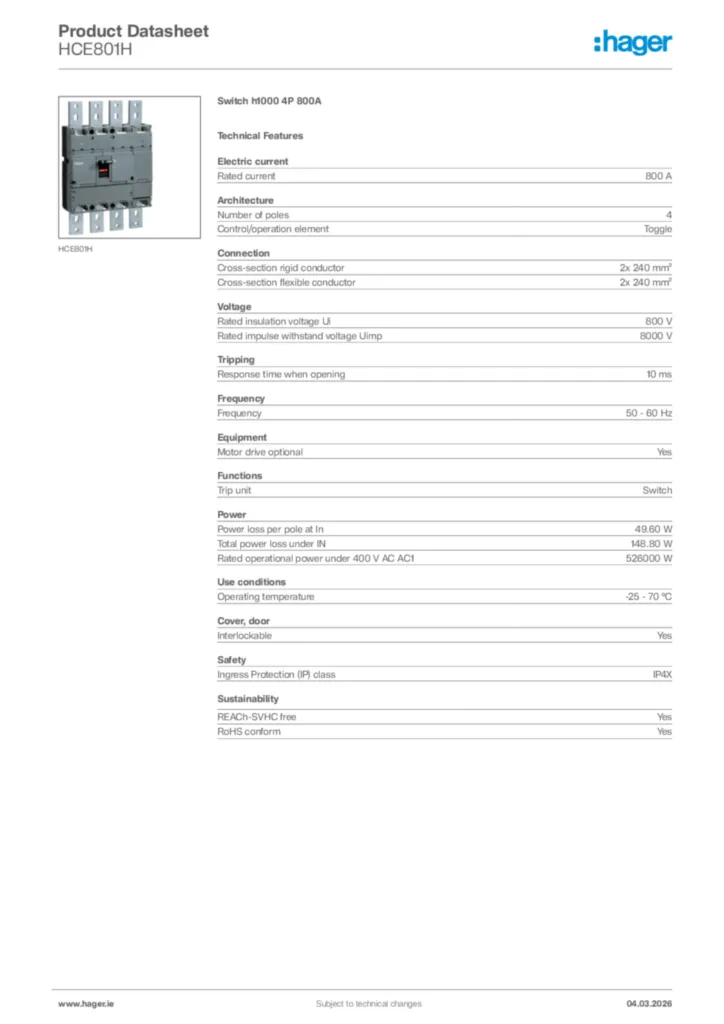

      Image Hager Product data sheet HCE801H | Hager

      Hager Product data sheet HCE801H

      Switch h1000 4P 800A

      PDF

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-06-27

      PDF
      330,83 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-06-21

      PDF
      316,45 kB
    More documentation

    Discover more of this product range

      5
    • 1
      HCE800H - Switch h1000 3P 800A
      HCE800H
      Switch h1000 3P 800A
    • 2
      HCE970H - Switch h1000 3P 1000A
      HCE970H
      Switch h1000 3P 1000A
    • 3
      HCE971H - Switch h1000 4P 1000A
      HCE971H
      Switch h1000 4P 1000A
    • 4
      HCF980H - Switch h1600 3P 1250A
      HCF980H
      Switch h1600 3P 1250A
    • 5
      HCT250AR - Load Break Switch Disconnector h3+ P250 3P 250A FTC
      HCT250AR
      Load Break Switch Disconnector h3+ P250 3P 250A FTC
