Mini-enclosure, gamma, 8 module, protect. class IP30, 1xPE, 1xN

GD108N

  • Distri­bu­tion systems

Mini-enclosure, gamma, 8 module, protect. class IP30, 1xPE, 1xN GD108N

EAN
3250612843275
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products

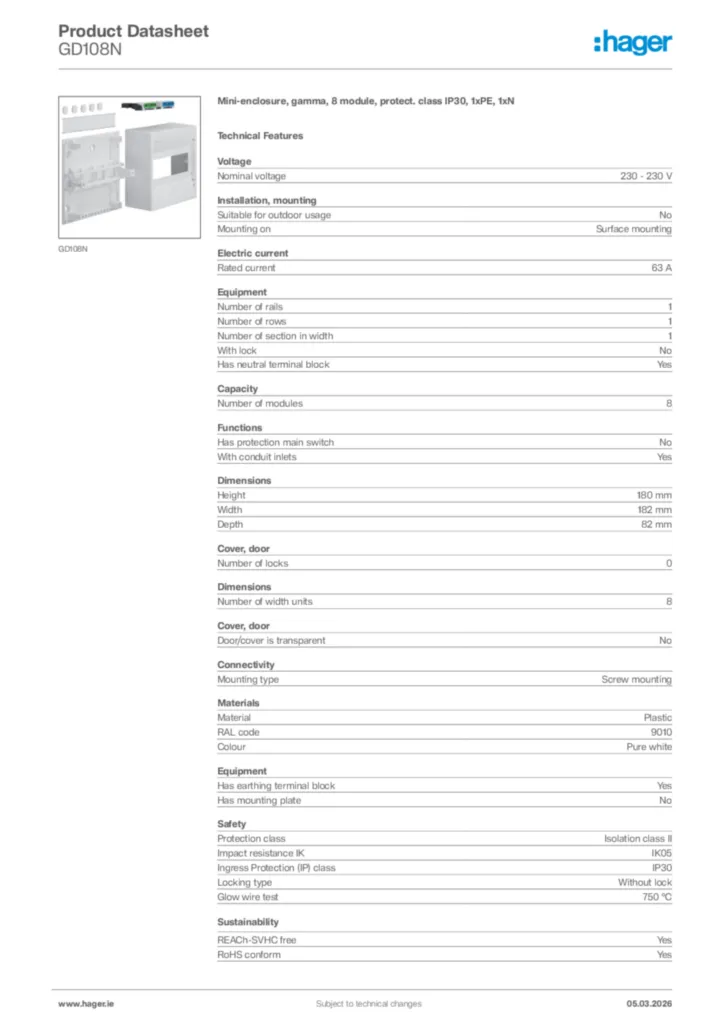

Download the data sheet

Complete your system

Optional accessories

  • Door/­op­er­ating panel 2 products available
  • Lock system 1 products available
  • Cover strip 3 products available

Complete your system

  • Door/­op­er­ating panel
  • Lock system
  • Cover strip
  • GP108P

    Door for mini-enclosure, gamma, 8 module, white
    0.00 €  / *
    Add to a list
    Add to a list
  • GP108T

    Door,mini distributor,8M, transparent
    0.00 €  / *
    Add to a list
    Add to a list
  • VZ313

    Door key,gamma,for door of the mini-enclosure,GD
    0.00 €  / *
    Add to a list
    Add to a list
  • P031F

    Cover strips, universal, for 1/2 module
    0.00 €  / *
    Add to a list
    Add to a list
  • P032F

    Cover strips, universal, for 1 module
    0.00 €  / *
    Add to a list
    Add to a list
  • S35S

    Cover strips, RAL 9010, breakable, 219 mm
    0.00 €  / *
    Add to a list
    Add to a list

Technical properties

Voltage
  • Nominal voltage
    230 - 230 V
Install­a­tion, mounting
  • Suit­able for outdoor usage
    No
  • Mounting on
    Surface mounting
Elec­tric current
  • Rated current
    63 A
Equip­ment
  • Number of rails
    1
  • Number of rows
    1
  • Number of section in width
    1
  • With lock
    No
  • Has neutral terminal block
    Yes
  • Has earthing terminal block
    Yes
  • Has mounting plate
    No
Capa­city
  • Number of modules
    8
Func­tions
  • Has protec­tion main switch
    No
  • With conduit inlets
    Yes
Dimen­sions
  • Height
    180 mm
  • Width
    182 mm
  • Depth
    82 mm
  • Number of width units
    8
Cover, door
  • Number of locks
    0
  • Door/­cover is trans­parent
    No
Connectivity
  • Mounting type
    Screw mounting
Mater­ials
  • Material
    Plastic
  • RAL code
    9010
  • Colour
    Pure white
Safety
  • Protec­tion class
    Isol­a­tion class II
  • Impact resist­ance IK
    IK05
  • Ingress Protec­tion (IP) class
    IP30
  • Locking type
    Without lock
  • Glow wire test
    750 °C

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
REACH conform Yes

Certifications and documents

PEP - ENCLOSURE SURFACE GAMMA 26 M (english)
PDF
25,39 MB
REACH declaration GD108N (english)
PDF
103,10 kB
RoHS declaration GD108N (english)
PDF
103,59 kB

Downloads

  • Product image

    Image GD108N | Hager

    Product Image GD108N

  • Declaration of conformity

    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-10-14

    PDF
    824,09 kB
    Image Declaration of conformity en-GB 2024-04-15 | Hager

    Declaration of conformity en-GB 2024-04-15

    PDF
    174,16 kB
More documentation
