    • Home
    • Catalogue
    • Distri­bu­tion systems
    • Enclos­ures up to 160A
    • FW/FWB surface enclos­ures
    • FW424WT
    EAN
    3250614300974
    Packaging
    1 Piece
    • FW/FWB surface enclos­ures

    Surface encl. FW2, IP30, class I, with door and brass terminals, 4x24 modules FW424WT

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Surface encl. FW2, IP30, class I, with door and brass terminals, 4x24 modules

    FW424WT

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

    • Lock system 1 products available

    Complete your system

    • Lock system
    • FZ597

      Locking, univers, with 2keys, for IP43
      0.00 €  / *

    Technical properties

    Connec­tion
    • Number of conduit inlets
      2
    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Surface mounting
    Elec­tric current
    • Rated current
      125 A
    Equip­ment
    • Number of rows
      4
    • Number of section in width
      2
    • With lock
      No
    • Has neutral terminal block
      No
    • Has earthing terminal block
      Yes
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      96
    Dimen­sions
    • Height
      791 mm
    • Width
      571 mm
    • Depth
      150 mm
    • Number of width units
      24
    Cover, door
    • Number of cabinet doors
      1
    • Door/­cover is trans­parent
      No
    Mater­ials
    • Material
      Steel
    • RAL code
      9010
    • Colour
      Pure white
    Safety
    • Protec­tion class
      Isol­a­tion class I
    • Impact resist­ance IK
      IK08
    • Ingress Protec­tion (IP) class
      IP40
    • Locking type
      Key lock, Without lock

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    Certifications and documents

    PEP - Enclosures FWP, univers, IP44, SKII, 120PLE (english)
    PDF
    8,50 MB
    Hager REACH declaration FW424WT
    PDF

    Downloads

    • Product image

      Image FW424WT | Hager

      Product Image FW424WT

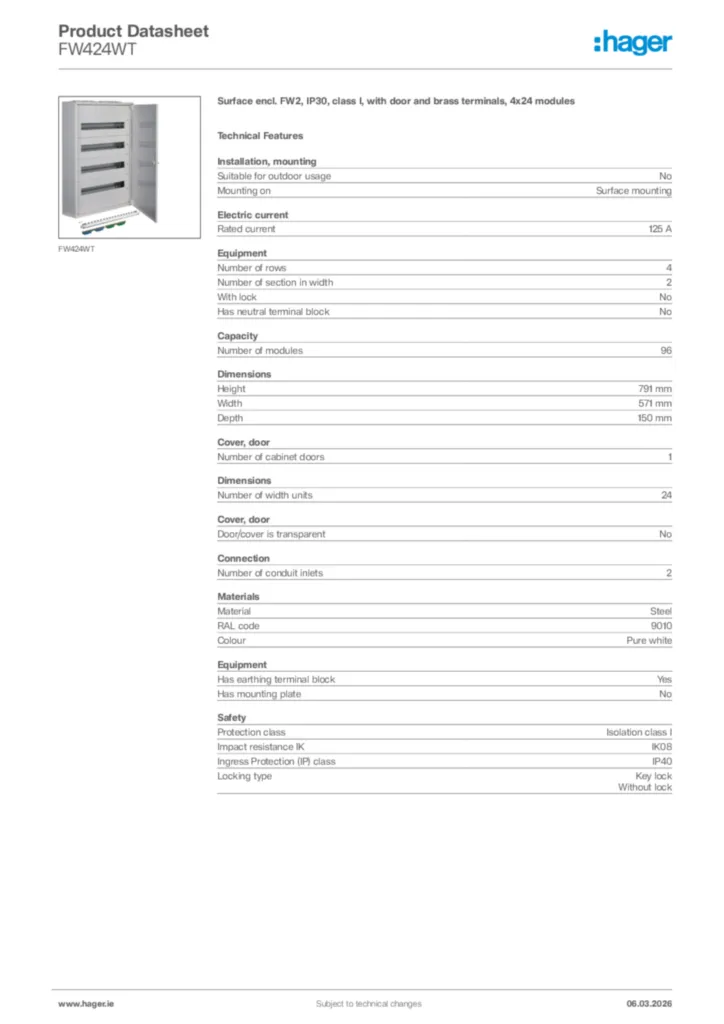

    • Product datasheet

      Image Hager Product data sheet FW424WT | Hager

      Hager Product data sheet FW424WT

      Surface encl. FW2, IP30, class I, with door and brass terminals, 4x24 modules

      PDF

    • Installation manual

      Image Installation manual International 2024-07-17 | Hager

      Installation manual International 2024-07-17

      PDF
      4,83 MB

    • BIM Revit objects

      Image Range:FW-Enclosures_Surface_mounted-IP30-With_Cover-With_DIN-IE-EnglishFamily_Hosted-REVIT_Family_2023-Hager_Version_2025 | Hager

      Range:FW-Enclosures_Surface_mounted-IP30-With_Cover-With_DIN-IE-EnglishFamily_Hosted-REVIT_Family_2023-Hager_Version_2025

      RFA
      1,23 MB
      Image Range:FW-Enclosures_Surface_mounted-IP30-With_Cover-With_DIN-IE-EnglishFamily_NoHosted-REVIT_Family_2023-Hager_Version_2025 | Hager

      Range:FW-Enclosures_Surface_mounted-IP30-With_Cover-With_DIN-IE-EnglishFamily_NoHosted-REVIT_Family_2023-Hager_Version_2025

      RFA
      1,21 MB

    • Handbook

      Image Handbook en-GB 2024-10-10 | Hager

      Handbook en-GB 2024-10-10

      PDF
      1,80 MB

    • Declaration of conformity

      Image Declaration of conformity en-GB 2024-08-30 | Hager

      Declaration of conformity en-GB 2024-08-30

      PDF
      179,29 kB
    More documentation

    Discover more of this product range

      5
    • 1
      UN72TN - Kit, univers FW, media with perforated mounting plate, 1050x500mm
      UN72TN
      Kit, univers FW, media with perforated mounting plate, 1050x500mm
    • 2
      FZ441B - Associaton kit univers, vertical, for enclosures 1-section D:160/205mm
      FZ441B
      Associaton kit univers, vertical, for enclosures 1-section D:160/205mm
    • 3
      FZ799N - Fixation lug for pre-handing on wall rail FZ890N
      FZ799N
      Fixation lug for pre-handing on wall rail FZ890N
    • 4
      FZ890N - Wall fixation rail, univers, 2m, for enclosure IP44 / IP54
      FZ890N
      Wall fixation rail, univers, 2m, for enclosure IP44 / IP54
    • 5
      UN62TN - Kit, univers FW, media with perforated mounting plate, 900x500mm
      UN62TN
      Kit, univers FW, media with perforated mounting plate, 900x500mm
