Steel enclosure, Univers, IP55, CL1, 950x300x275 mm

FR61E

  • Distri­bu­tion systems

Steel enclosure, Univers, IP55, CL1, 950x300x275 mm FR61E

EAN
3250610702611
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products

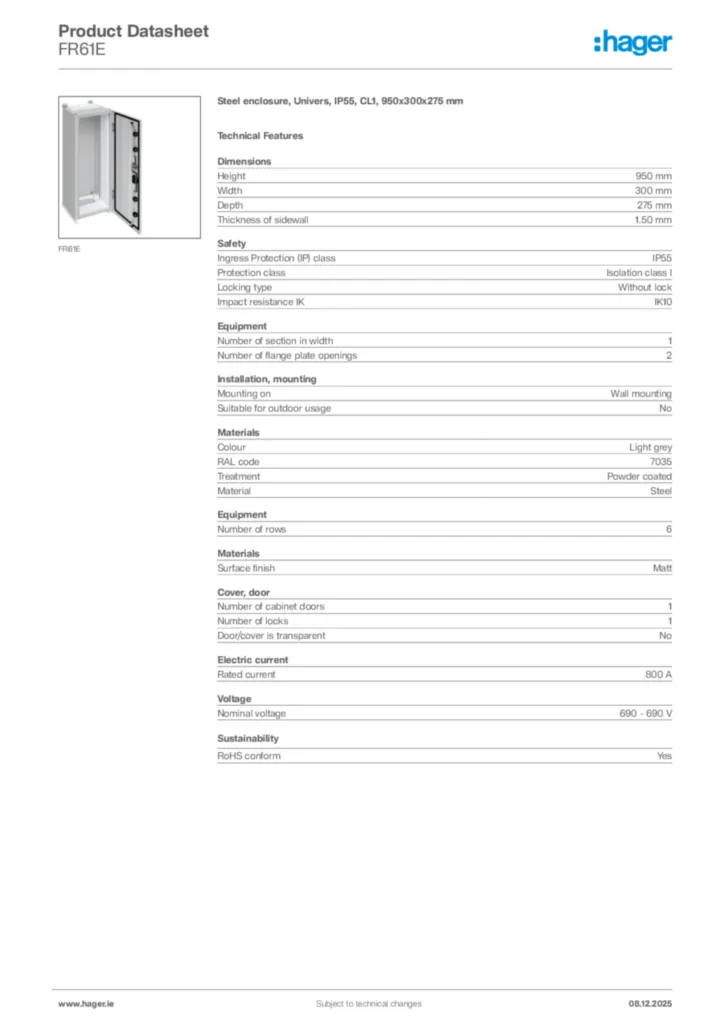

Download the data sheet

Complete your system

Optional accessories

  • Distrib­utor assembly busbars 1 products available
  • Gland plate for enclosure 2 products available
  • Door/­op­er­ating panel 1 products available
  • Top panel/roof for enclosure 1 products available
  • Lock system 8 products available
  • See more 19 other products available

Complete your system

  • Distrib­utor assembly busbars
  • Gland plate for enclosure
  • Door/­op­er­ating panel
  • Top panel/roof for enclosure
  • Lock system
  • Base/­base element
  • Compon­ents for door
  • Trans­port accessories
  • Cable gland
  • Accessor­ies/s­pare parts for earthing and light­ning
  • Docu­ment holder
  • Compon­ents for wiring, cable entry and cable fixing
  • Mounting accessories
  • Hinge for distri­bu­tion systems
  • DIN rail
  • Insert for lock system
  • UE21D1

    Kit,universN,300x250mm, with busbar 50mm, 4x 25x4mm, vertical
    0.00 €  / *
    Add to a list
    Add to a list
  • FZ422

    Metal cable entry plate CL1, Univers, IP55 230x120 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FZ435A

    Cover plate,univers, to close cable entry openings in FR enclousures
    0.00 €  / *
    Add to a list
    Add to a list
  • FZ061R

    Door, Univers, IP55, H950 W300 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FZ230A

    Upright support, Univers, D275 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FZ506

    Euro-profile cylinder 1242E for swing lever FZ537
    0.00 €  / *
    Add to a list
    Add to a list
  • FZ519

    Euro-profile cylinder 405 for swing lever FZ537
    0.00 €  / *
    Add to a list
    Add to a list
  • FZ520

    Euro-profile cylinder 455 for swing lever FZ537
    0.00 €  / *
    Add to a list
    Add to a list
  • FZ530

    Lock,univers, T-handle, for enclosures FA / FT / FG
    0.00 €  / *
    Add to a list
    Add to a list
  • FZ537

    Rotary and sealing handle lock, Univers
    0.00 €  / *
    Add to a list
    Add to a list
  • MES-PHZ3K7

    Profile half cylinder triangular 7mm
    0.00 €  / *
    Add to a list
    Add to a list
  • MES-PHZ4K8

    Profile half cylinder square 8mm
    0.00 €  / *
    Add to a list
    Add to a list
  • MES-PHZDB3

    Profile half cylinder double-bit 3mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FZ631A

    Plinth, Univers, H100 300x275 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FZ641A

    Plinth, Univers, H200 300x275 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FZ739A

    Door wiring profile, Univers, H250 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FZ831

    Crane rings, Univers, M8 thread, 140 kg per ring
    0.00 €  / *
    Add to a list
    Add to a list
  • VZ020M

    Cable gland, vector, IP65, M20, plastic
    0.00 €  / *
    Add to a list
    Add to a list
  • UZ009

    PE cable,universN,25mm², 300mm, both cable shoe 6mm / 8mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FZ757A4

    Document holder, glued, DIN A4
    0.00 €  / *
    Add to a list
    Add to a list
  • FZ757A5

    Document holder, adhesive, DIN A5
    0.00 €  / *
    Add to a list
    Add to a list
  • FZ757M

    Document holder, magnetic, DIN A4
    0.00 €  / *
    Add to a list
    Add to a list
  • FZ794

    Document holder, transparent, DIN A4, adhesive
    0.00 €  / *
    Add to a list
    Add to a list
  • FZ818

    Document holder, plastic, DIN A4, adhesive
    0.00 €  / *
    Add to a list
    Add to a list
  • FZ771A

    Adapter for vertical connection of 300mm wide FR/FS enclosures
    0.00 €  / *
    Add to a list
    Add to a list
  • FZ800E

    Adj. rail holder, Univers, CL1, D275 mm RAL7035
    0.00 €  / *
    Add to a list
    Add to a list
  • FZ721A

    Horizontal coupling kit, Univers, L275 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FZ829

    Wall fixation lugs, Univers
    0.00 €  / *
    Add to a list
    Add to a list
  • FZ797A

    Hinge pins, Univers, D5x74 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • U82A

    DIN rail,univers, 7,5 mm, depth-adjustable until 32,5mm, 11 modules wide (200mm)
    0.00 €  / *
    Add to a list
    Add to a list
  • UN06A

    Carrier rails, univers,for enclosures ex depth = 160mm, L = 900mm, 2 pieces
    0.00 €  / *
    Add to a list
    Add to a list
  • FZ537PB

    Push Button Insert for sealing handle lock univers FZ537
    0.00 €  / *
    Add to a list
    Add to a list

Technical properties

Dimen­sions
  • Height
    950 mm
  • Width
    300 mm
  • Depth
    275 mm
  • Thick­ness of side­wall
    1.50 mm
Safety
  • Ingress Protec­tion (IP) class
    IP55
  • Protec­tion class
    Isol­a­tion class I
  • Locking type
    Without lock
  • Impact resist­ance IK
    IK10
Equip­ment
  • Number of section in width
    1
  • Number of flange plate open­ings
    2
  • Number of rows
    6
Install­a­tion, mounting
  • Mounting on
    Wall mounting
  • Suit­able for outdoor usage
    No
Mater­ials
  • Colour
    Light grey
  • RAL code
    7035
  • Treat­ment
    Powder coated
  • Material
    Steel
  • Surface finish
    Mat
Cover, door
  • Number of cabinet doors
    1
  • Number of locks
    1
  • Door/­cover is trans­parent
    No
Elec­tric current
  • Rated current
    800 A
Voltage
  • Nominal voltage
    690 - 690 V

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

Certifications and documents

REACH declaration FR61E (english)
PDF
103,10 kB
RoHS declaration FR61E (english)
PDF
103,84 kB

Downloads

  • Product image

    Image FR61E | Hager

    Product Image FR61E

  • Declaration of conformity

    Image EU Declaration of Conformity | Hager

    EU Declaration of Conformity

    Declaration of conformity en-GB 2025-03-14

    PDF
    684,89 kB
    Image EU Declaration of Conformity | Hager

    EU Declaration of Conformity

    Declaration of conformity en-GB 2025-03-14

    PDF
    717,48 kB
