    • Home
    • Catalogue
    • FR01E
    EAN
    3250610701638
    Packaging
    1 Piece

    Steel Steel enclosure, Univers, IP55, CL1, 1550x300x275 mm FR01E

    Phase out product: please contact your electrical wholesaler for availability

    Follow-up products :

    FR02E

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Steel Steel enclosure, Univers, IP55, CL1, 1550x300x275 mm

    FR01E

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    Download the data sheet

    Complete your system

    Optional accessories

  • See more (16)
    • Mounting accessories 1 products available
    • Compon­ents for wiring, cable entry and cable fixing 1 products available
    • Compon­ents for arrange­ment/baying system 1 products available
    • Lock system 6 products available
    • Gland plate for enclosure 1 products available
    • Docu­ment holder 2 products available

    Complete your system

    • Mounting accessories
    • Compon­ents for wiring, cable entry and cable fixing
    • Compon­ents for arrange­ment/baying system
    • Lock system
    • Gland plate for enclosure
    • Docu­ment holder
    • DIN rail
    • Base/­base element
    • Cable gland
    • Insert for lock system
    • FZ829

      Wall fixation lugs, Univers
      €0.00  / *
    • FZ771A

      Adapter for vertical connection of 300mm wide FR/FS enclosures
      €0.00  / *
    • FZ721A

      Horizontal coupling kit, Univers, L275 mm
      €0.00  / *
    • FZ537

      Rotary and sealing handle lock, Univers
      €0.00  / *
    • FZ519

      Euro-profile cylinder 405 for swing lever FZ537
      €0.00  / *
    • FZ506

      Euro-profile cylinder 1242E for swing lever FZ537
      €0.00  / *
    • MES-PHZ4K8

      Profile half cylinder square 8mm
      €0.00  / *
    • MES-PHZ3K7

      Profile half cylinder triangular 7mm
      €0.00  / *
    • MES-PHZDB3

      Profile half cylinder double-bit 3mm
      €0.00  / *
    • FZ422

      Metal cable entry plate CL1, Univers, IP55 230x120 mm
      €0.00  / *
    • FZ794

      Document holder, transparent, DIN A4, adhesive
      €0.00  / *
    • FZ757A4

      Document holder, glued, DIN A4
      €0.00  / *
    • UN10A

      Carrier rails, univers, for enclosures ex depth = 160mm, L = 1500mm, 2 pieces
      €0.00  / *
    • FZ641A

      Plinth, Univers, H200 300x275 mm
      €0.00  / *
    • VZ020M

      Cable gland, vector, IP65, M20, plastic
      €0.00  / *
    • FZ537PB

      Push Button Insert for sealing handle lock univers FZ537
      €0.00  / *

    Technical properties

    Dimen­sions
    • Height
      1,550 mm
    • Width
      300 mm
    • Depth
      275 mm
    • Thick­ness of side­wall
      1.50 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP55
    • Protec­tion class
      Isol­a­tion class I
    • Locking type
      Without lock
    • Impact resist­ance IK
      IK10
    Equip­ment
    • Number of section in width
      1
    • Number of flange plate open­ings
      2
    • Number of rows
      10
    Install­a­tion, mounting
    • Mounting on
      Wall mounting
    • Suit­able for outdoor usage
      No
    Mater­ials
    • Colour
      Light grey
    • RAL code
      7035
    • Treat­ment
      Powder coated
    • Material
      Steel
    • Surface finish
      Matt
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      1
    • Door/­cover is trans­parent
      No
    • Cabinet door type
      Single door
    Elec­tric current
    • Rated current
      800 A
    Voltage
    • Nominal voltage
      690 - 690 V

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

    PEP - FWB enclosure,UNIVERS range, 5-rows 180 modules (English)
    PDF
    49,47 MB
    REACH declaration FR01E
    PDF
    RoHS report FR01E
    PDF

    Downloads

    • Product image

      Image FR01E | Hager

      Product Image FR01E

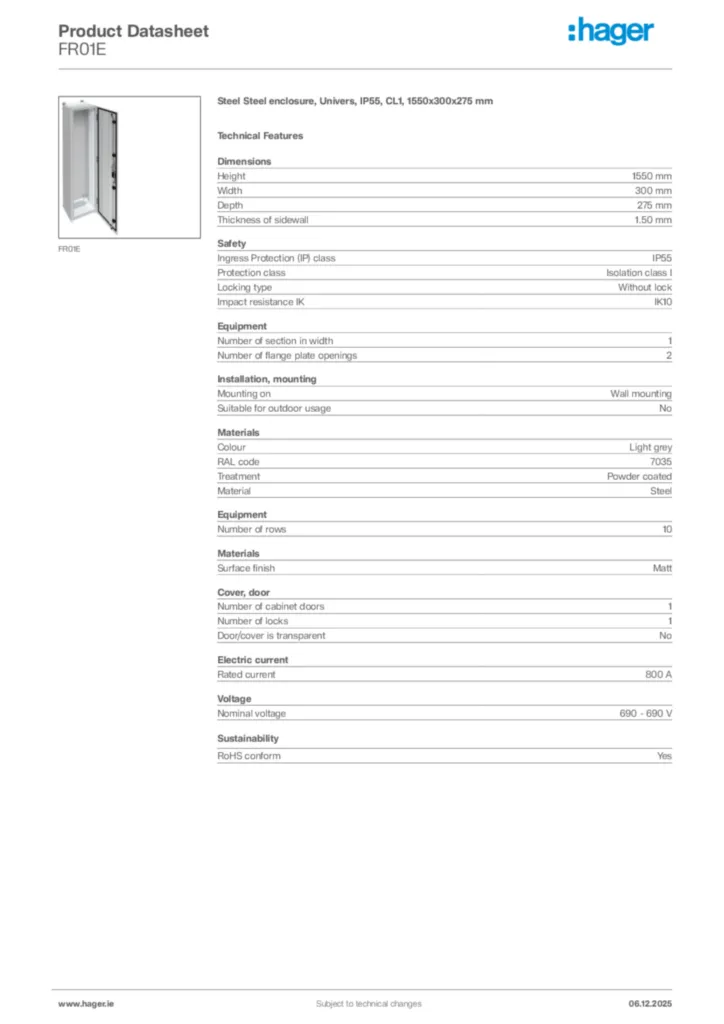

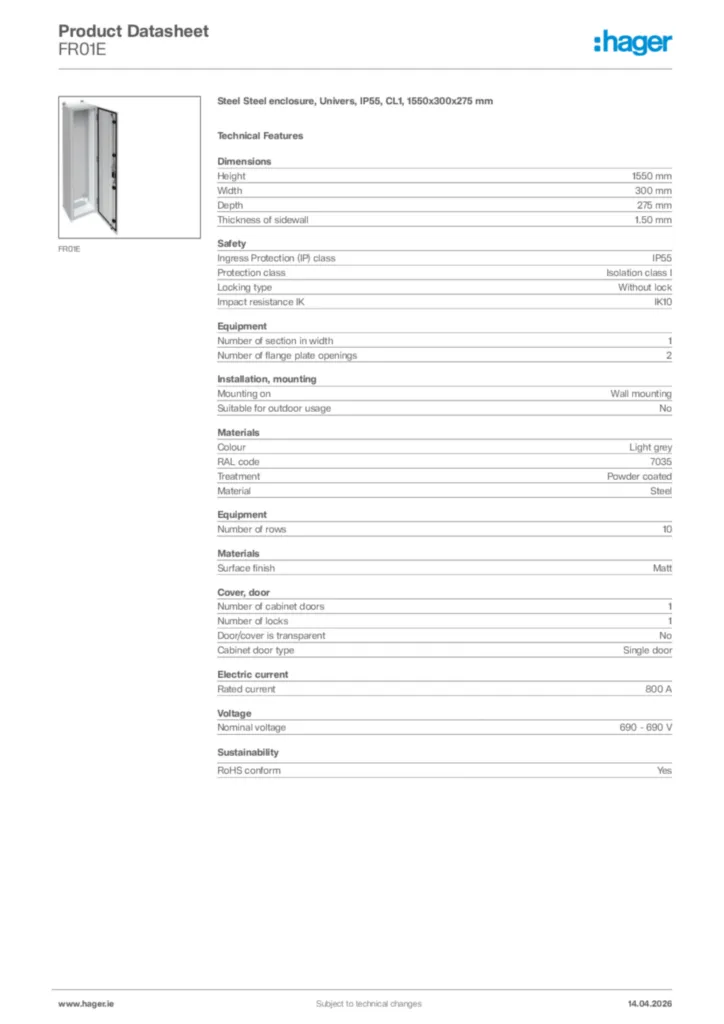

    • Product datasheet

      Image Hager Product data sheet FR01E | Hager

      Hager Product data sheet FR01E

      Steel Steel enclosure, Univers, IP55, CL1, 1550x300x275 mm

      PDF

    • Declaration of conformity

      Image EU Declaration of Conformity | Hager

      EU Declaration of Conformity

      Declaration of conformity en-GB 2026-03-06

      PDF
      709,43 kB
      Image EU Declaration of Conformity | Hager

      EU Declaration of Conformity

      Declaration of conformity en-GB 2026-06-03

      PDF
      741,92 kB
