enclosure, univers, IP65, CL 2, 850 x 600 x 300mm, Polyester

FL52S

FL52S - enclosure, univers, IP65, CL 2, 850 x 600 x 300mm, Polyester
  • Distri­bu­tion systems

enclosure, univers, IP65, CL 2, 850 x 600 x 300mm, Polyester FL52S

EAN
3250612550234
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products

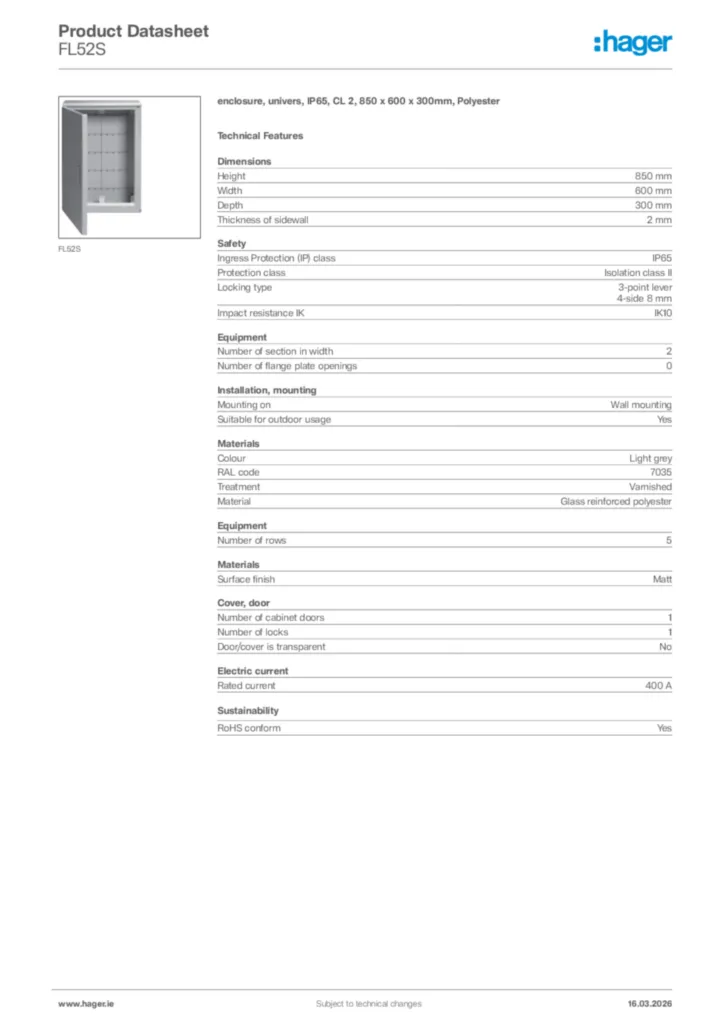

Download the data sheet

Complete your system

Optional accessories

  • Vent­il­a­tion plate 6 products available
  • Base/­base element 1 products available
  • Lock system 2 products available
  • Accessor­ies/s­pare parts for earthing and light­ning 1 products available
  • Docu­ment holder 3 products available
  • See more 18 other products available

Complete your system

  • Vent­il­a­tion plate
  • Base/­base element
  • Lock system
  • Accessor­ies/s­pare parts for earthing and light­ning
  • Docu­ment holder
  • Mounting accessories
  • Mounting plate for distri­bu­tion board
  • DIN rail
  • Insert for lock system
  • FL220Z

    Air grill, quadro.system, 150x150 mm IP54
    0.00 €  / *
    Add to a list
    Add to a list
  • FL224Z

    Air grill, quadro.system, 250x250 mm IP54
    0.00 €  / *
    Add to a list
    Add to a list
  • FL226Z

    Air grill, quadro.system, 325x325 mm IP54
    0.00 €  / *
    Add to a list
    Add to a list
  • FL230Z

    Fan filter, quadro.system, 20 W 150x150 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL234Z

    Fan filter, quadro.system, 32 W 250x250 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL236Z

    Fan filter, quadro.system, 67 W 325x325 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL960A

    Plinth, Orion.Plus, H150 600x300 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FZ502

    Lock, univers, triangular 7mm, with 1 key
    0.00 €  / *
    Add to a list
    Add to a list
  • FZ507

    Lock, univers, T-handle with cylinder Nr.E1242, with 2 keys, IP 5-6, sealable
    0.00 €  / *
    Add to a list
    Add to a list
  • FL874A

    Ground wire kit, Orion.Plus
    0.00 €  / *
    Add to a list
    Add to a list
  • FZ757A4

    Document holder, glued, DIN A4
    0.00 €  / *
    Add to a list
    Add to a list
  • FZ757A5

    Document holder, adhesive, DIN A5
    0.00 €  / *
    Add to a list
    Add to a list
  • FZ757M

    Document holder, magnetic, DIN A4
    0.00 €  / *
    Add to a list
    Add to a list
  • FL863Z

    Wall ins. fixing brackets, Orion.Plus polyester
    0.00 €  / *
    Add to a list
    Add to a list
  • FL410A

    Steel mounting plate, Orion.Plus, 580x343 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL411A

    Steel mounting plate, Orion.Plus, 580x543 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL412A

    Steel mounting plate, Orion.Plus, 630x343 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL413A

    Steel mounting plate, Orion.Plus, 630x443 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL415A

    Steel mounting plate, Orion.Plus, 780x443 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL416A

    Internal,metal mounting plate,orion.plus,930x393x2mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL417A

    Internal,metal mounting plate,orion.plus,930x693x2mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL418A

    Internal,metal mounting plate,orion.plus,1230x543x2mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL419A

    Internal,metal mounting plate,orion.plus,1230x693x2mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL423A

    Insulated mounting plate, Orion.Plus, 285x245 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL424A

    Insulated mounting plate, Orion.Plus, 435x245 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL425A

    Insulated mounting plate, Orion.Plus, 435x345 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL426A

    Insulated mounting plate, Orion.Plus, 585x345 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL427A

    Insulated mounting plate, Orion.Plus, 585x445 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • FL429A

    Insulated mounting plate, Orion.Plus, 735x545 mm
    0.00 €  / *
    Add to a list
    Add to a list
  • U82A

    DIN rail,univers, 7,5 mm, depth-adjustable until 32,5mm, 11 modules wide (200mm)
    0.00 €  / *
    Add to a list
    Add to a list
  • FZ517

    Key lock insert, Quadro5, 6 mm
    0.00 €  / *
    Add to a list
    Add to a list

Technical properties

Dimen­sions
  • Height
    850 mm
  • Width
    600 mm
  • Depth
    300 mm
  • Thick­ness of side­wall
    2 mm
Safety
  • Ingress Protec­tion (IP) class
    IP65
  • Protec­tion class
    Isol­a­tion class II
  • Locking type
    3-point lever, 4-side 8 mm
  • Impact resist­ance IK
    IK10
Equip­ment
  • Number of section in width
    2
  • Number of flange plate open­ings
    0
  • Number of rows
    5
Install­a­tion, mounting
  • Mounting on
    Wall mounting
  • Suit­able for outdoor usage
    Yes
Mater­ials
  • Colour
    Light grey
  • RAL code
    7035
  • Treat­ment
    Varnished
  • Material
    Glass rein­forced poly­ester
  • Surface finish
    Mat
Cover, door
  • Number of cabinet doors
    1
  • Number of locks
    1
  • Door/­cover is trans­parent
    No
Elec­tric current
  • Rated current
    400 A

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

Certifications and documents

REACH declaration FL52S (english)
PDF
103,10 kB
RoHS declaration FL52S (english)
PDF
103,84 kB

Downloads

  • Product image

    Image FL52S | Hager

    Product Image FL52S

  • Declaration of conformity

    Image EU Declaration of Conformity | Hager

    EU Declaration of Conformity

    Declaration of conformity en-GB 2025-03-14

    PDF
    684,89 kB
    Image EU Declaration of Conformity | Hager

    EU Declaration of Conformity

    Declaration of conformity en-GB 2025-03-14

    PDF
    717,48 kB
More documentation
